Carrier VECTOR 1550 Series User Manual

62-61753-21
11-1
SECTION 11 -
WIRING

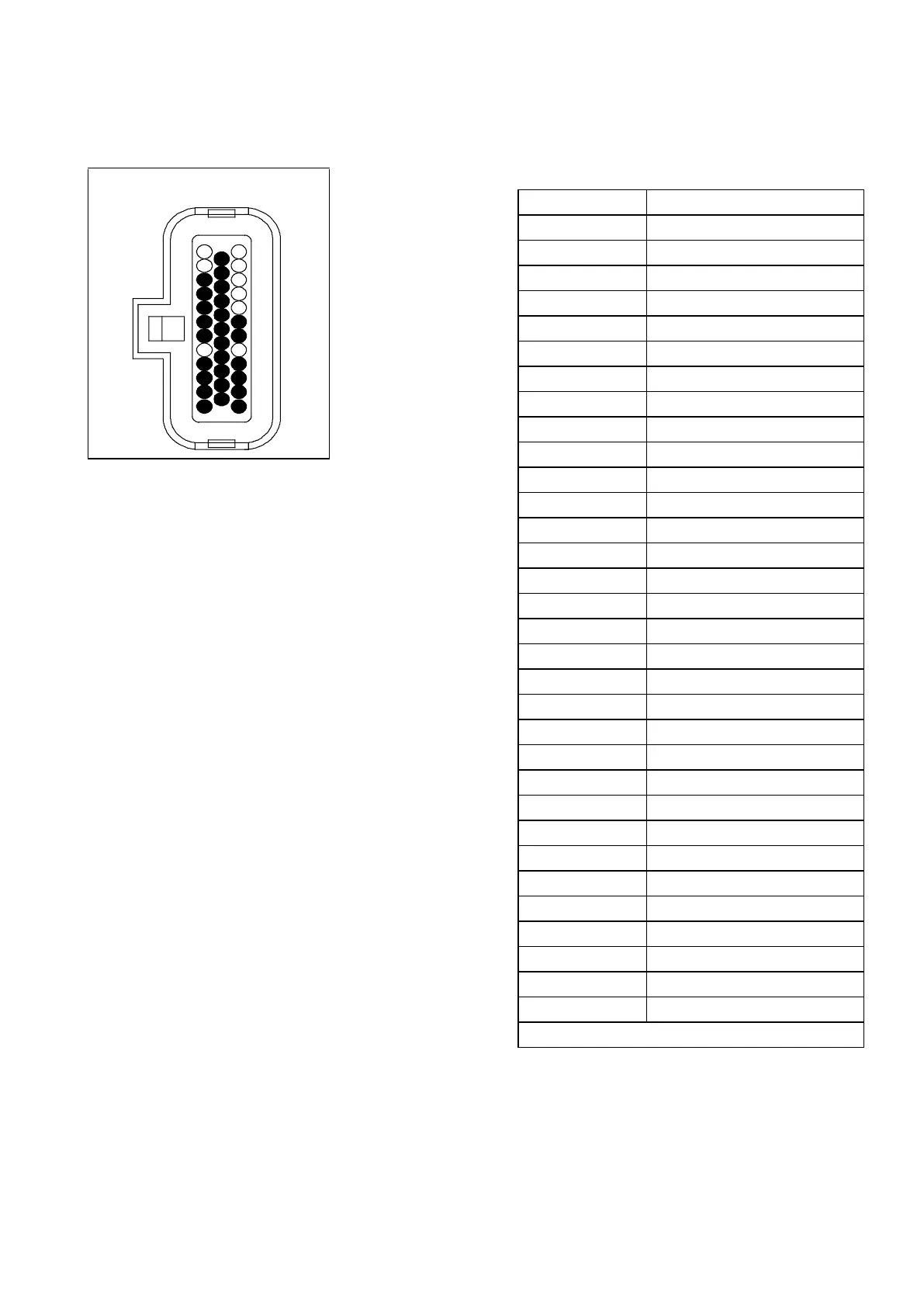

11.1 HARNESS PLUG WIRING
1MP -- NATURAL
1
12
24
35
Terminal
Component
3
OC-E (SN-1)
4
OC-H (SN-2)
5 (16) (30)
CDP-C
6 (17)
EVOP-C
7 (18)
ENCT-A
9 (20)
CDT-A
10 (19)
CST-A
11 (22)
AAT-A
12 (23)
RAT-A
13 (35)
SAT-B
14
OC-F,G,H
15 (29)
CSP-A/SP-34
16 (5) (30)
CDP-A
17 (6)
EVOP-A
18 (7)
ENCT-B
19 (10)
CST-B/SP-32
20 (9)
CDT-B
21 (34)
DTT-B
22 (11)
AAT-B
23 (12)
RAT-B
29 (15)
CSP-C
30 (5) (16)
CDP-B/SP-37
32
EVOT-A
33
OC-J (SN-3)
34 (21)
DTT-A
35 (13)
SAT
Unused terminals: 1, 2, 8, 24, 25, 26, 28 & 31
