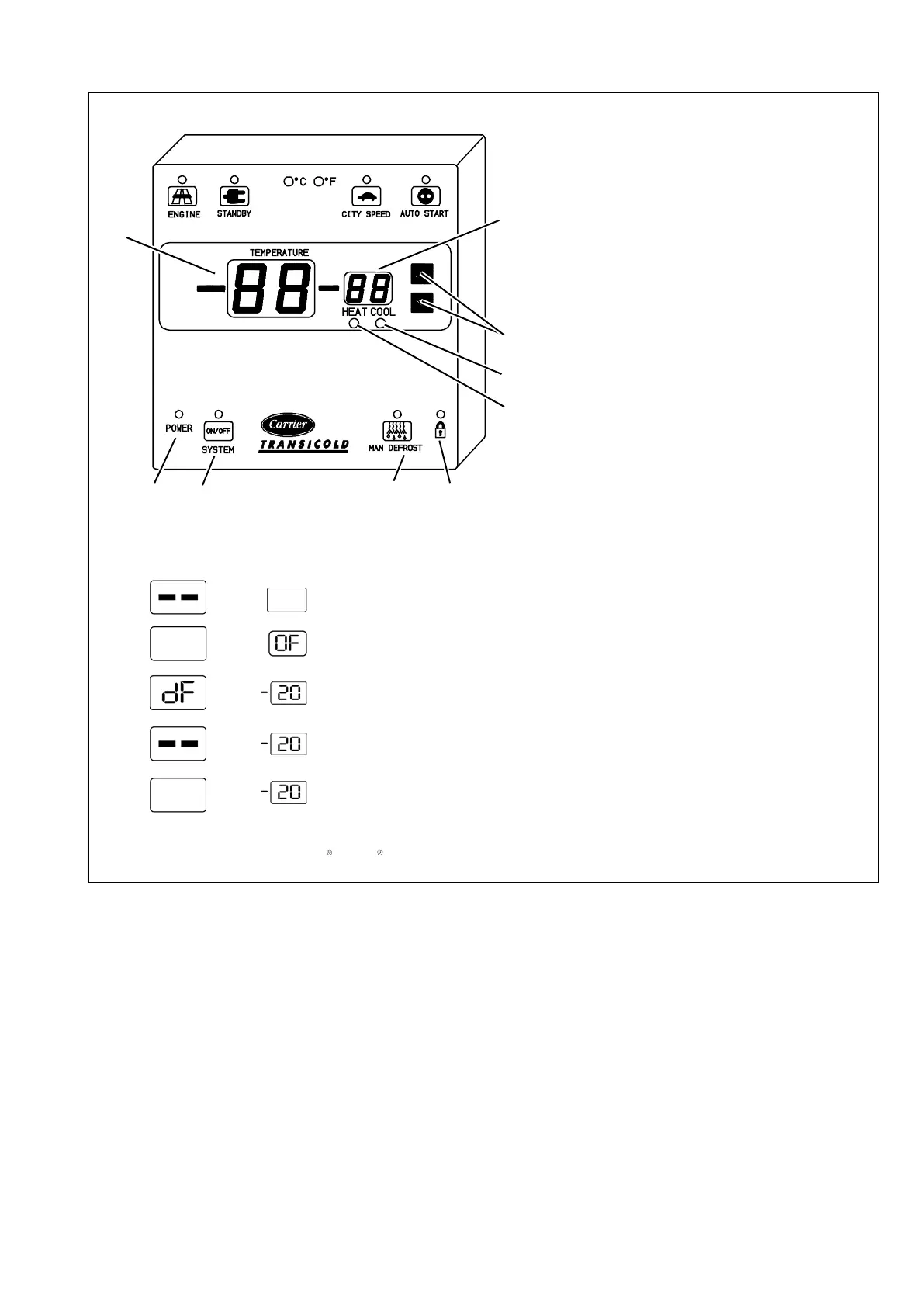

3.19.2 Remote Control Panel
1 Control panel power on LED
2 System ON/OFF key
3 Manual defrost key
4 Control panel lock LED
5 HEAT mode LED
6 COOL mode LED
7 Up and down arrow keys
8 Set point display
9 Temperature display in C° or °F
4321
8
5
6
9
7
WAITING FOR COMMUNICATION WITH MICROPROCESSOR
UNIT WAS TURNED OFF VIA REMOTE CONTROL
UNIT IN DEFROST MODE
TEMPERATURE SENSOR MALFUNCTION
TEMP.
DISPLAY
SET POINT
DISPLAY
NOTE:
TEMPERATURE DISPLAY (°C OR °F) IS DEPENDENT ON MICROPROCESSOR CONFIGURATION
P1
DISPLAYED WHEN SETTING PRE--SET SETPOINTS
The unit may be fitted with an optional remote control
panel. The panel displays refrigerated compartment
set point, compartment temperature and operating
mode (heat, cool or defrost). The set point may be set
and the unit may be started and stopped using the
remote panel.
This compact panels can be mounted to suit the indi-
vidual operator’s preferences - in the cab, on the front
bulkhead, or in the refrigerated compartment (including
in the wall itself).
The remote control panel can be used to:
Turn the unit on or off:
Check refrigerated compartment temperature
Check and change set point
Initiate manual defrost
Check mode of operation
