Carrier VECTOR 1550 Series - Page 266

62-61753-21
11-4

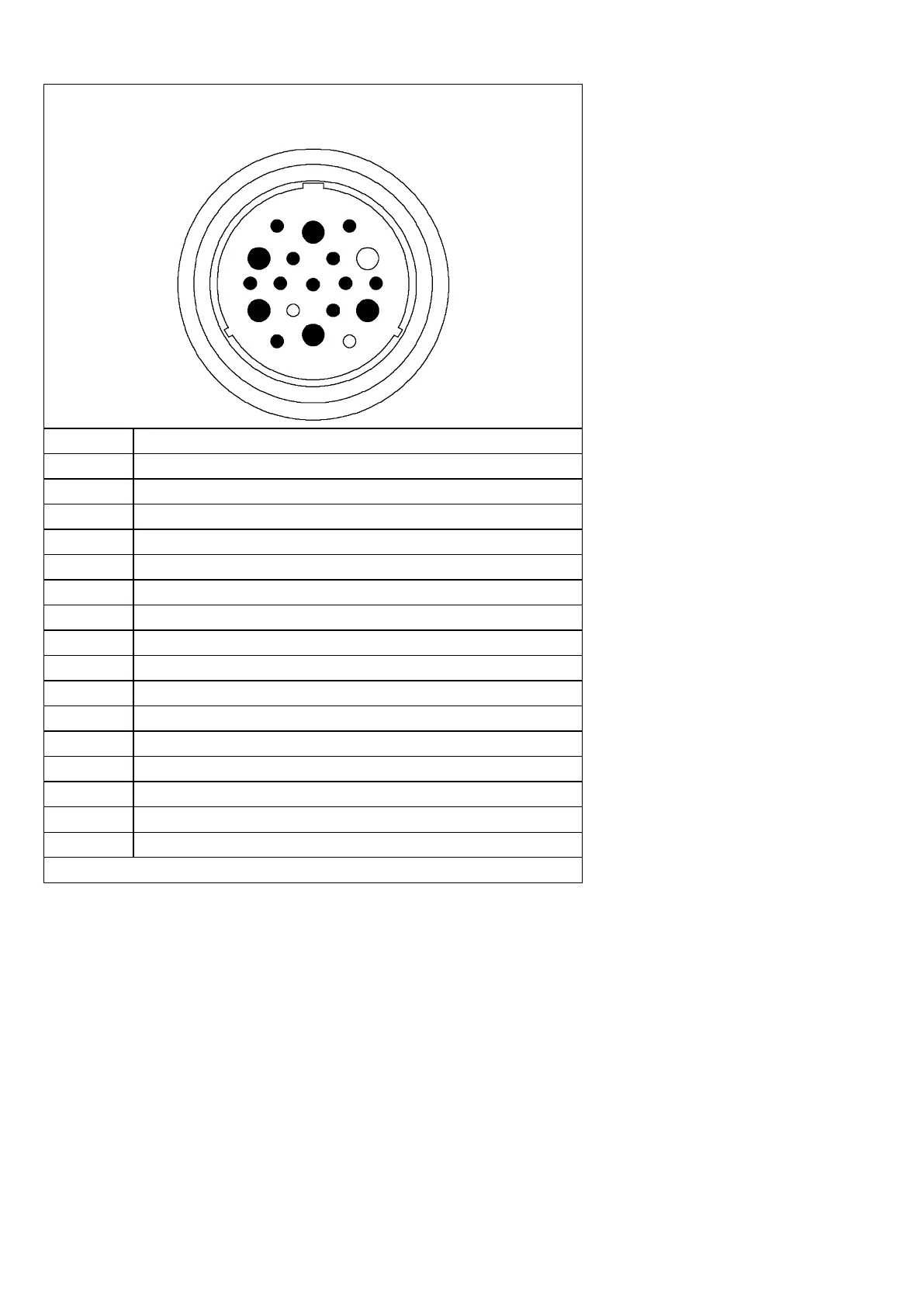

HC Plug
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Terminal
Component
1
OGF-OV/SP-34
2
MPQC-3/SCS-A
3
MPQC-1/BTY(+)
4
MPQC-4/SP-30
6
OC-A/GROUND
7
RCR-2/OC-B
8
SSR-87/SS
9
2MP-2/LS-1
11
SP-33/4MP-1/CCONR-1
12
F5-B/SSC/BTY(+)
14
GRD1/MPQC-2
15
GRD/HC-15
16
BTYC-A/SP-1
17
RS-2/OC-J/OC-K
18
MPQC-9/SP-35
19
2MP-26/GENCONR-1/PSCONR-1
Unused terminals: 5, 10 & 13
