Carrier VECTOR 1550 Series - Page 27

62-61753-21
2-3
7
9
10
13
2
5
15
3
1
6
12
4
14
(LOCATION)
8
11
19
16
17
18
20
22
21
23
24
1. Condenser/Radiator
2. Defrost Air Switch (DAS)
3. Receiver And Sight Glasses
4. Liquid Line Service Valve
5. Compressor Suction Modulation Valve (CSMV)
6. Filter Drier
7. Liquid Injection Valve (LIV)
8. Economizer Heat Exchanger
9. Economizer Solenoid Valve (ESV)
10. Compressor Discharge Pressure Transducer (CDP)
11. Thermal Expansion Valve (Economizer)
12. Unloader Solenoid Valve (USV)
13. High Pressure Switch (HP1)
14. Compressor Suction Temperature Sensor (CST)
15. Discharge Service Valve
16. Compressor Discharge Temperature Sensor (CDT)
17. Compressor Suction Pressure Transducer (CSP)
18. Suction Service Valve
19. Compressor (C)
20. Model/Serial Number Nameplate
21. Economizer Connection
22. Power Supply Receptacle (PSR)
23. Condenser Fans And Motors (CDM1 & CDM2)
24. Ambient Air Temperature Sensor (AAT)

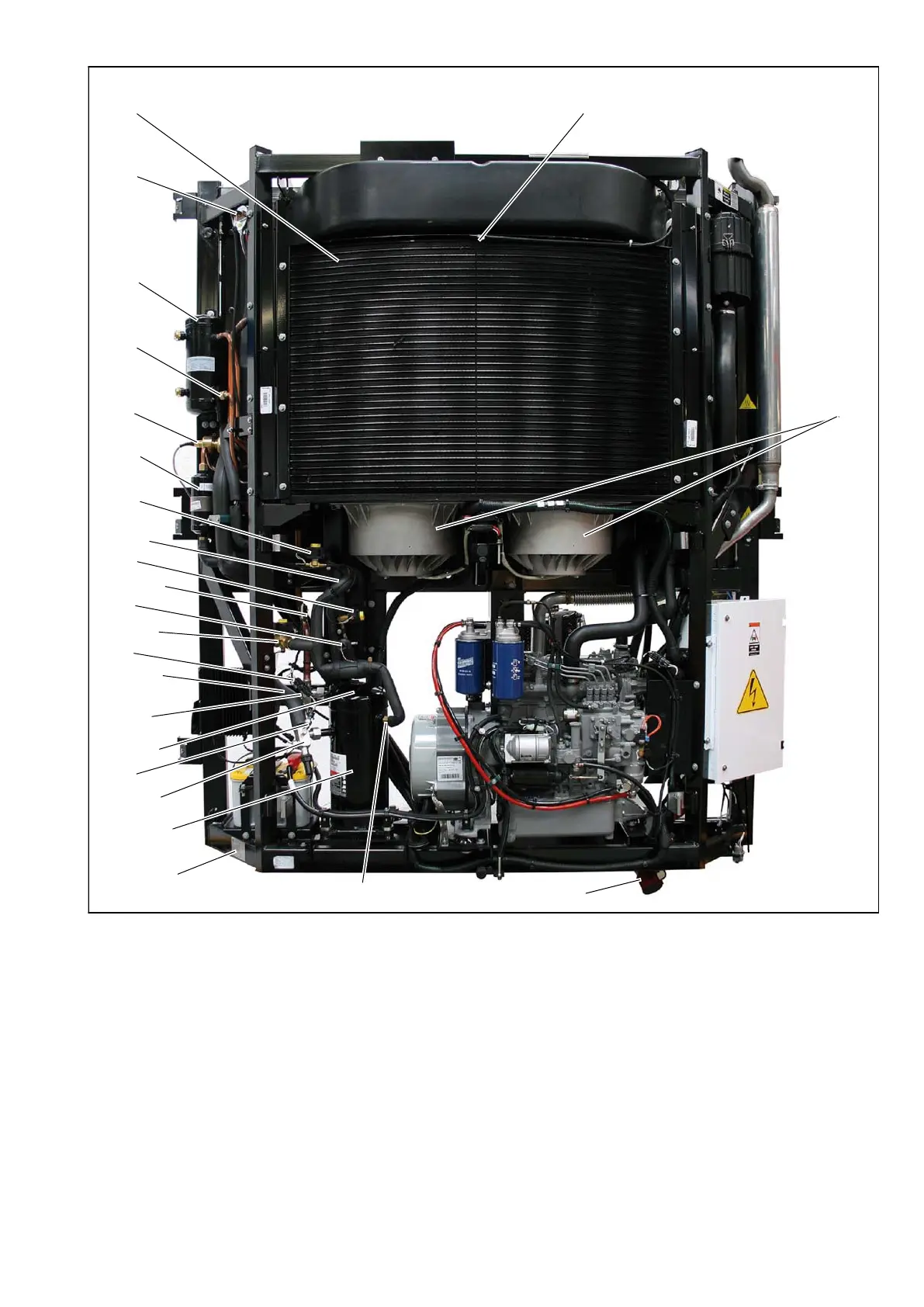

Figure 2-1. Vector 1550 Front View - Refrigeration System Components
