62-61753-21
1
9
7
4
3
12
11
10
6
2
5
8
13
18
17
16
15
14
19
1. Supply air temperature sensor (SAT)
2. Evaporator fan and motor service access
3. Evaporator fans and motors (EVM1 & EVM2)
4. Evaporator High Temperature Switch (EVHTS)
5. Defrost termination temperature sensor (DTT)
6. Compressor Suction Modulating Valve
7. Return air temperature sensor (RAT) - Located on grill
8. Evaporator outlet temperature sensor (EVOT)
9. Evaporator outlet pressure transducer (EVOP)
10. Drain pan heater (HTR2)
11. Heater Connection Service Access
12. Evaporator expansion valve (EVXV)
13. Electric heaters (HTR1)
14. Electric heaters (HTR3)
15. Evaporator Coil
16. Nozzle cover
17. Defrost Air Switch (DAS)
18. High Connection (Red)
19. Low Connection (Clear)

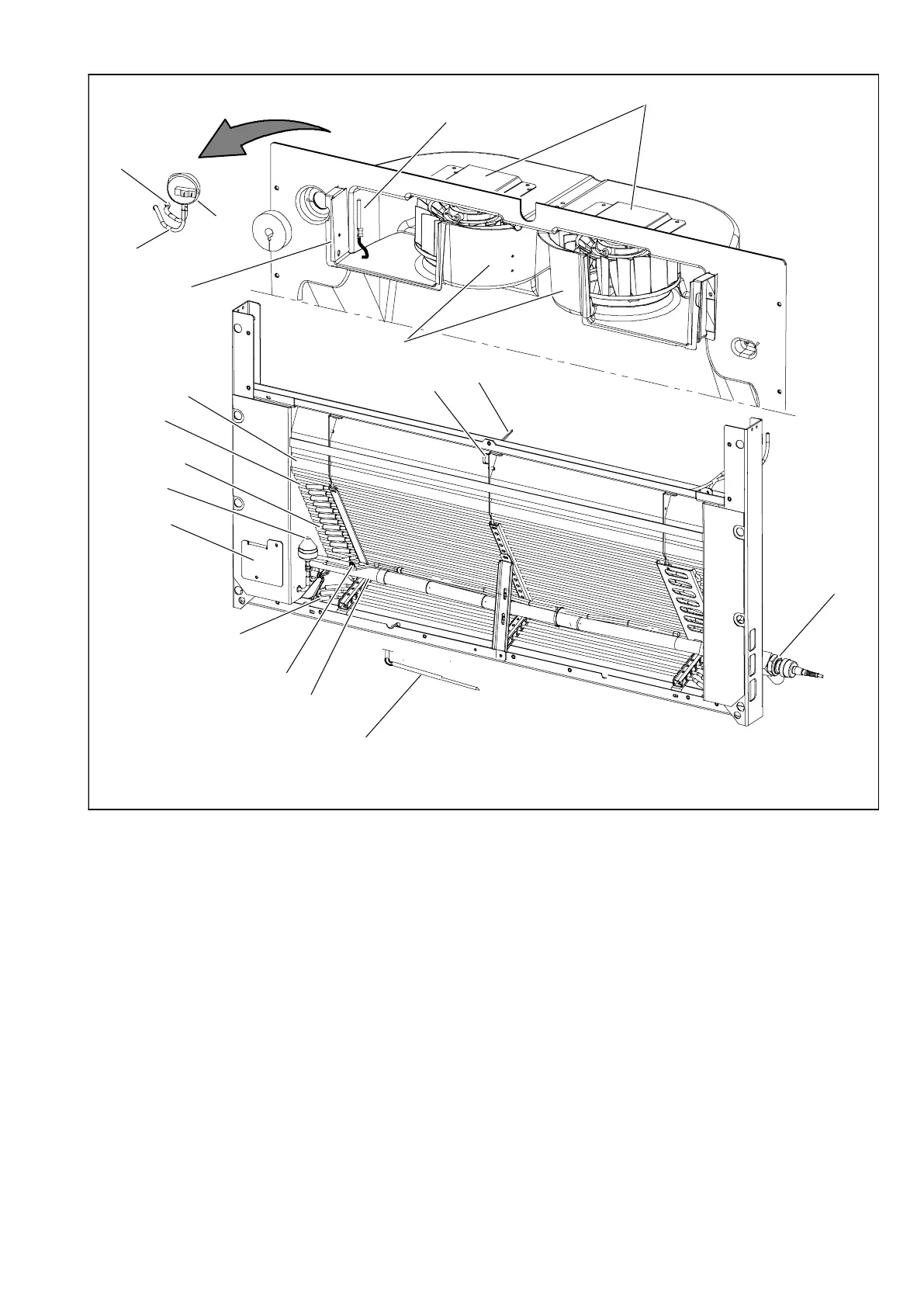

Figure 2-2. Evaporator Section - Grille Removed
