Case IH AFS Pro 700 - Radar calibration for generic tractor

3-SETUP
Radarcalibration-generictractor

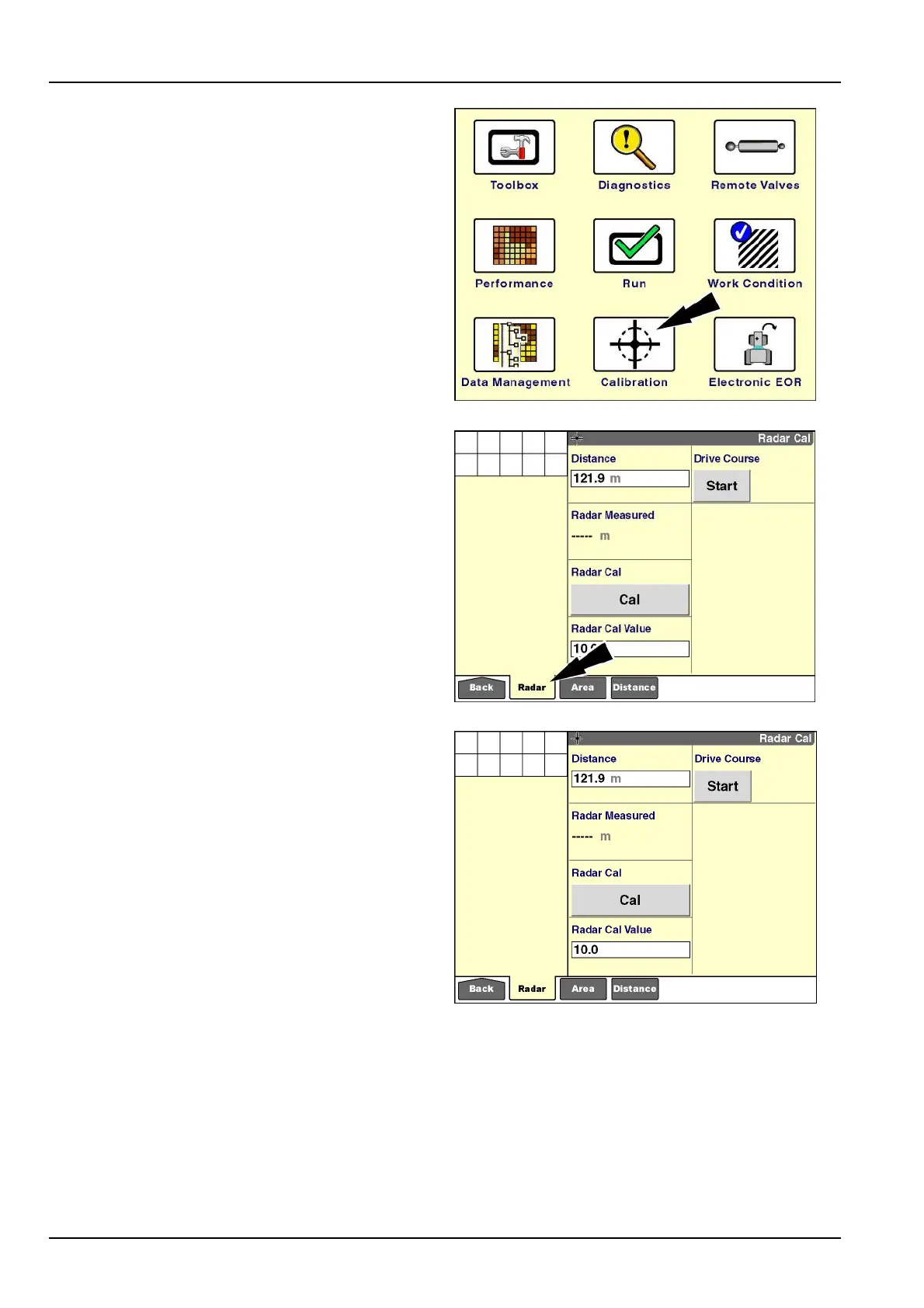

Onthe“Home”screen,pressthe“Calibration”icontoac-
cessthe“Calibration”screens.
RCIL11DSP108BBG1
Pressthe“Radar”iconinthenavigationbartodisplaythe
“RadarCal”screen.
NOTE:The“RadarCal”screenisnotavailableifradaris
notenabledonthe“Vehicle”screen(Home>Toolbox>
Vehicle).
RCIL11DSP378BBG2
Toperformradarcalibration:
1.Measureacoursewithadistanceofatleast121.9m
(400ft)andplaceamarkeratthebeginningandend
ofthemeasuredcourse.
A121.9m(400ft)courseisshowninthisprocedure.
Thisprocedureshowsmetricmeasurement.IfU.S.
Standardunitswereselected,screenvalueswillbein
feet.
NOTE:Whendeterminingcourselength,ameasuring
tapeispreferredoverameasuringwheelbecausea
measuringtapeprovidesgreateraccuracy.
RCIL11DSP378BBG3
