Case IH AFS Pro 700 - Fault Archive screen

8-DIAGNOSTICS
"FaultArchive"screen
Pressthe“Fault”iconinthenavigationbartodisplaythe
“FaultArchive”screen.
Bydefault,thefaultarchiveforthedisplayisshown.
Displayfaultcodesusealetterprextoidentifythe
sourceofthereport:
•
“AG”forthe“Autoguidance”application
•
“PF”forthe“PrecisionFarming”application(including
GPSreceiverrelateditems)
•
“NAV”fortheNAVIInavigationcontroller
Thevehicle,andinsomecasestheimplement,deter-
mineswhichcontrollersreportfaultsthroughthisscreen.
Thedisplayfaultarchiveisalwaysavailableonthis
screen.

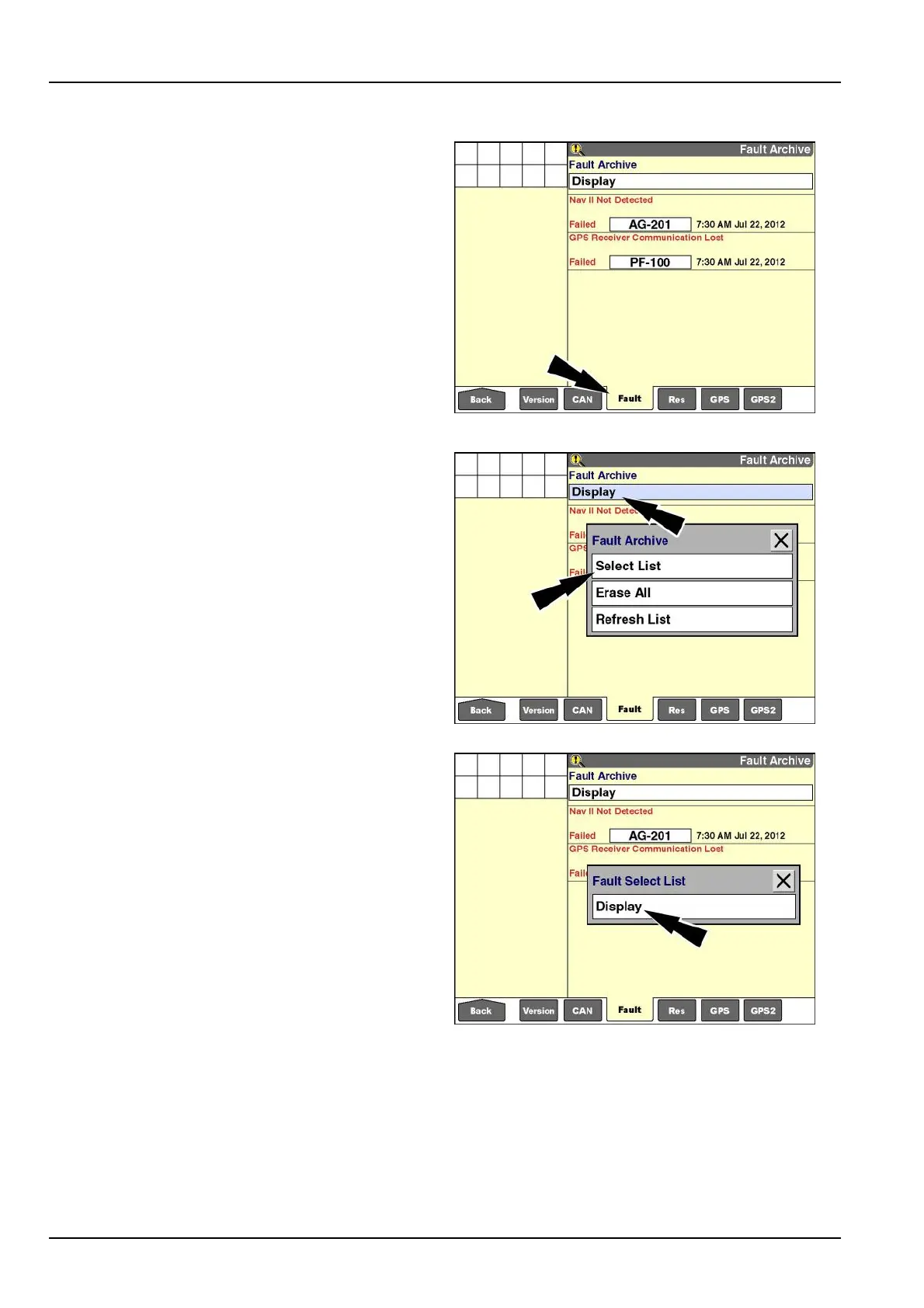

RCIL11DSP154BBG1
Toviewthefaultarchiveforothercontrollers,pressthe
“FaultArchive”windowtoaccessthepop-upoptionswin-
dow.
Press“SelectList”todisplayalistofavailablefault
archives.
RCIL11DSP156BBG2
Thewindowshowswhichfaultarchivesareavailableby
controllername.Ifonly“Display”islisted,noothercon-
trollersonthevehiclereportfaultstothedisplaythrough
thisscreen.
Ifadditionalcontrollersarelisted,pressacontrollerto
viewitsarchive.Thescreenrefreshestodisplaythe
archiveforthatcontroller.
RCIL11DSP158BBG3
8-4
