2-ICONSANDWINDOWS
Buttons
Abuttonsisathree-dimensionaliconthat,whenpressed,
performstheactionthatisdescribedbythetextorgraphic
labelonthebutton.
Commontextbuttonsinclude“OK,”“Yes,”“No,”“None,”
“Enter,”“Start,”and“Stop.”
CommoniconbuttonsincludeClose”
,“Select”,and
arrows(up,down,left,right).
Buttons,althoughpresentonascreen,arenotavailable
whentheyaredimmed.Adimmedbuttonindicatesthat
somethingelseisrequiredtoperformtheaction.Thesoft-
wareoperatingguidefortheselectedeldexplainsthe
stepsrequiredtocompletetheactionthatisassociated
withthebutton.

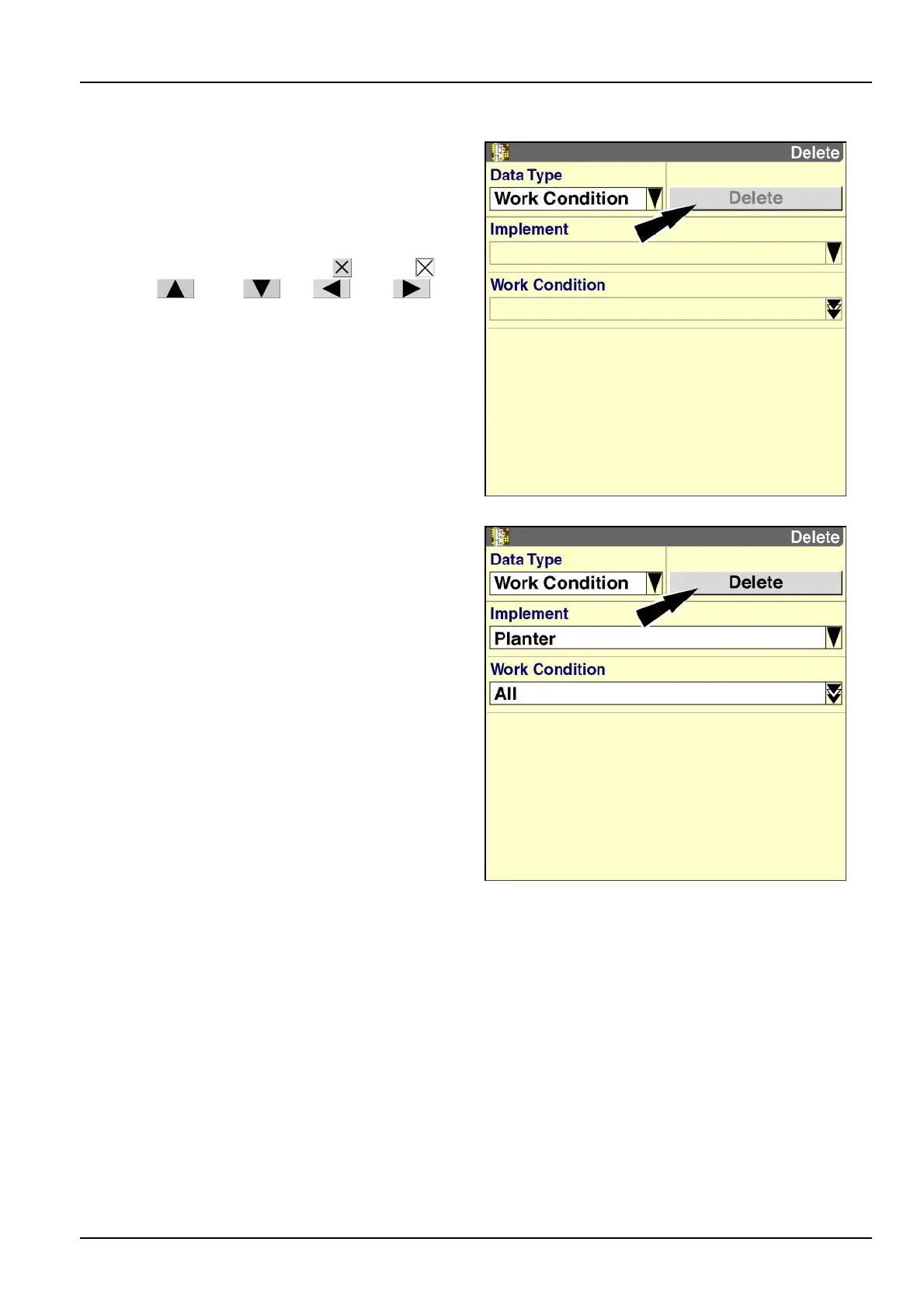

RCIL11DSP096BBG1
Whenalloftheprerequisitesaremet,thebuttonisactive
andperformstheactionthatitstextorgraphiclabelde-
scribes.
RCIL11DSP097BBG2
