Case IH AFS Pro 700 - PRECISION FARMING APPLICATION: GPS AND RESOURCE STATUS; GPS Status screen

3-SETUP
"PRECISIONFARMING"APPLICATION:GPSANDRESOURCESTATUS
Introduction
Thischaptercontinuesinformationonthe“PrecisionFarming”applicationandexplains:
•
The“GPSStatus”screen
•
The“ConstellationMap”screen
•
The“GPSReceiver”screen
•
The“ResourceStatus”screen
Onthe“Home”screen,pressthe“Diagnostics”iconto
accessthe“Diagnostics”screens.
RCIL11DSP108BBG1
"GPSStatus"screen
ThetypeofcorrectionenabledontheGPSreceiverdeter-
minesthecontentofthe“GPSStatus”screen.Forexam-
ple,theconvergence“Reset”buttonisonlypresentwhen
thereceiverisenabledforHP/XP/G2orRTX™correc-
tion.
The“GPSStatus”screencontainsmultiplereporting
windowsfor:
•
GPSreceiverandsignalstate
•
Vehiclepositionandheading
•
Subscriptionstatus,ifapplicable
•
Securitystatus,ifapplicable
Thewindowsaregroupedonthe“GPSStatus”screenfor
easyoperatoraccess.Mostwindowscanbeaddedtoany
“Run”screenforoperatorconvenience.

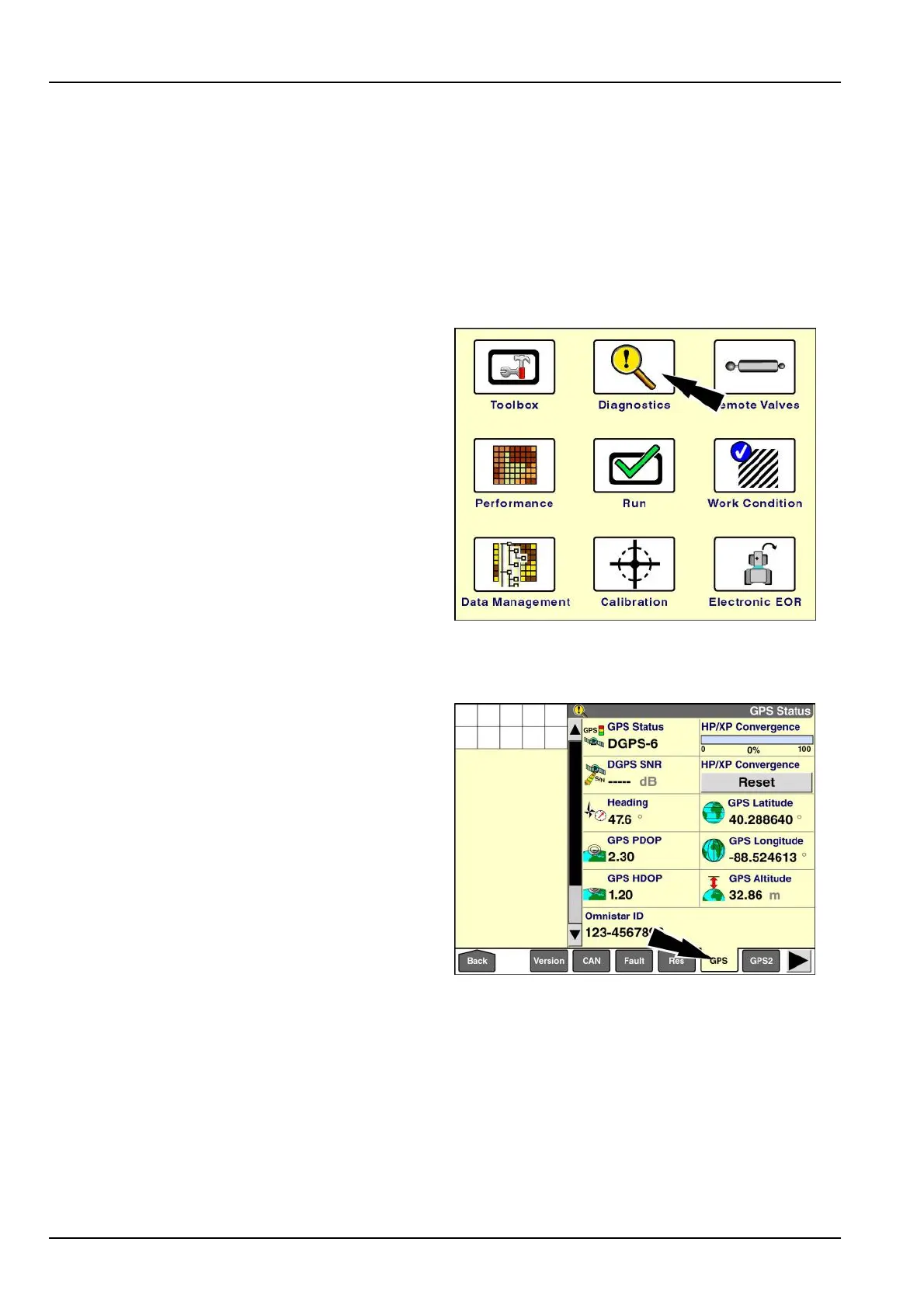

Pressthe“GPS”icononthenavigationbartodisplaythe
“GPSStatus”screen.
RAIL14DSP1594BA1
