8-DIAGNOSTICS
Eachfaultoccurrenceisdateandtimestamped,withthe
mostrecentfaultslistedrst.
Multipleoccurrencesofthesamefaultareconsideredone
uniquecodewithan”occurrencecount”thatisgreater
thanone.Faultsarestoredtoprovidearecordofpast
faulteventswhichmayhelptroubleshootacurrentprob-
lem.
NOTE:Ifallfaultscannotbeviewedonasinglescreen,a
scrollbarisaddedtothescreentoviewthefaultarchive
asneeded.
RCIL11DSP154BBG4

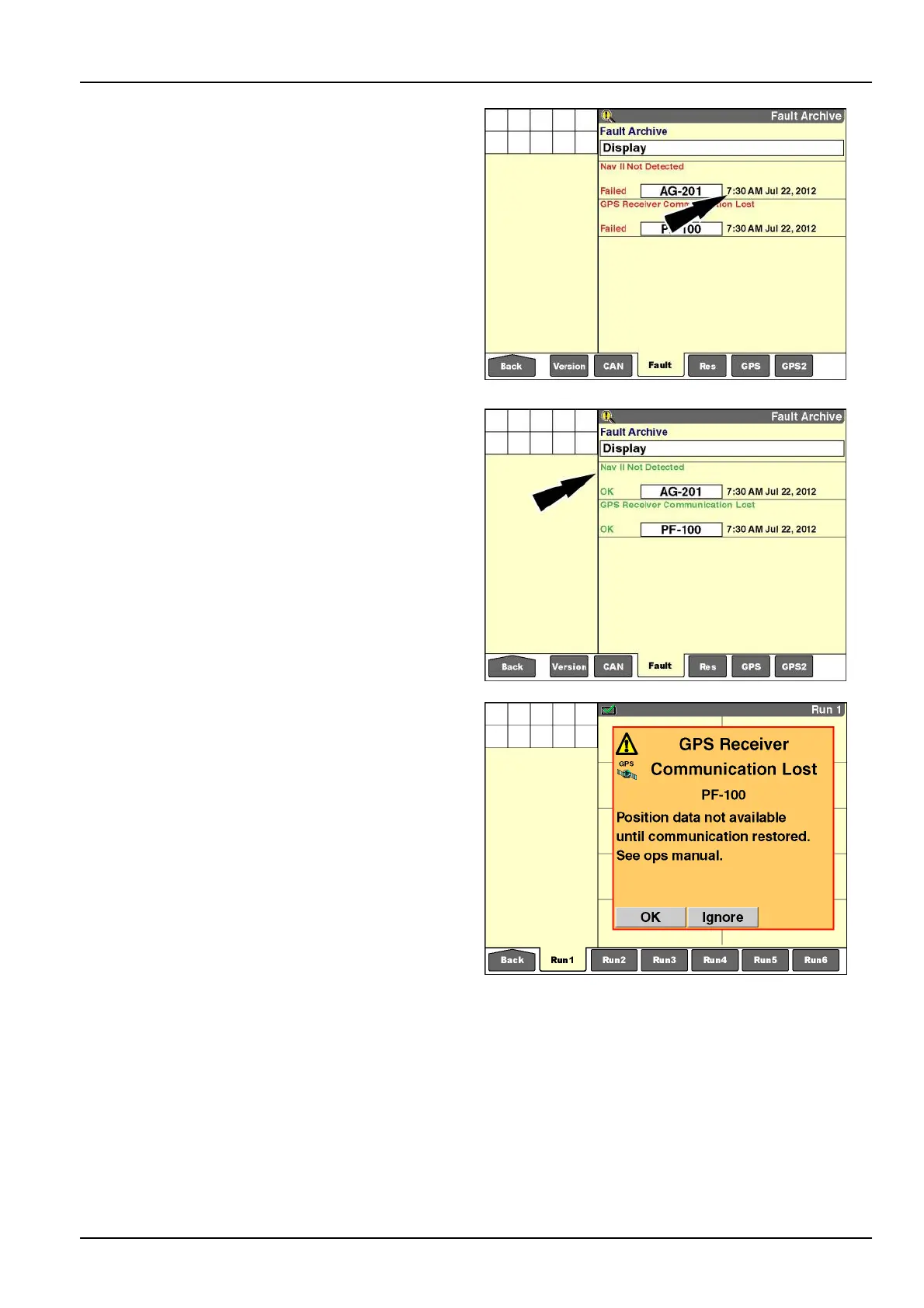

Thecolorofthefaulttextonthe“FaultArchive”screen
indicatesthestatusofthefault:
•
redforfaultsthatareactive
•
greenforpastfaultsthatareinactive
•
gray(dimmed)forfaultsthataresettobeignored
Pressingthe“OK”buttononthepop-upmessageleaves
faultdetectionfortheproblemenabled.Thepop-upmes-
sageredisplaysuntiltheproblemisresolved.Enabled
faultcodesarecolor-codedred.
Pressingthe“Ignore”buttononthepop-upmessagedis-
ablesfaultdetectionfortheproblem.Thefaultcondi-
tionremains,butnofurthermessagesdisplayuntilpower
tothedisplayiscycledOFFandthenONagainoruntil
thestatusismanuallychanged.Ignoredordisabledfault
codesarecolor-codedgray.
Ifafaultconditioniscorrected–self-resolvedorcorrected
bytheoperator,thefaultcodebecomesinactiveandis
color-codedgreen.
RCIL11DSP160BBG5
RCIL11DSP401BBG6
8-5
