Case IH AFS Pro 700 - Base station location planning

3-SETUP
Someplanningisneededtopicktheoptimallocationor
locationsforthebasestation(s)duringeldwork.Your
CaseIHdealerisavailabletoassistyouwithasitesurvey.
TheGPSantennaisThecomponentthatrequiresthe
mostattentionwhenpickinglocations.
Formaximumrepeatabilityandaccuracy:
•
installtheGPSantennaataheightandeldlocation
thatwillnotchangefromoneseasontothenext
•
ensurethattheGPSantennaislevel
TheRTKbroadcastantenna,mountedwiththesame
bracketastheGPSantenna,issecondinimportance
sinceitmustremainincommunicationwiththevehicle
throughouttheeld.ThelocationoftheGPSreceiver,
case,andbatterypowersupplyareamatterofconve-
nience.
Considerthesefactorswhenchoosingeldpositionsfor
thebasestation:
•
Thepositionmustbeawayfromvehicletrafcpatterns
topreventaccidentalcontact.
•
Thepositionmustberepeatable–easilylocatedfrom
seasontoseason,yeartoyear.
•
Imaginethepositionthroughtheentiregrowingseason
whentheremaybetallstandingcropbetweentheloca-
tionandvehicle.

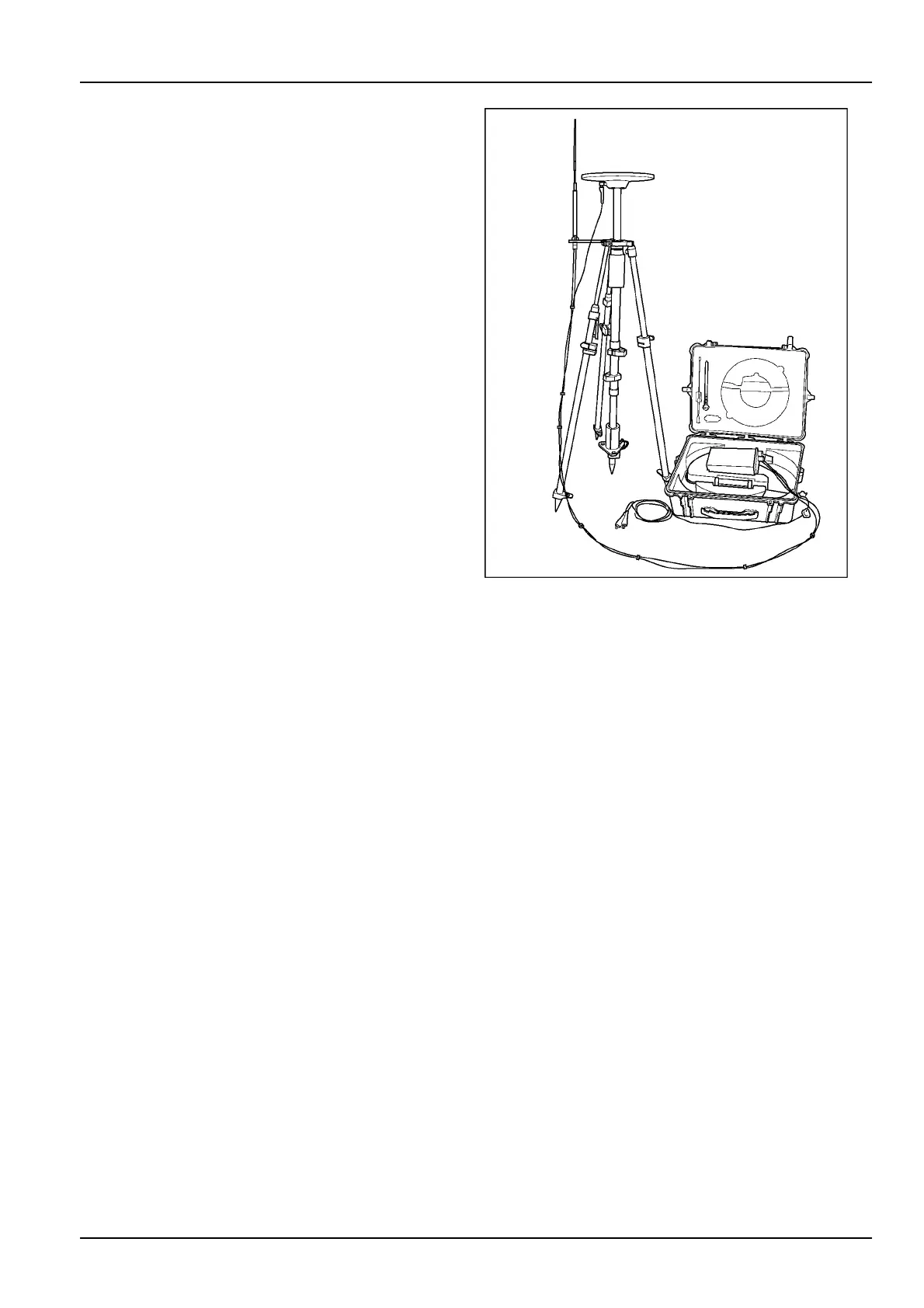

RCPH11DSP017BAG5
•
ThesupportfortheGPSantennamustbesturdyand
solid,topreventmovementandtippingfromnormal
windorrainduringeldwork.
•
Thepositionmustofferaclearviewofthesky,away
fromorabovebuildingsorotherlargeobjectsthatcan
reectsignals.
•
Thepositionmustofferclearcommunicationbetween
thebroadcastradioantennaandthereceiveronthe
vehiclethroughouttheeld.Ingeneral,uselineofsight
asaguide.Ifyoucannotseetheradioreceiveron
thevehiclewhenitisatthelowestpointofaeldor
behindarisefromtheGPSantennaheightposition,the
broadcastmaybelostatthoselocations.
Finally,testalocationbeforeyoucommittoit.Basesta-
tioncomponentsareportableandlendthemselvestoex-
perimentation.
3-49
