3-SETUP
“GPSStatus”
Placementlabel:GPSStatus
The“GPSStatus”windowreports:
•
ThestateoftheGPSreceiver
•
Thenumberofsatellitesinview
•
TheDGPStechnologyinuseifthereceiverisknown

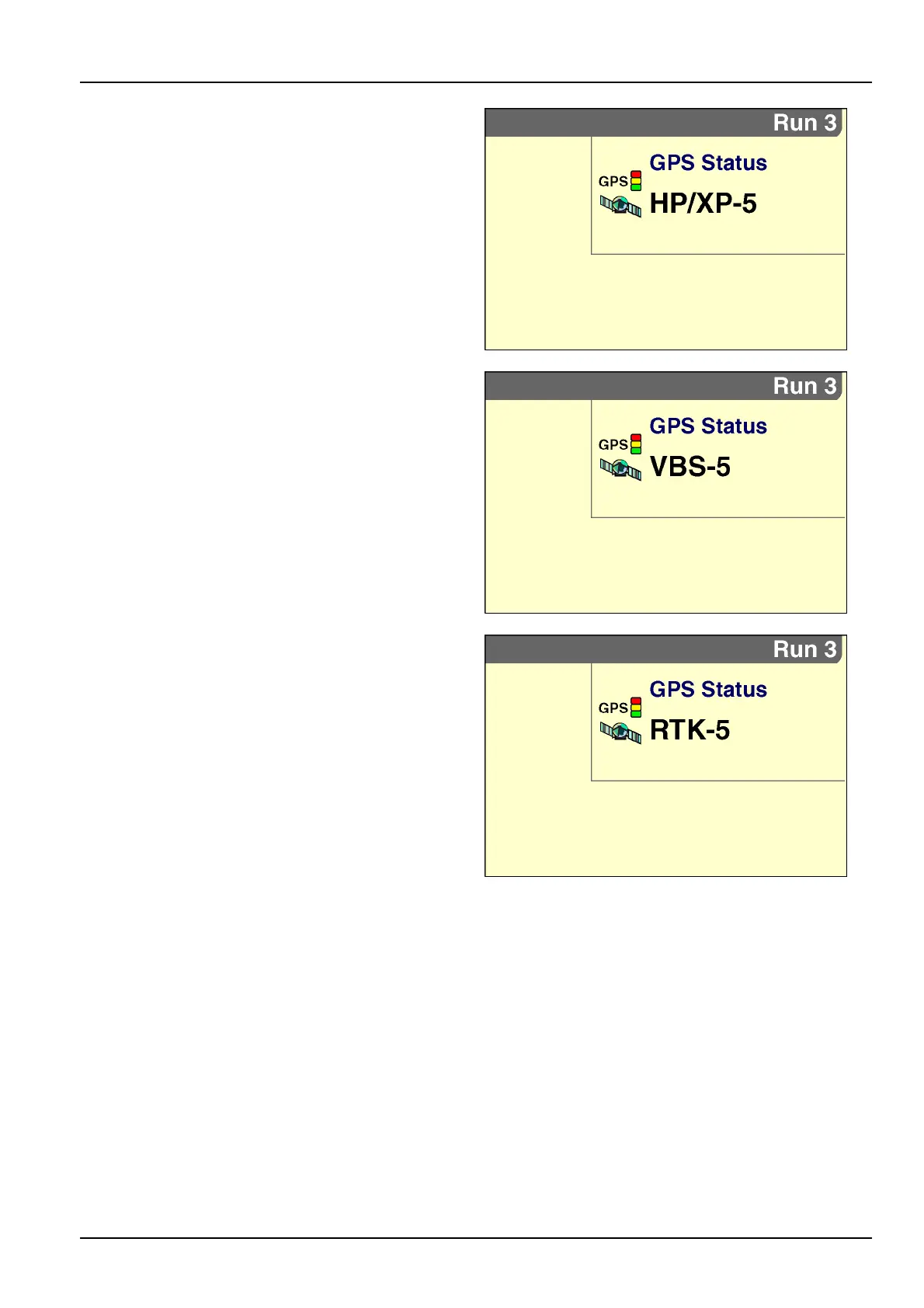

NOTE:Thesamewindowisrepeatedthreetimesinthese
illustrationstoshowthetextforthevarioustechnologies.
Duringoperation,themostcommonstatusmessageisa
variationontheDGPS-nmessage–“HP/XP-n,”“RTK-n,”
“VBS-n.”Themessageindicates:
•
Thatthesystemisreadyforuse
•
Thenumberofsatellitesthatareinview
•
Thetypeofcorrectionthatisinuse
Duringstartup,themostcommonmessageis“Wait-n.”
Themessageindicates:
•
Thatthesystemisacquiringsatellites
•
Thenumberofsatellitesthatthesystemhasacquired.
ThetablebelowexplainsthemessagesfortheGPSSta-
tuswindow,theassociatediconsforthestatusandwarn-
ingiconarea,andthemeaningofeachmessage.
RCIL11DSP370BBG9
RCIL11DSP371BBG10
RCIL11DSP373BBG11
3-85
