Case IH AFS Pro 700 - “DGPS Convergence” window

3-SETUP
“DGPSConvergence”
Placementlabel:DGPSConverging

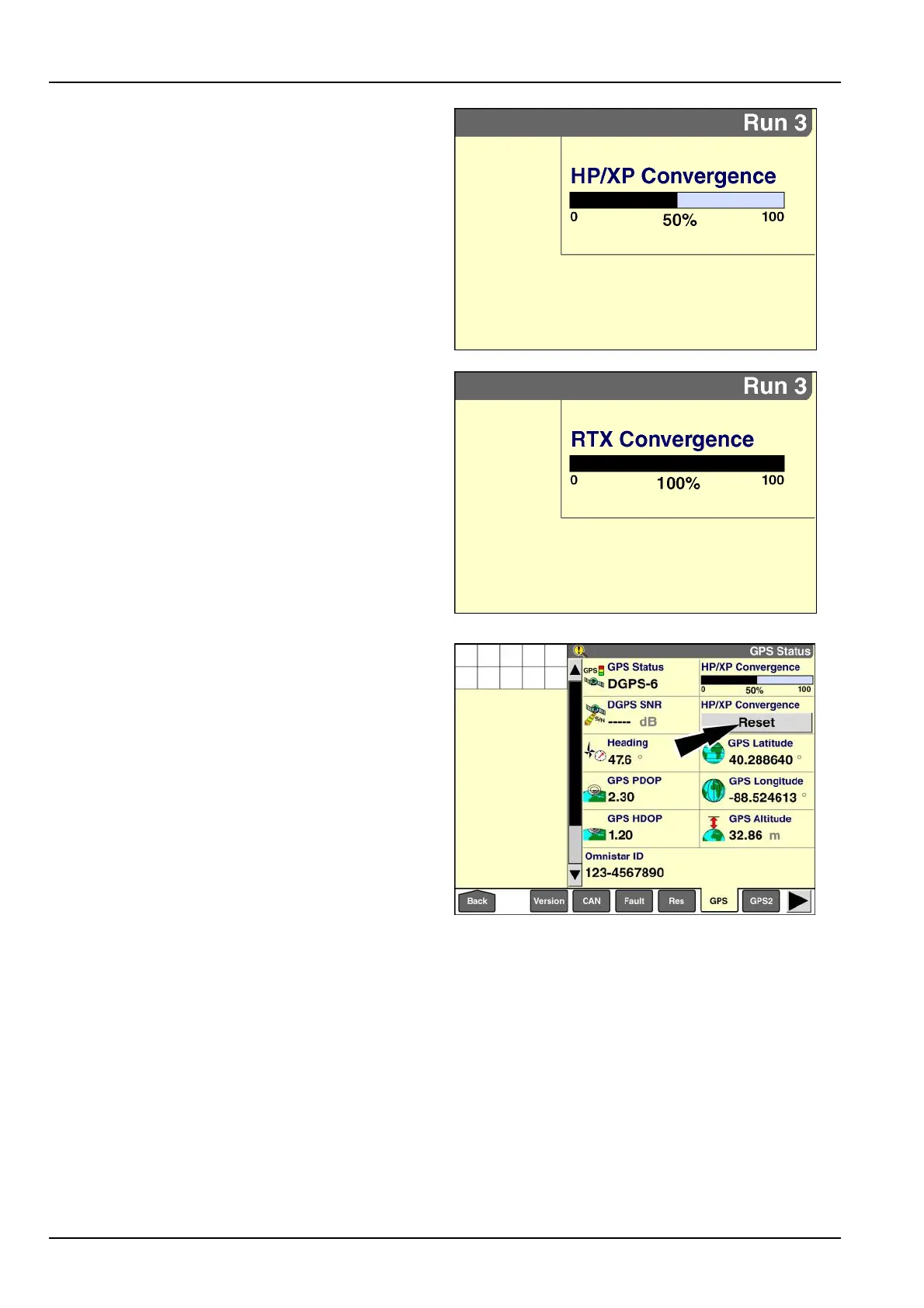

The“DGPSConvergence”windowoffersavisualrepre-
sentationofprogressforHP/XP/G2andstandardRTX™
technologies.Whilethesystemismakingcomplexcal-
culationstoreducetheGPSpositionerror,thebargraph
moveswiththeprogress.The“ConvergenceStatus”win-
dowonthe“GPSSetup”screendetermineswhetherthe
“DGPSConvergence”windowreportsapercentageora
valueinmeters(inches).The“DGPSConvergence”win-
dowisonlypresentwhenHP/XP/G2orstandardRTKis
used.
RCIL11DSP205BBG12
RAIL12DSP1408BA13
Usethe“Reset”buttontorestarttheconvergenceprocess
whenrequired.Resettingconvergenceisrequiredwhen
the“GPSReceivePositionRecallFailed”messageap-
pearsoriftheoperatoranswersthe“Hasthevehiclebeen
moved”questionincorrectly.
Resetisalsorequiredifthebargraphstopsatalowper-
centage.Convergenceisstoppedifthereisnoprogress
onthebargraphfor10-20min.
The“Reset”buttonisonlypresentwhenHP/XP/G2or
RTX™isused.Thisistheonlycontrolwindowonthe
“GPSStatus”screen.
