2-ICONSANDWINDOWS

Bargraphwindows

Bargraphwindowsappearinmanyshapesandsizes

throughoutthevariousapplications.Theygenerallywork

inthesamemanner.

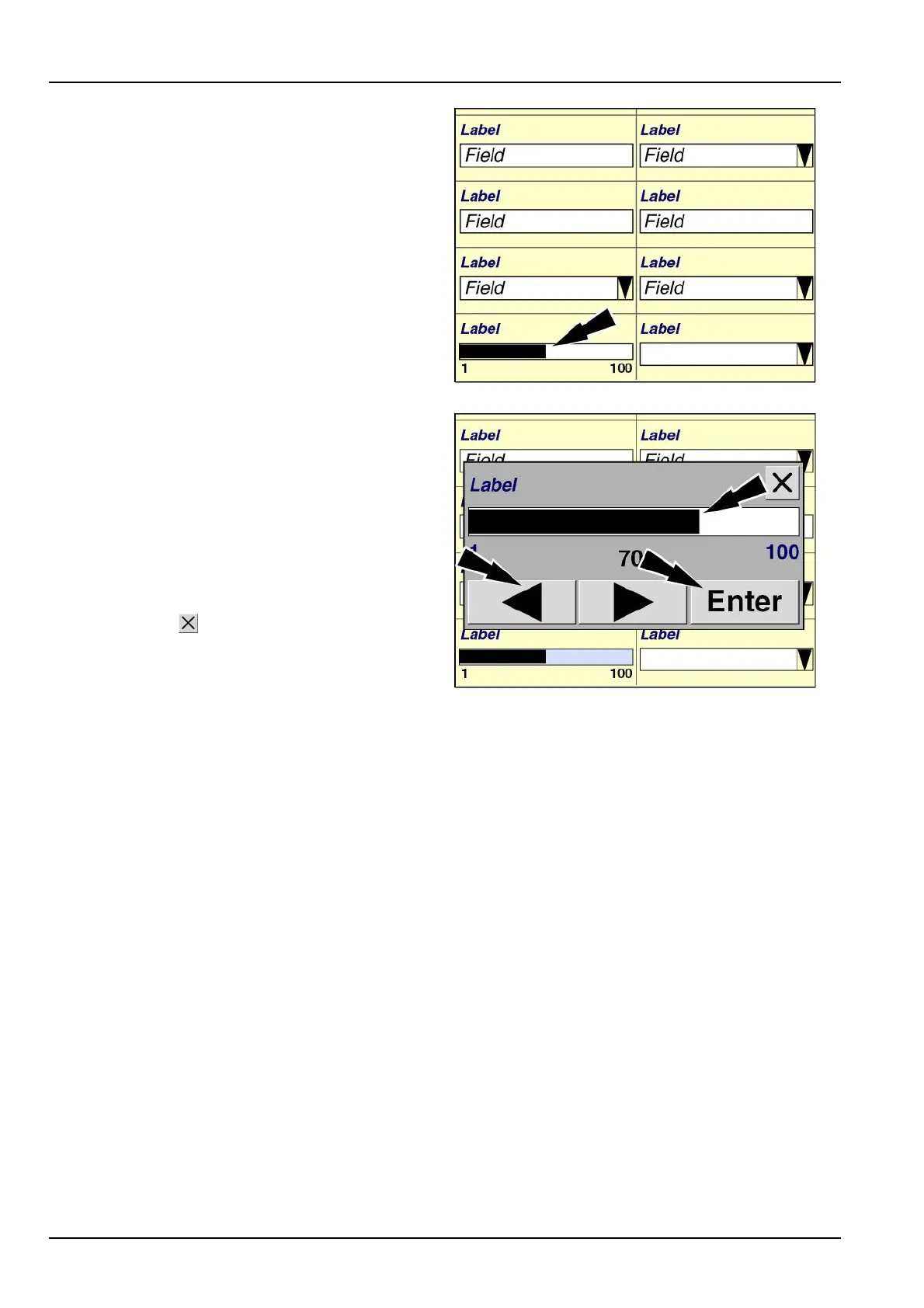

Pressthebargraphtoaccessthepop-upbargraphwin-

dow.

RCIL11DSP089BBG13

Pressanywhereonthebargraphtoimmediatelyadjust

theeldtoanewsetting.

Presstherightorleftarrowbuttonstoincreaseorde-

creasethevaluebyapresetincrement–forexample,

1%,5%or10%–providedforthistypeofbargraph.

Pressthe“Enter”buttontosavethesetting.Settingstake

effectwhentheyaresaved.

Pressthe“Close”

buttontoexitthewindowwithout

changingthesetting.

RCIL11DSP090BBG14

2-6
