Case IH AFS Pro 700 - VT Compatibility setting

6-VIRTUALTERMINAL(VT)ORUNIVERSALTERMINAL(UT)
“VTCompatibility”
Usethe“VTCompatibility”windowtoestablishthever-
sionoftheISOBUSUTstandardthatyourISOBUSinput
deviceandimplementuse.
Thissettingcontrolshowthe“VirtualT erminal”
applicationmanagesauxiliarycontrolmapping:
•
“Version3”isthedefaultsetting,andsupports“AUX-N”
(newer)auxiliaryinputdevicesandimplements.
•
“Version2”isincludedforbackwardscompatibilitywith
AUX-O(older)auxiliaryinputdevicesandimplements.
RAIL14DSP1363BA7
AnAgriculturalIndustryElectronicsFoundation(AEF)
certicationlabelidentiestheversionofauxiliarycontrol
thatyourimplementortoolsupports.Youcanndthe
AEFcerticationlabel:
•
inaninformationalscreenwithintheISOBUSsoftware
•
intheOperator’sManualfortheimplementortool
OR
•
onaphysicaldecalontheimplementortool
NOTE:Ifyoucannotdeterminethecorrectsettingby
othermeans,select“Version3”andattempttoperform
auxiliarycontrolmapping.Ifyoucannotcompletethe
mappingprocessorthemappedcontrolsdonotfunction,
changethesettinginthiswindowto“Version2”andtry
again.
ExampleAEFcerticationlabel
RAPH14DSP1439AA8

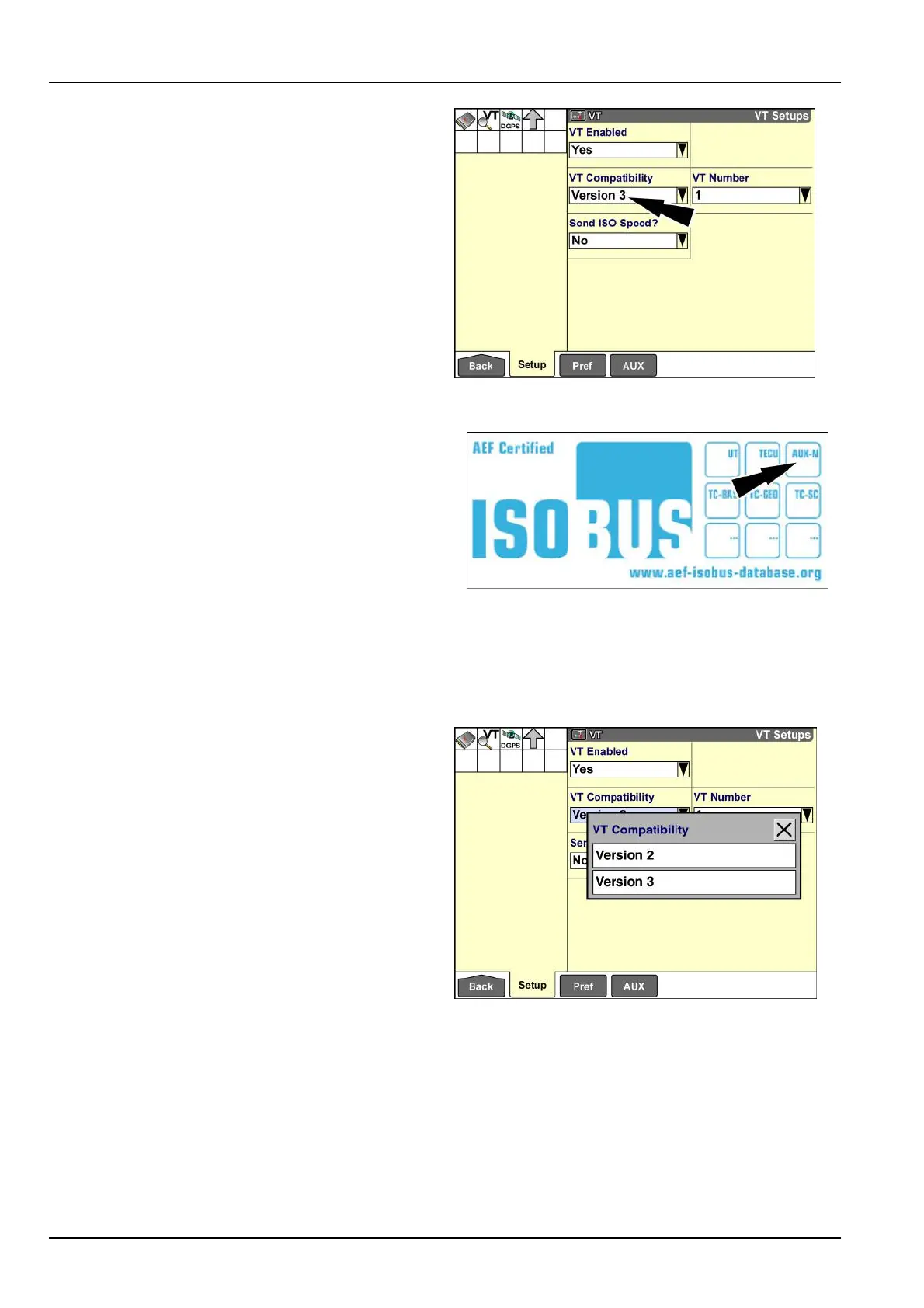

Pressthe“VTCompatibility”windowtoaccessthepop-up
optionswindow.
PressthecorrectversionforyourISOBUSinputdevice
andimplement.
RAIL14DSP1364BA9
6-4
