3-CONTROLSANDINSTRUMENTS

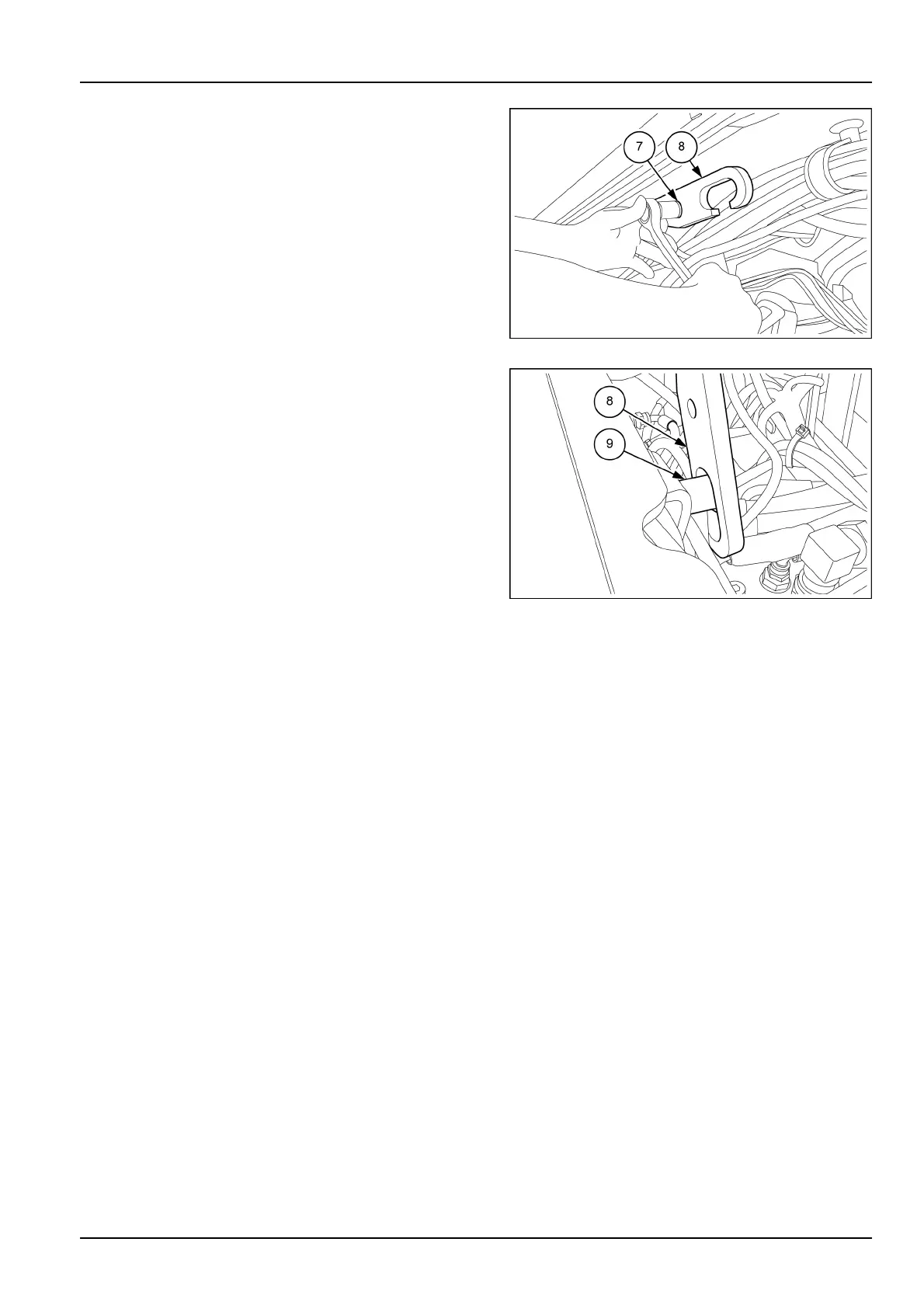

7.Oncethecabhasreachedthemaximumelevation,
unscrewthebolt(7)inordertounlockthebracket(8).
SMIL16MEX1110AB4
8.Lowerandxthebracket(8)bymeansofthestay(9)
inordertosecurethecab.
SMIL16MEX1111AB5
Backwardtilting
1.Raisethebracket(8)andxitwiththebolt(7).
2.Unscrewthebolt(6)tolowerthecabandinstallthe
coverofthescrew.
3.Installthetworeboundwashers(3),thetwoplain
washers(2),thetwocabmountingnuts(1),thepipe
(5),andthebolt(4).
4.Installthetwopanelslocatedbehindtheoperator’s
seat,andthenadjusttheoperator’sseatandthecon-
solebox.
3-77
