Case CX60C - Swing Bearing

To Next Page

To Previous Page

6-MAINTENANCE

Swingbearing

Greasetheswingringgearevery250h.

Lubricant:CASEAKCELA251HEPMULTI-PURPOSEGREASE

1.Parkthemachineonaatandlevelplace.Stopthe

engine,andremovethestarterkey.

SMIL16MEX1424AA1

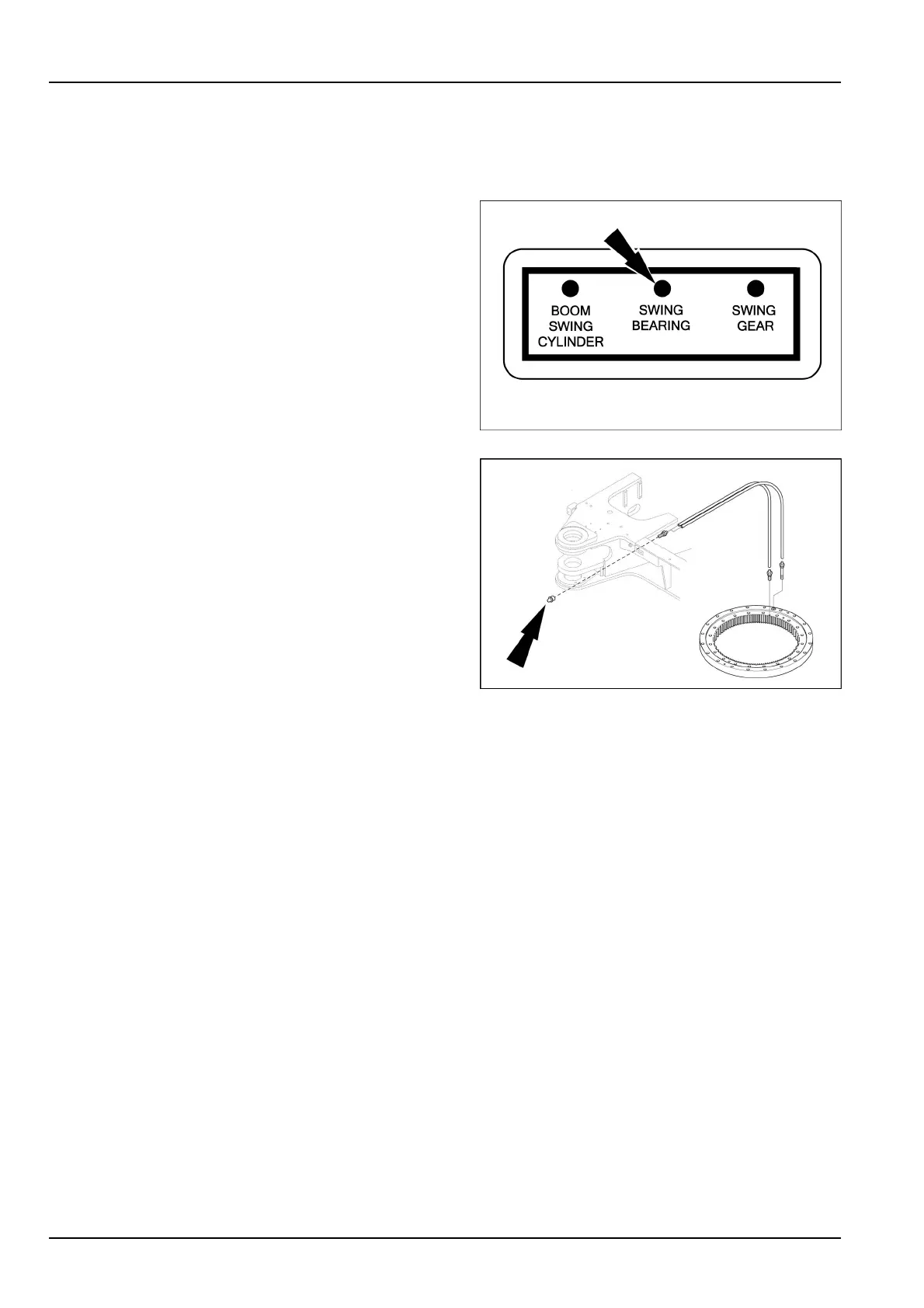

2.Usingagreasegun,injectgreaseofthespeciedtype

inthegreasepointsshowningure.

SMIL16MEX1367AA2
