3-CONTROLSANDINSTRUMENTS

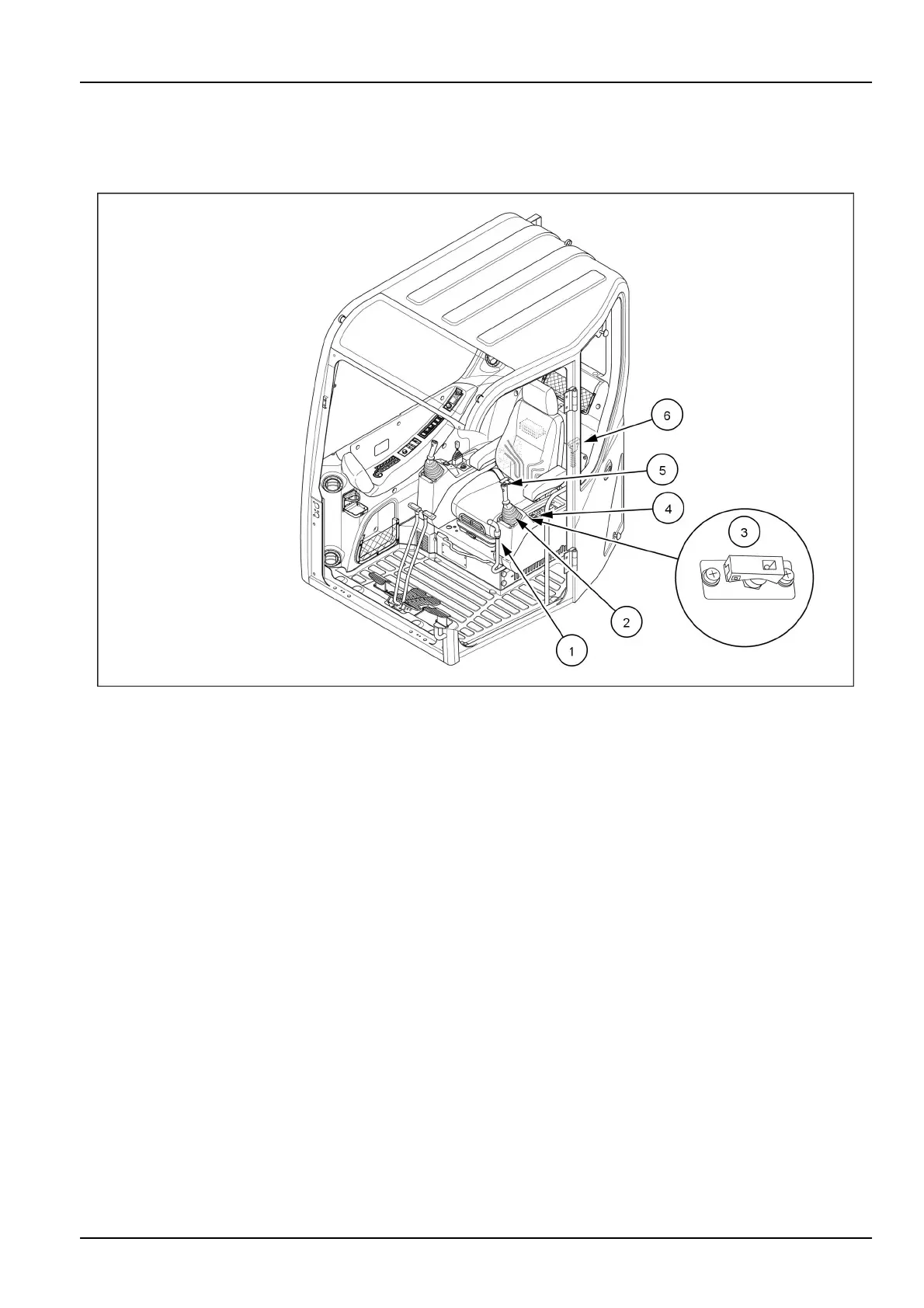

Left-handsidecontrols
Left-handsidecontrols
SMIL16MEX3228FA1
(1)Safetylocklever(refertopage3-15).
(2)Left-handcontrollever(refertopage3-6).
(3)Hydraulicquickcouplingsystemactivationswitch(op-
tional)
(4)Air–conditioningcontrolpanel(refertopage3-16)
(5)Hornswitch.Thehornswitchislocatedonthetopof
theleft-handcontrollever.Pressingthehornswitch,the
hornsounds.
(6)Emergencyexithammer(refertopage3-20).
3-13
