3-CONTROLSANDINSTRUMENTS
Instrumentcluster
TheinstrumentclusterconsistsofaLiquidCrystalDisplay(LCD)screenandswitchesasshownbelow.
TheLCDwarnstheoperatorincaseofabnormalmachineoperationorconditionsfortheappropriateoperationand
inspection.
TheLCDshowssetanddisplayformodes,monitoringandutilities.
Theswitchessetthemachineoperationmodes.
NOTE:theclusterinstalledonthismachinedoesnotentirelyguaranteetheconditionofthemachine.Dailyinspection
shouldbeperformed.Whentheclusterprovidesawarning,immediatelychecktheproblemandperformtherequired
action

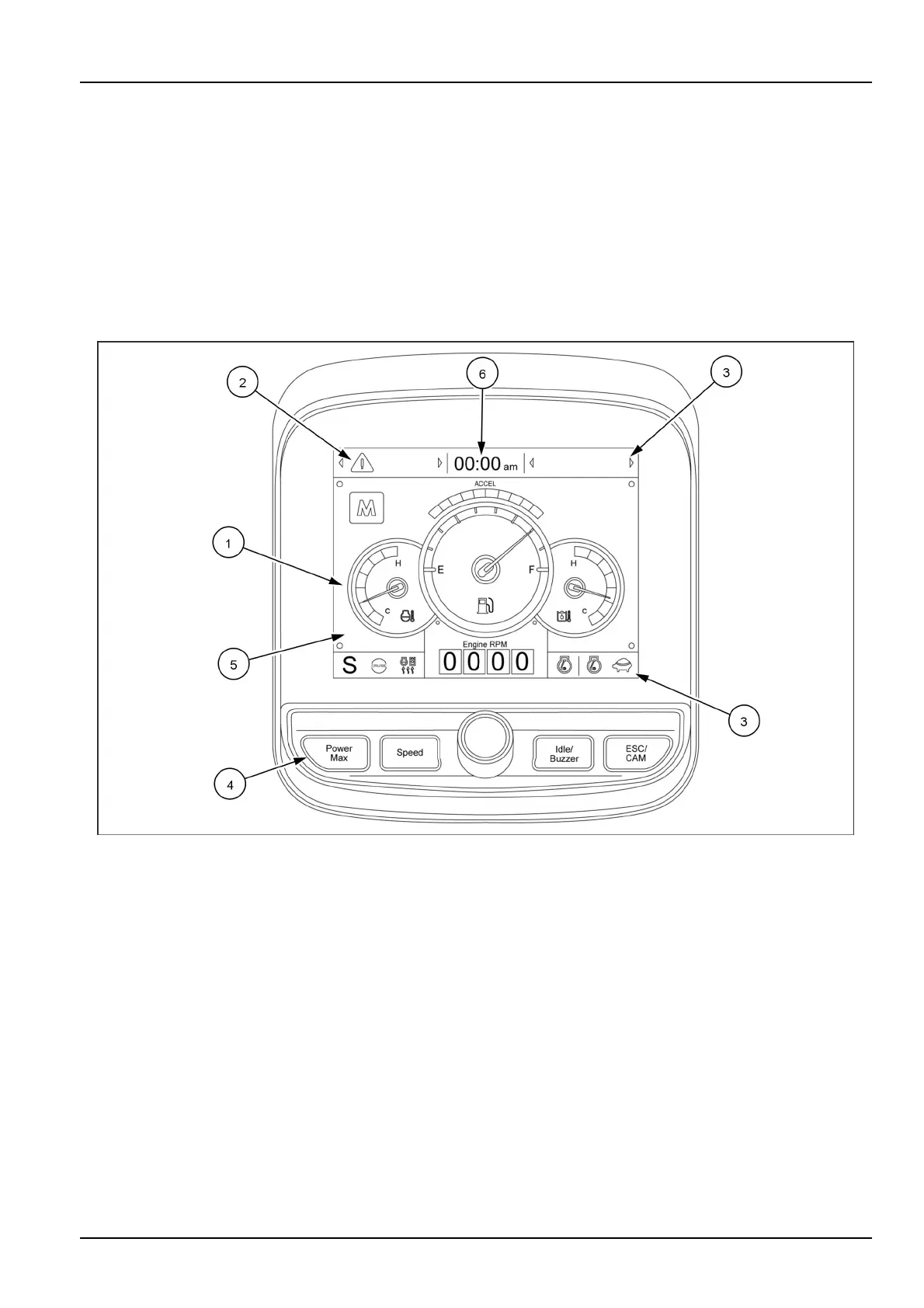

SMIL16MEX3090FA1
(1)Gauges(4)Switches
(2)Warninglights(5)Mainmenu
(3)Pilotlights(6)Timedisplay
3-27
