6-MAINTENANCE

Greasepoints(Blade)

Greasethebladeevery50h.

Lubricant:CASEAKCELAMOLYGREASE

SMIL16MEX1076FA1

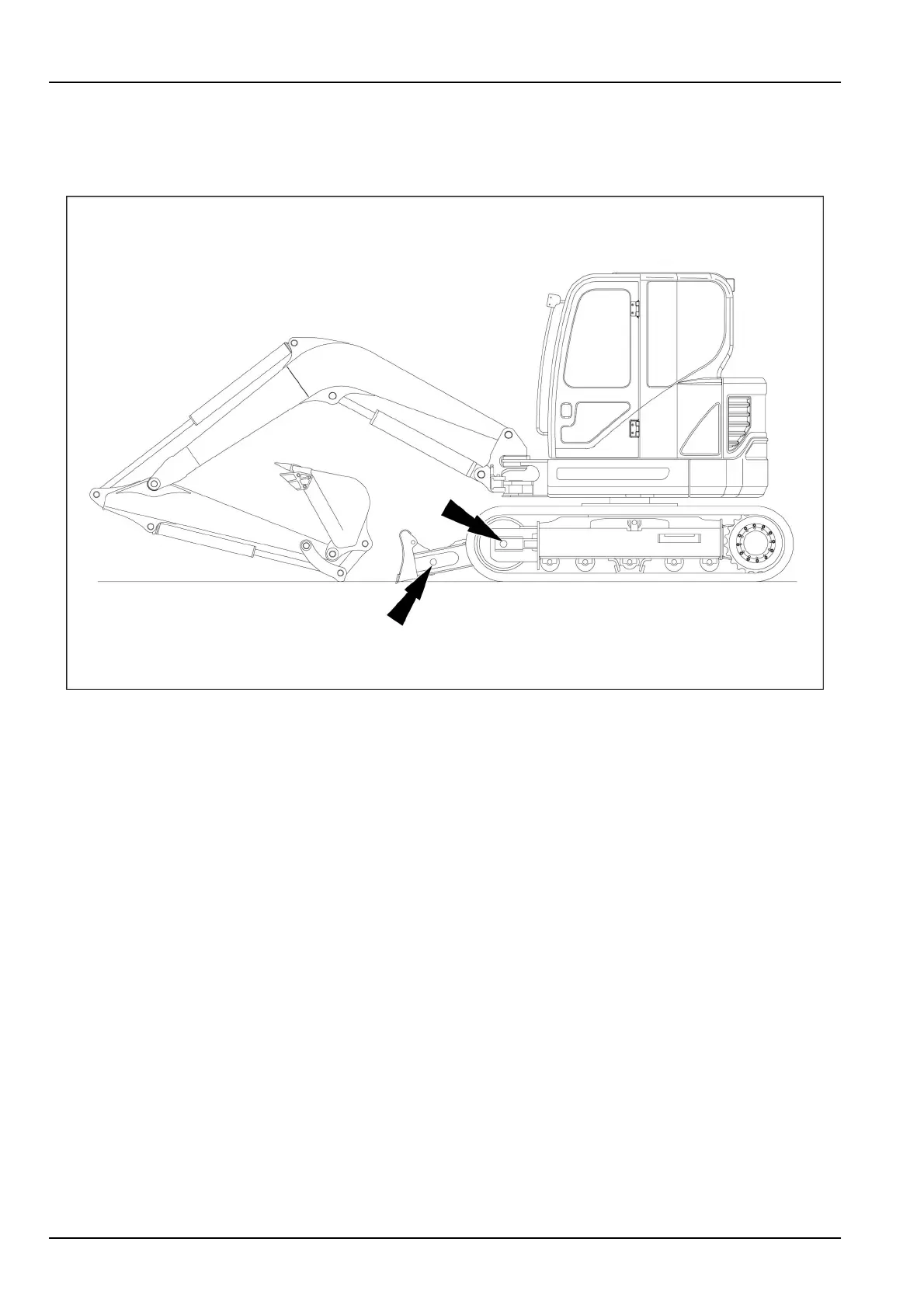

Dozerbladeconnectionpin:twogreasettings

Dozerbladecylinderpin:twogreasettings

NOTICE:ifyouoperatethemachineinwaterormud,you

mustlubricatethedozerbladeconnectionpinandthe

dozerbladecylinderpinevery10h.
