Case CX60C - Hydraulic Control Lever Operating Pattern

4-OPERATINGINSTRUCTIONS
Hydrauliccontrolleveroperatingpattern
WARNING
Unexpectedmachinemovement!
Pilotcontrolshavetwodifferentbackhoecon-
trolspatterns;beforeoperatingthemachine,
checkwhichcontrolfunctionisactive.
Failuretocomplycouldresultindeathorse-
riousinjury.
W0185A

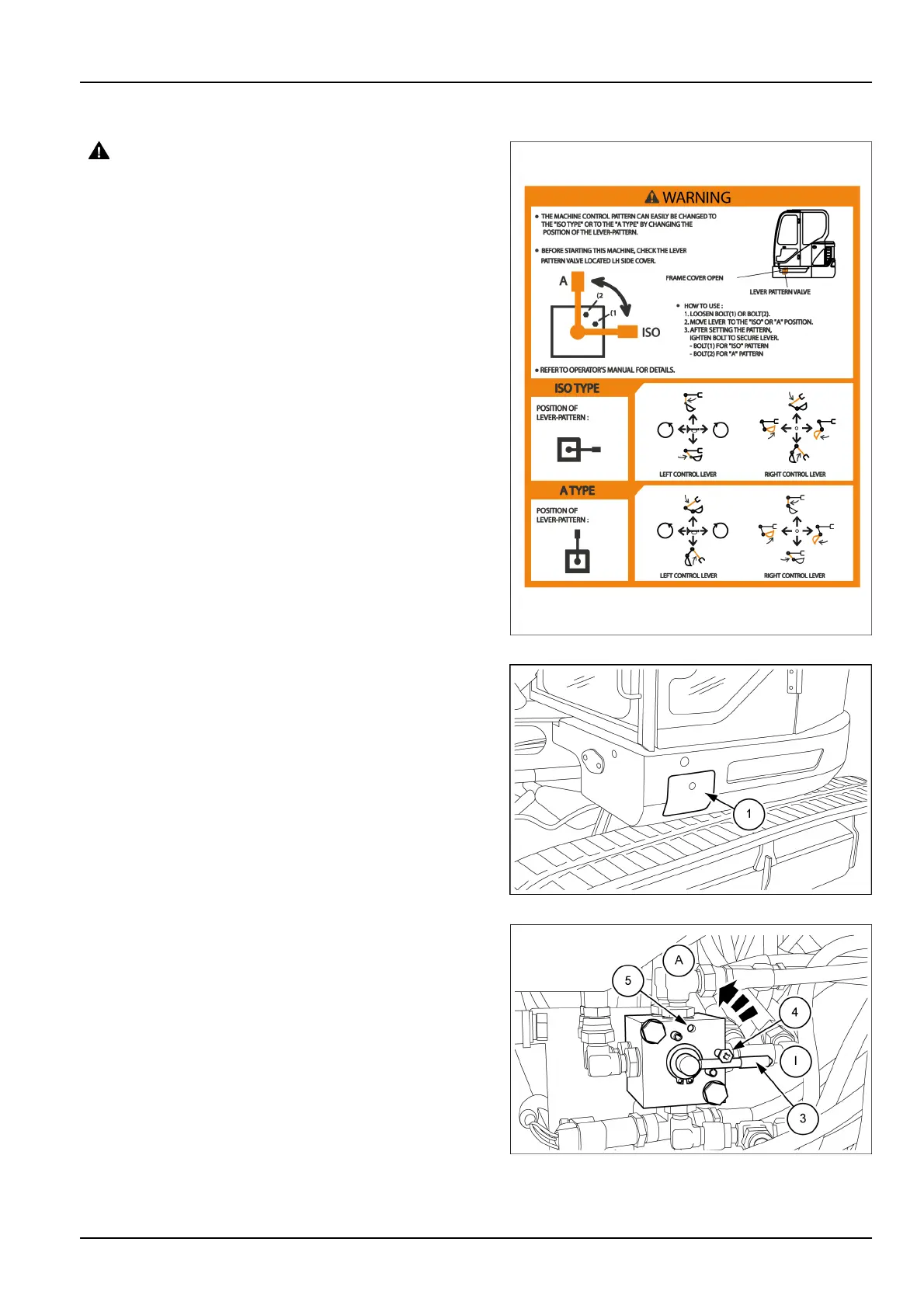

NOTICE:wheneverachangeismadetothemachine
controlpattern,alsoreplacethepatternlabelinthecab
tomatchthenewpattern.
SMIL16MEX1075BA1
Togetaccessthetothemachinecontrolpatternvalve,
usethekeytoopenthedoor(1).
SMIL18MEX0589AB2
Themachinecontrolpatterncanbechangedfromthe
“ISO”typepattern(I)tothe“A”typepattern(A)changing
thepositionofthelever(3)locatedonthepatternchange
valve.Tochangethepattern,performthefollowing
operations:
1.Loosenthebolt(4).
2.Rotatethelever(3)fromthe“ISO”typepattern(I)to
the“A”typepattern(A).
3.Tightenthebolt(4)inthethreadedhole(5)tosecure
thelever(3).
SMIL18MEX0590AB3
4-13
