3-CONTROLSANDINSTRUMENTS
Operator'sseat
Operator'sseat
Inordertooperatethemachinecorrectlyandwithmaximumefciencyandcomfort,adjusttheseattosuittheweight
andsizeoftheoperator.

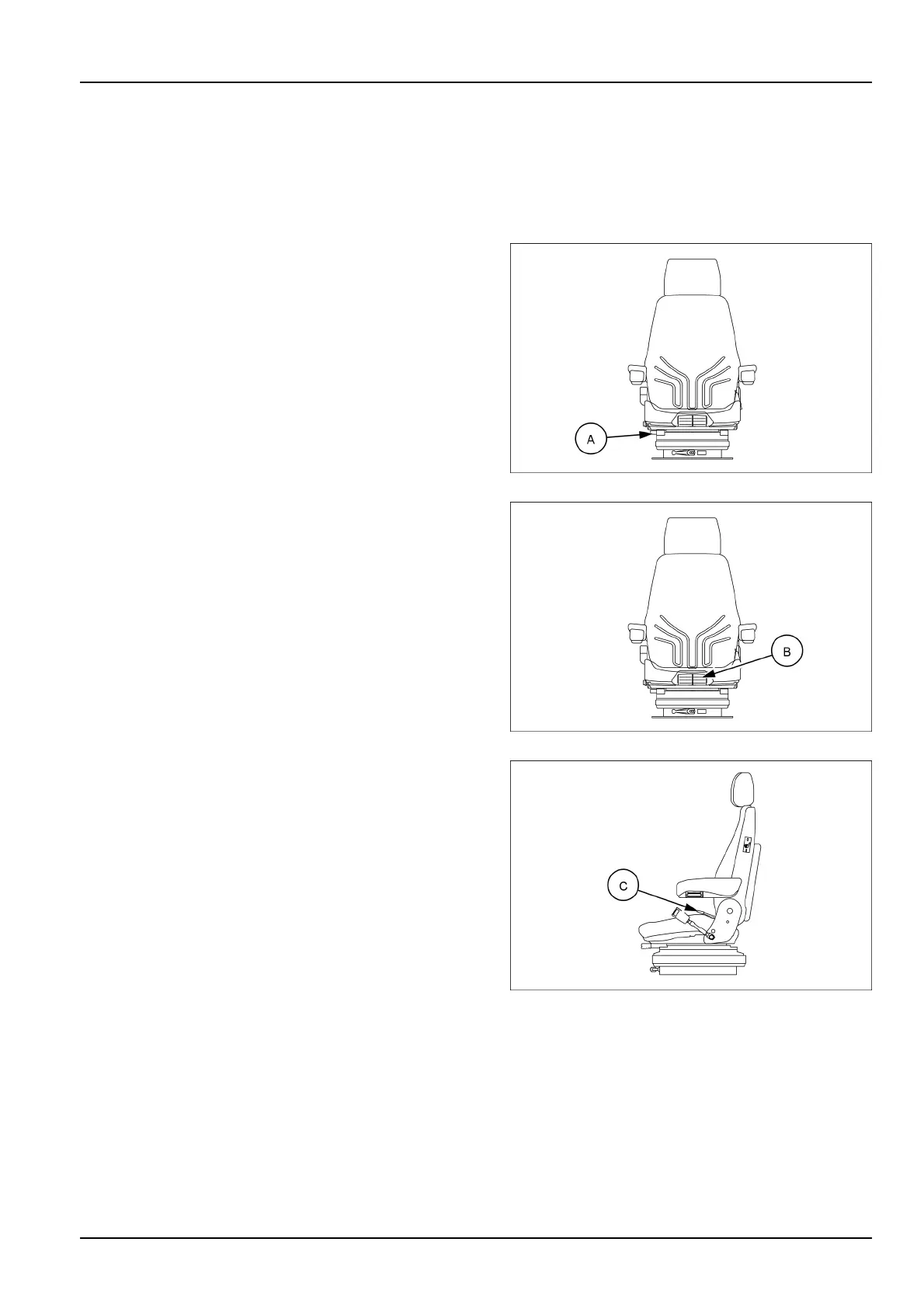

Foreandaftadjustment
•
Pullthelever(A).
•
Slidetheseattotherequiredposition.
•
Releasethelever(A).
NOTE:theseatcanbepositionedoverarangeof
130mm(5in)in13steps.
NOTE:donotliftthelever(A)withyourlegoryourcalf.
SMIL16MEX0696AA1
Heightadjustment
•
Pullthelever(B).
•
Adjusttheheighttherequiredposition.
•
Releasethelever(B).
NOTE:theseatcanbepositionedoverarangeof
60mm(2in).
SMIL16MEX0696AA2
Seatbackangleadjustment
•
Pullthelever(C).
•
Adjusttheseat-backtothedesiredposition.
•
Releasethelever(C).
SMIL16MEX0697AA3
3-3
