Case CX60C - Page 288

9-ACCESSORIES

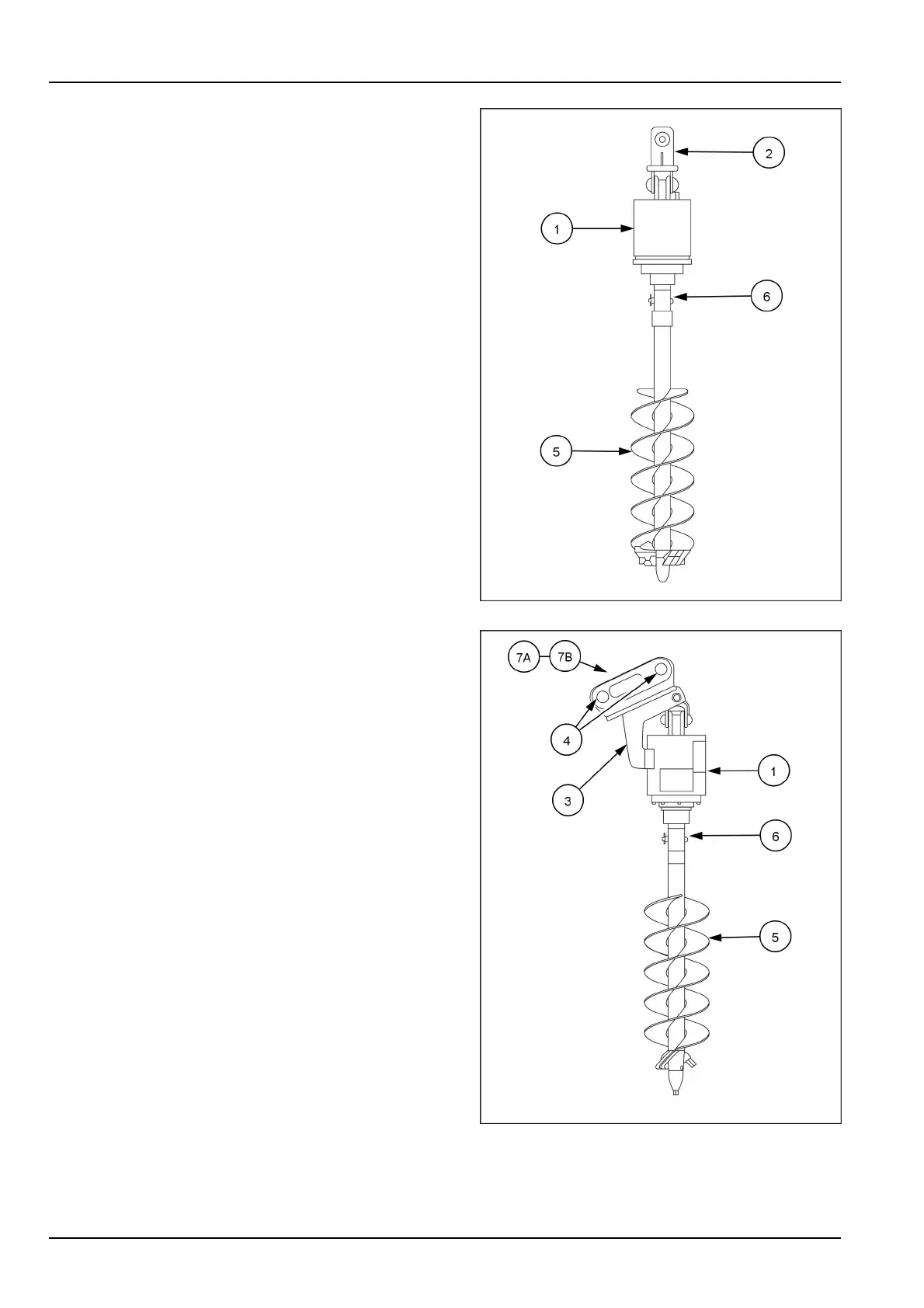

Theaugerpendulummountassemblyconsistofthe
followingitems:
•
Driveunit(1).
•
Pendulummount(2).
•
Bit(5).
•
Augerbitextension(6)(notshowningure)mustbe
installedbetweenthedriveunit(1)andthebit(5).
SMIL17MEX3033BA53
Theaugercradlemountbracketassemblyconsistofthe
followingitems:
•
Driveunit(1).
•
Cradlemountbracket(3).
•
Pin,bushingandinsertkit(4).
•
Bit(5).
•
Augerbitextension(6),thiscomponent,notshowin
gure,mustbeinstalledbetweendriveunit(1)andthe
bit(5)
•
Adapterplate(7A),thiscomponent,notshowingure,
mustbeusedtoengagethecradlemountbracket(3)
withKlaccoupler.
NOTE:theadapterplate(7A)isforKlaccouplerappli-
cationsonly.
•
Adapterplate(7B),thiscomponent,notshowingure,
mustbeusedtoengagethecradlemountbracket(3)
withmechanicalorhydraulicpingrabbercoupler.
NOTE:theadapterplate(7B)isformechanicalorhy-
draulicpingrabbercouplerapplicationsonly.
SMIL17MEX3034BA54
9-34
