2-SAFETYINFORMATION

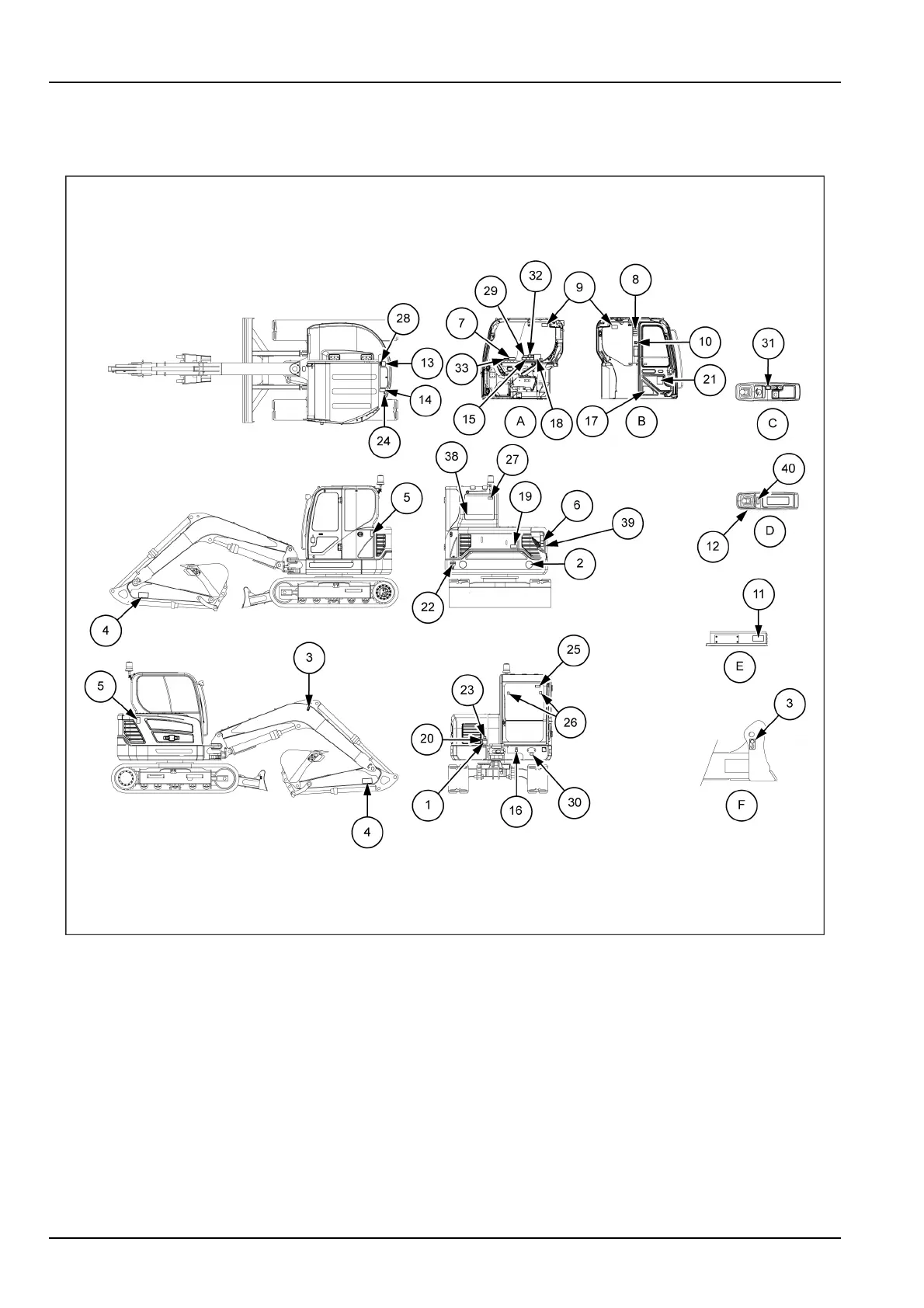

Signpositions

Whenyoureplaceasafetysignorothermachinedecal,makesureyoupositionitasshownbelow.

SMIL18MEX0587GB1

2-18
