3-CONTROLSANDINSTRUMENTS

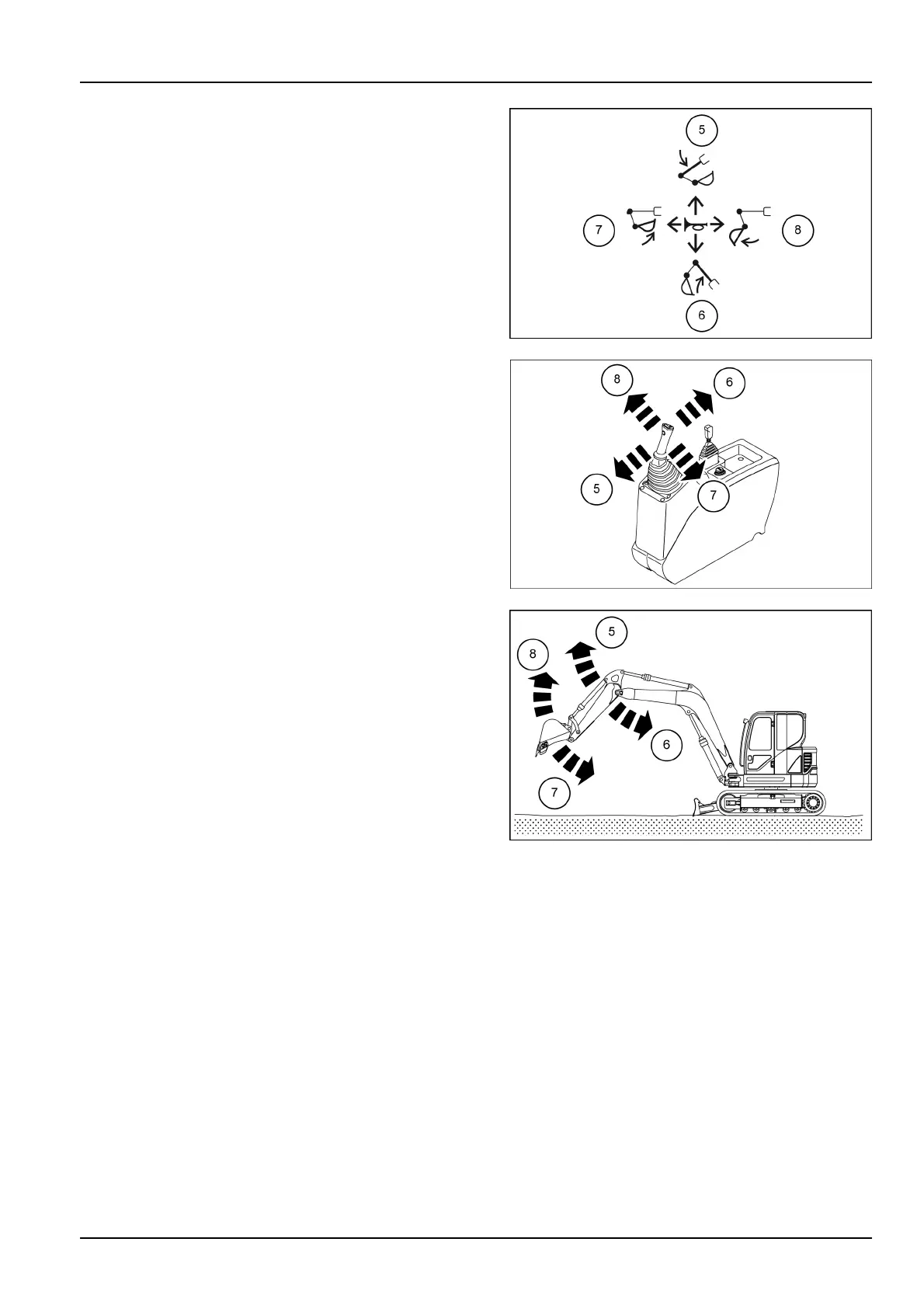

Right-handcontrollever:

5.Thedipperarmextends.

6.Thedipperarmretracts.

7.Thebucketretracts(lling).

8.Thebucketextends(dumping).

NOTE:thespeedofmovementoftheboomorthebucket

dependsonthecontrollevertiltangle.Intheintermediate

positiontwomovementscanbeobtainedsimultaneously.

SMIL16MEX3076AB10

SMIL16MEX0492AB11

SMIL16MEX3177AB12

3-9
