3-CONTROLSANDINSTRUMENTS

SMIL16MEX0531EA42

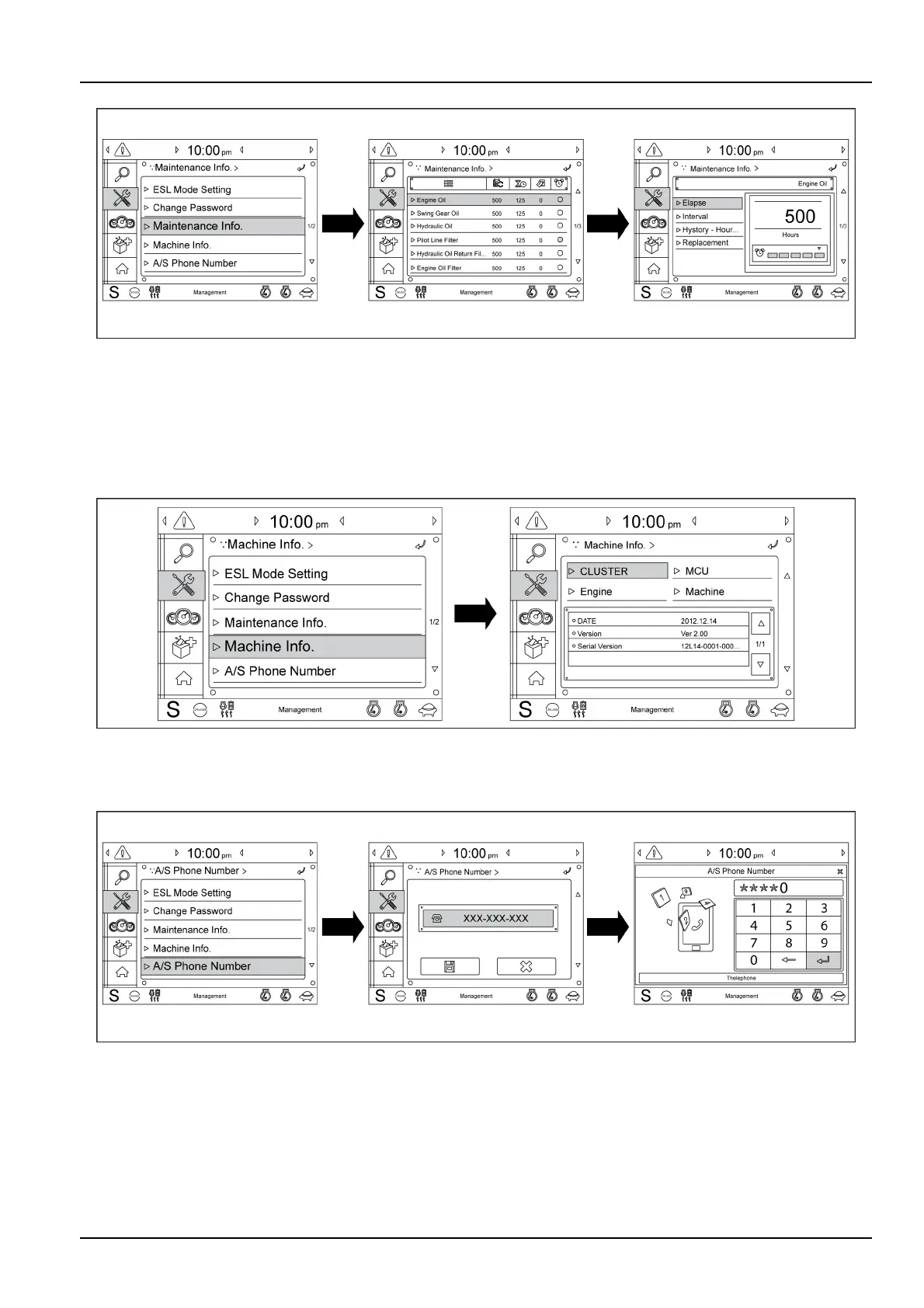

(D)Maintenanceinformation

•

Elapse:maintenanceelapsedtime

•

Intervalthechangeorreplaceintervalcanbechangedintheunitof50h

•

History-hour:maintenancereplacementhistory

•

Replacement:theelapsedtimewillberesettozero(0)

SMIL16MEX0532EA43

(E)Machineinformation

Thismenuconrmstheidenticationofthecluster,theMCU,theengineandthemachine.

SMIL16MEX0533EA44

(F)A/Sphonenumber

TheA/Sphonenumbercanbecheckedandchanged.
