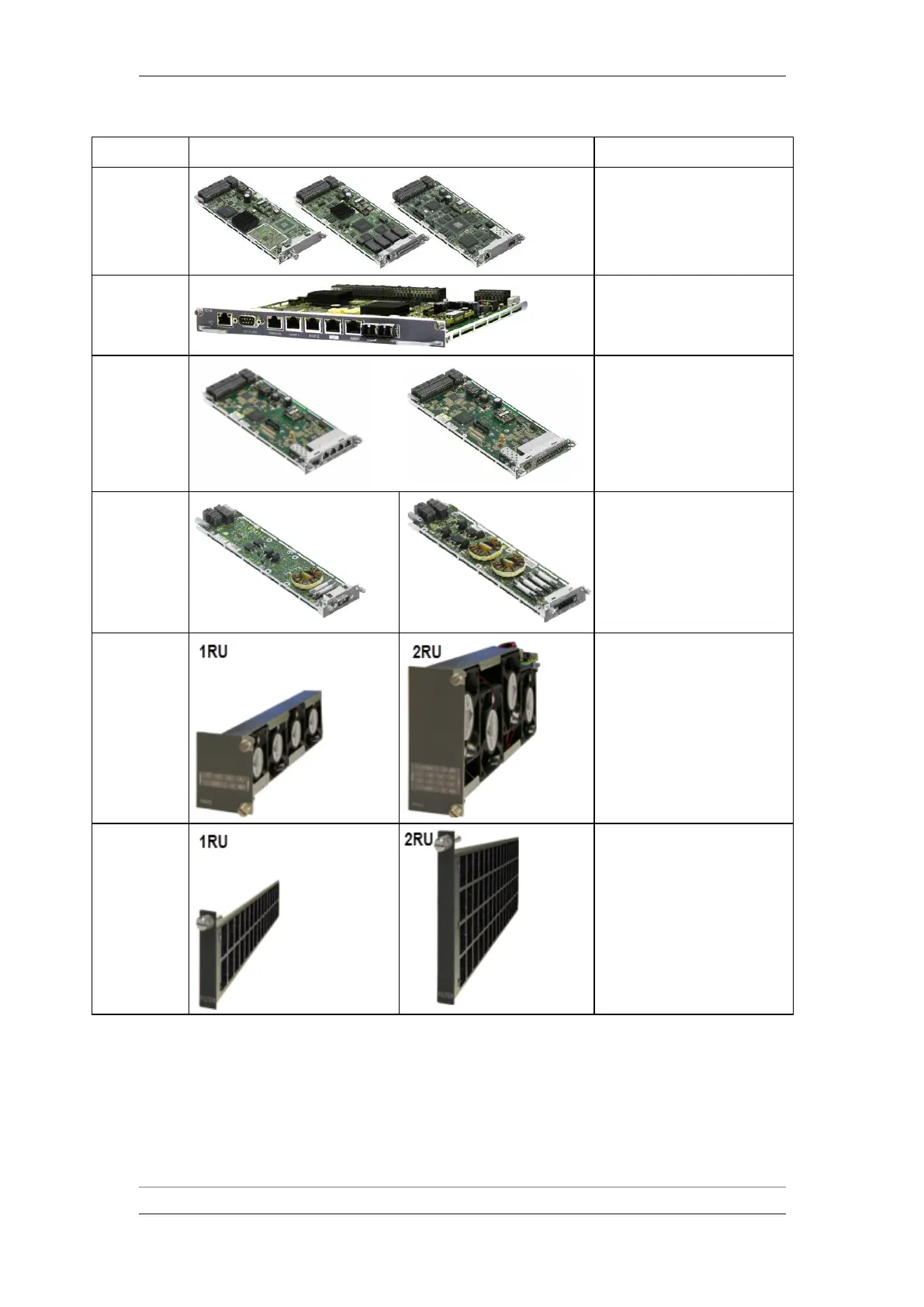

Slot
Card Illustration
Usage
7, 8, 9, 10
2RU: Slots 7 through 10 are used
to hold RMCs or TDM LICs.
11
2RU: In a redundant TCC
configuration, the backup TCC is
placed in slot 11.
12
2RU: Slot 12 is used to hold
Ethernet LICs.
PDC1
(1RU and 2RU)
PDC2 (2RU)
A single-feed or dual-feed input
PDC is placed in this slot.
Fans Drawer
1RU and 2RU: This slot holds
the fans drawer.
Filter
1RU and 2RU: This slot holds
the fans drawer. The filter unit is
optional. The filter drawer holds a
replaceable filter unit.
