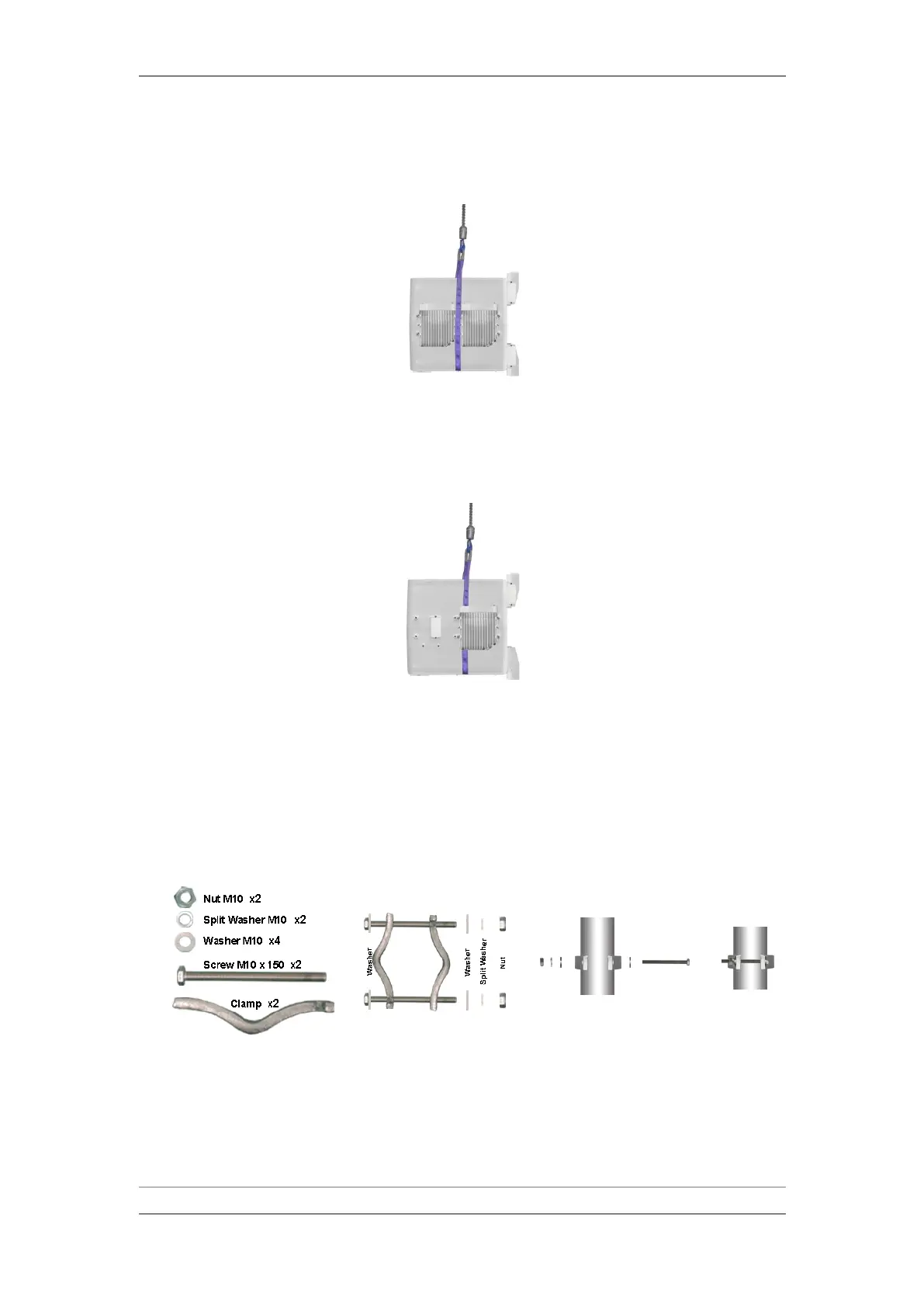

 Branching Box with 4 XCVRs – Place the sling/rope between the XCVRs.
Hoisting 4 XCVRs
 Branching Box with 2 XCVRs – Place the sling/rope between the XCVRs
and the branching box, as close to the center of the branching box as
possible.
Hoisting 2 XCVRs
6.2.2 Mounting XCVRs on a Pole
Use the pole mount kit, part number ABZ6859, to mount the branching box on
the mounting pole, as follows:
1 Mount the support clamp on the pole to prevent the branching box from
sliding downwards after installation.
Pole Support Clamp
