Ceragon Evolution IP-20LH - Replacing the PDC

Evolution® IP-20LH Installation Guide
Ceragon Proprietary and Confidential Page 53 of 101

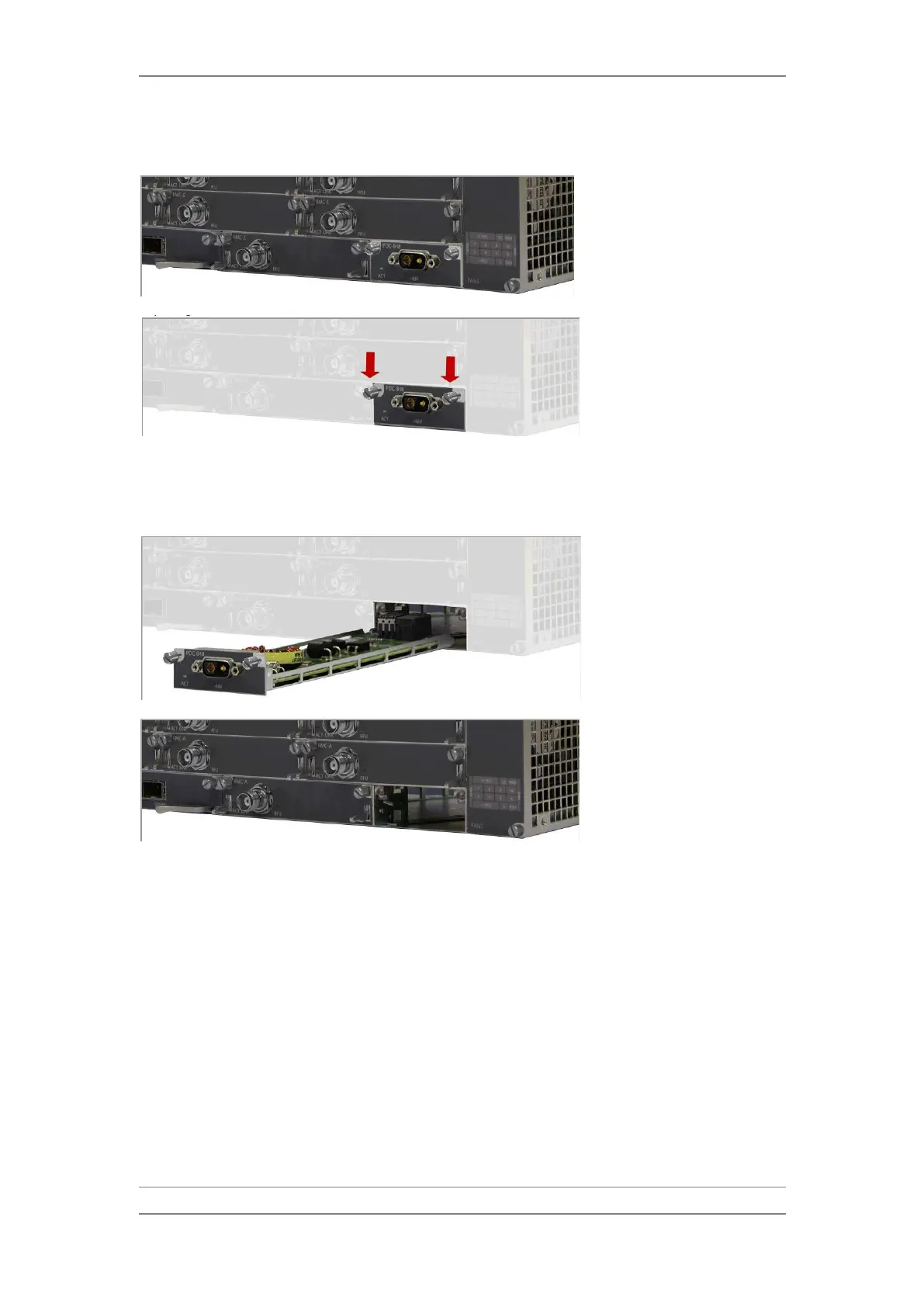

5.3.3 Replacing the PDC
1. Disconnect the
power cable (not
shown) on the
PDC to be
replaced.
2. Unscrew the two
captive screws
that secure the
PDC to the
chassis. A
screwdriver may
be used if
necessary to
unscrew the
screws.
3. Carefully slide
the PDC out of
the chassis by
pulling the
screws.
4. Install the new
PDC, as
described in
Installing a PDC
on page 52.
