2.4 Ethernet Line Interface Cards
The Evolution IP-20LH offers the following types of Ethernet Line Interface
Cards (Ethernet LICs):
 LIC-X-E4-Elec (4x GE), with 1 GbE combo interface and 3 GbE electrical
(RJ-45) interfaces
 LIC-X-E4-Opt (4x GE), with 1 GbE combo interface and 3 GbE optical (SFP)
interfaces
2.4.1 LIC-X-E4-Elec
The LIC-X-E4-Elec has the following interfaces:
 1 x GbE combo interface (SFP1 / GbE1)
 3 x GbE electrical interfaces
Note: The SFP module is optional.

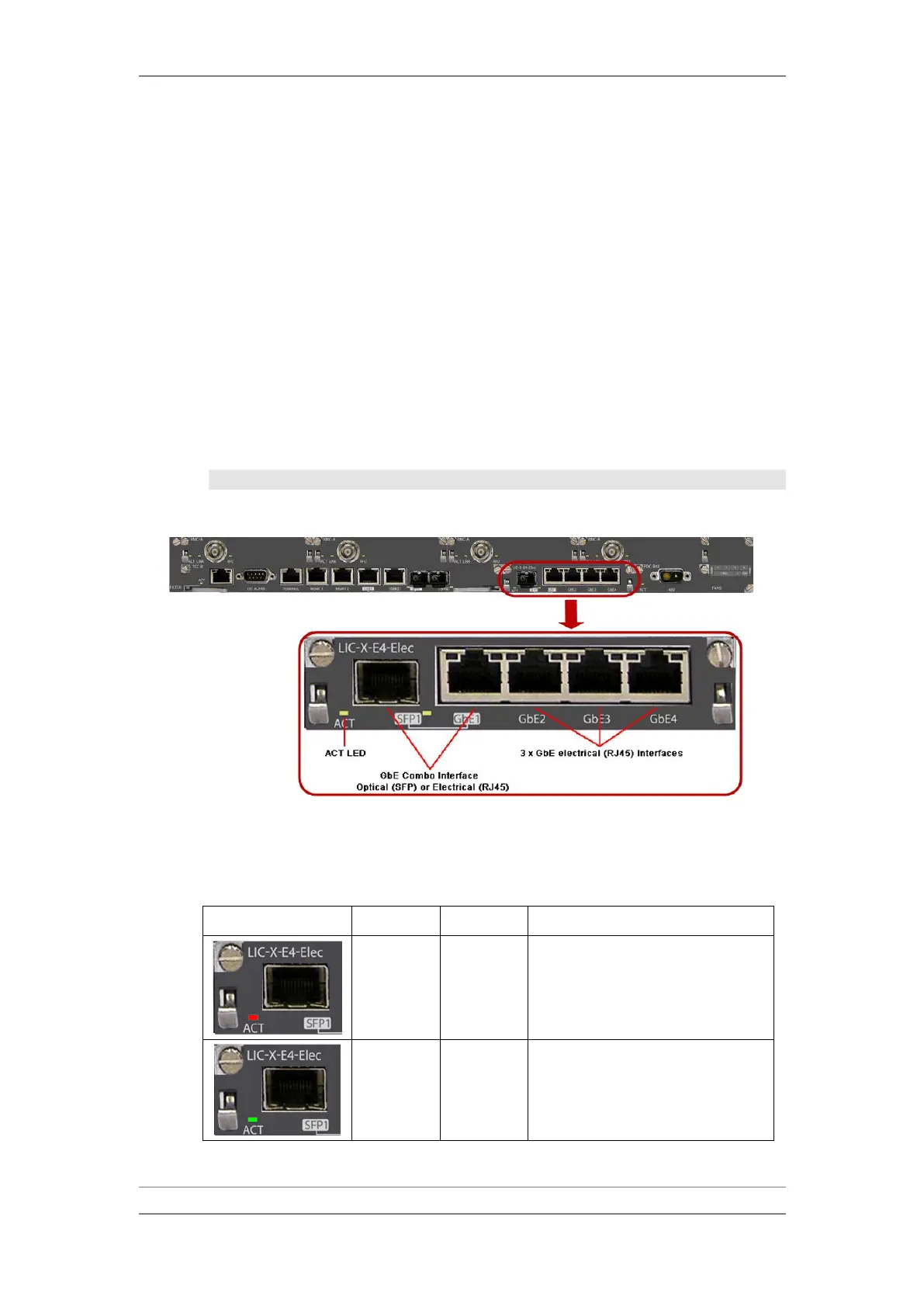

LIC-X-E4-Elec Detailed View
The LIC-X-E4-Elec provides the following LED:
 ACT – Indicates the card status.
LIC-X-E4-Elec LEDs
LIC-X-E4-Elec LED
LED
Color
Explanation
ACT
Red
The LIC is not functioning normally.
ACT
Green
The LIC is functioning normally.
