Evolution® IP-20LH Installation Guide
Ceragon Proprietary and Confidential Page 42 of 101
4.5 Installing an IVM
In most cases, an IP-20N chassis is delivered with an IVM already installed.
However, if you are required to install or replace an IVM, follow these
instructions:
On the rear side of the chassis, place the IVM in front of the backplane and
secure it using the two screws supplied with the IVM bracket.

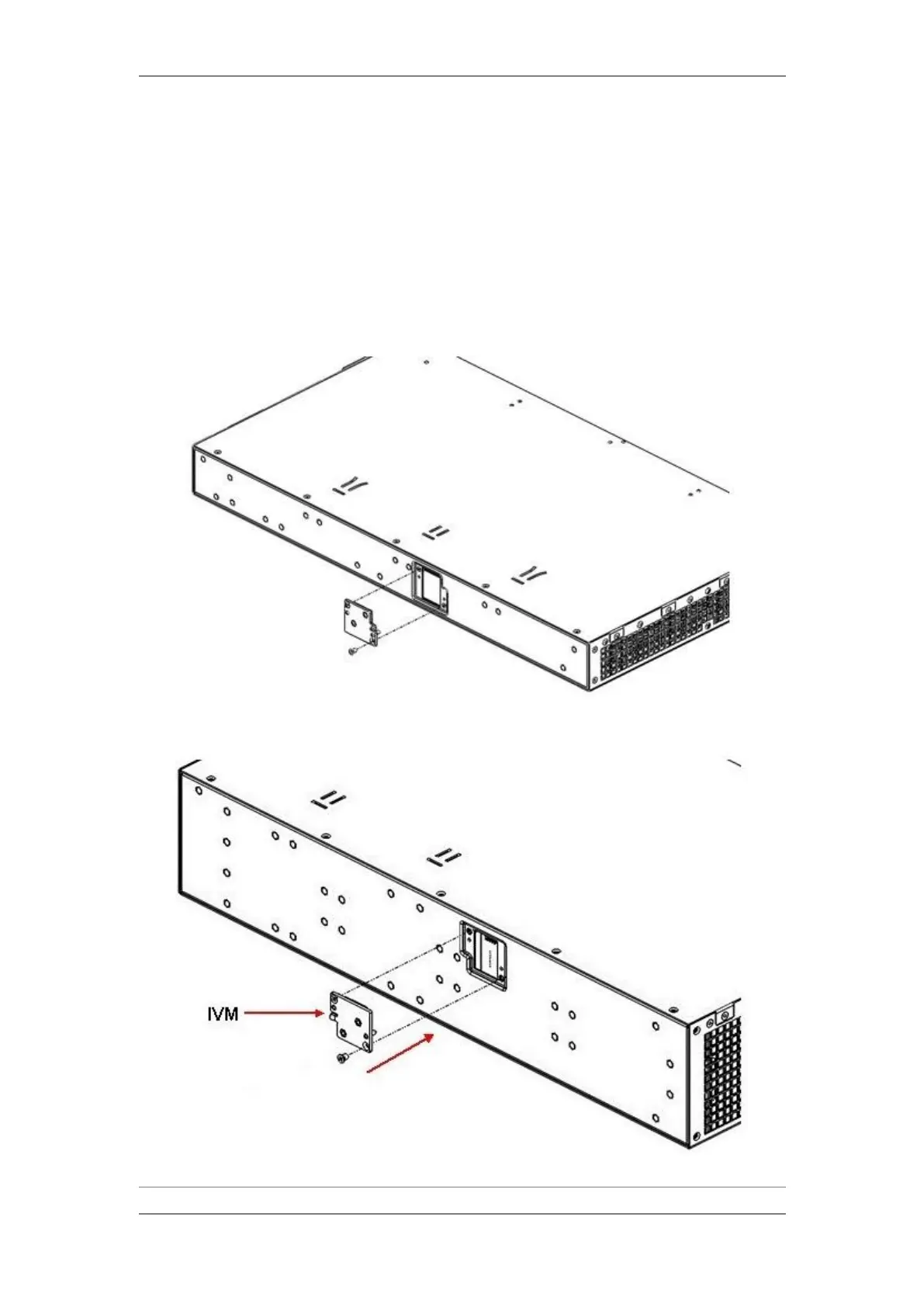

Installing an IVM, 1RU
Installing an IVM, 2RU
