Evolution® IP-20LH Installation Guide
Ceragon Proprietary and Confidential Page 95 of 101

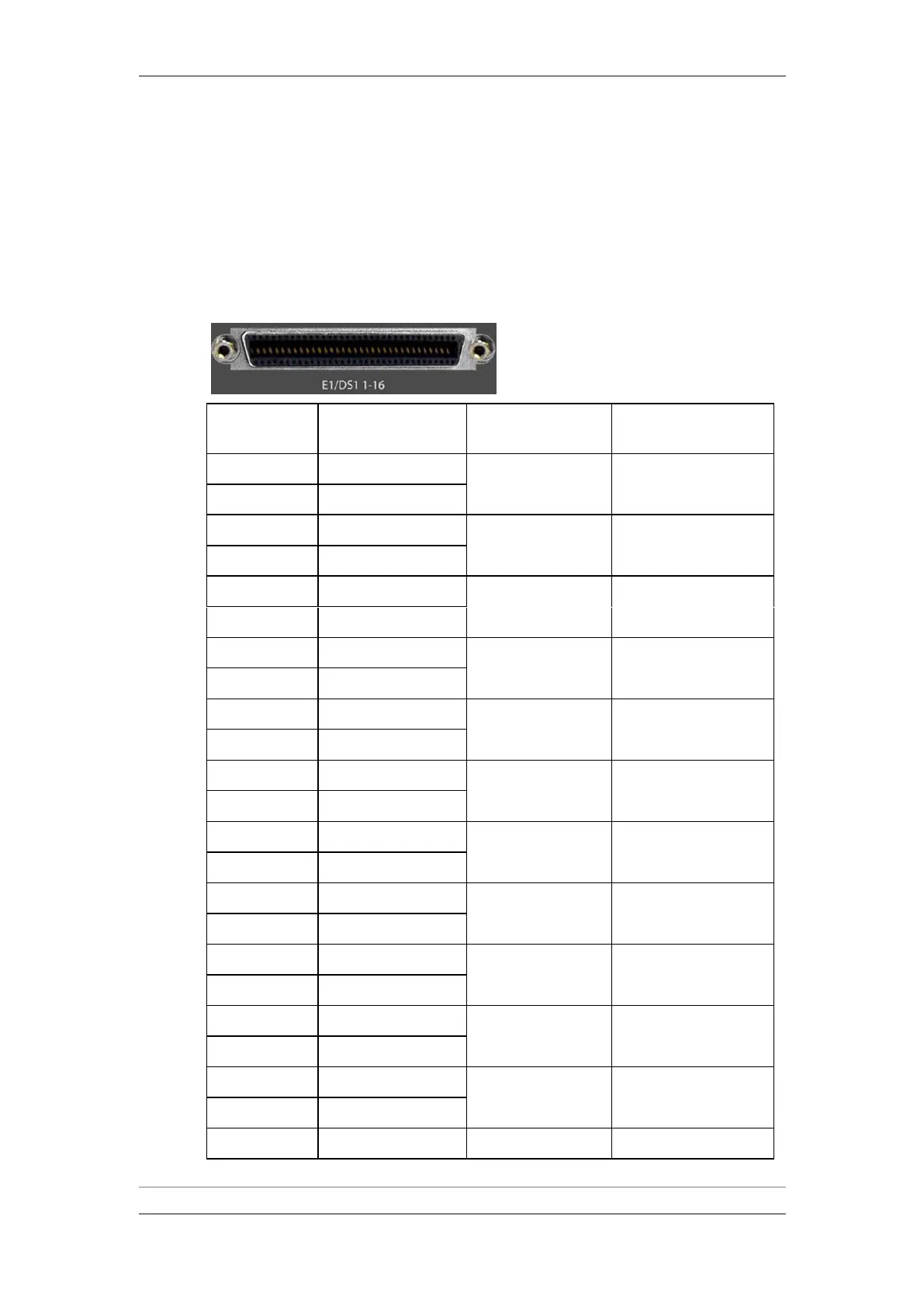

10.3 TDM LIC-T16 (16 x E1)
An LIC-T16 contains a16 x E1/DS1 connector and an RJ-45 synchronization
interface for clock input and output.
The16 x E1/DS1 connector is a SCSI 68-pin connector.
16 x E1/DS1 Connector
Pin #
Signal
Label on the
Twisted Pair
Type
1
OUT - TIP1
Ch1 Tx
TWISTED PAIR
35
OUT - RING1
2
OUT - TIP2
Ch2 Tx
TWISTED PAIR
36
OUT - RING2
3
OUT - TIP3
Ch3 Tx
TWISTED PAIR
37
OUT - RING3
4
OUT - TIP4
Ch4 Tx
TWISTED PAIR
38
OUT - RING4
5
OUT - TIP5
Ch5 Tx
TWISTED PAIR
39
OUT - RING5
6
OUT - TIP6
Ch6 Tx
TWISTED PAIR
40
OUT - RING6
7
OUT - TIP7
Ch7 Tx
TWISTED PAIR
41
OUT - RING7
8
OUT - TIP8
Ch8 Tx
TWISTED PAIR
42
OUT - RING8
9
OUT - TIP9
Ch9 Tx
TWISTED PAIR
43
OUT - RING9
10
OUT - TIP10
Ch10 Tx
TWISTED PAIR
44
OUT - RING10
11
OUT - TIP11
Ch11 Tx
TWISTED PAIR
45
OUT - RING11
12
OUT - TIP12
Ch12 Tx
TWISTED PAIR
