Evolution® IP-20LH Installation Guide
Ceragon Proprietary and Confidential Page 29 of 101
2.10 XCVR
The Evolution XCVR is a high transmit power transceiver designed for long
haul applications with multiple carrier traffic.
Ceragon’s patented power amplifier technology enables the XCVR to
deliver high transmit power with low power consumption.
The Evolution XCVR supports Space Diversity by means of IF Combining.
The Evolution XCVR provides a range of modulations from QPSK to
4201 QAM for single polarization configurations, and QPSK to 4201 QAM for
XPIC configurations.
2.10.1 XCVR Power Options
The XCVR can be ordered with the following power options:
High Power: 4-11 GHz
SD High Power: 4-11 GHz

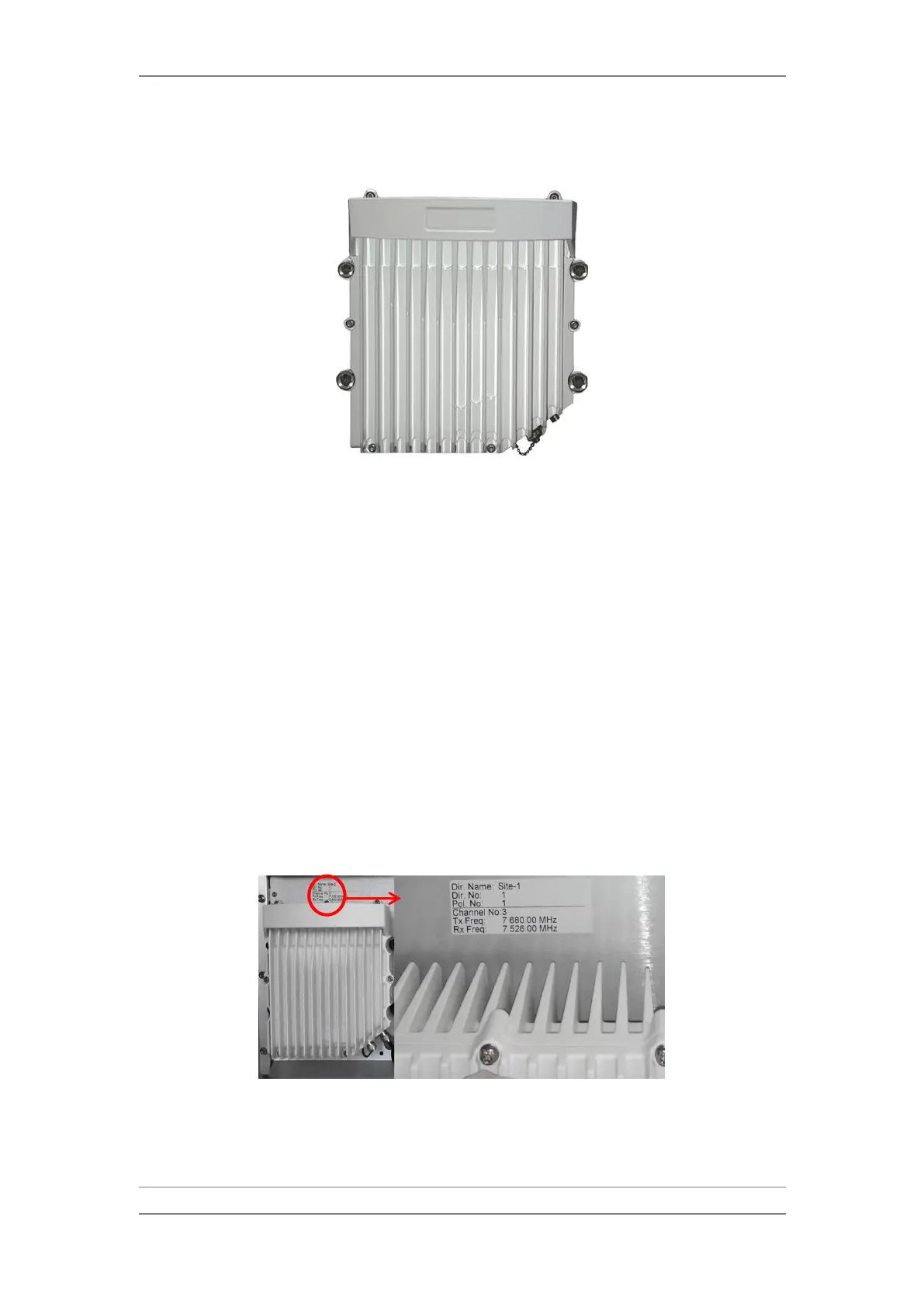

2.10.2 XCVR Identification Label
The XCVR identification label is as follows:
