Evolution® IP-20LH Installation Guide
Ceragon Proprietary and Confidential Page 83 of 101
8.1 For a 2RU Chassis
1 Verify that the wiring is according to the correct polarity.

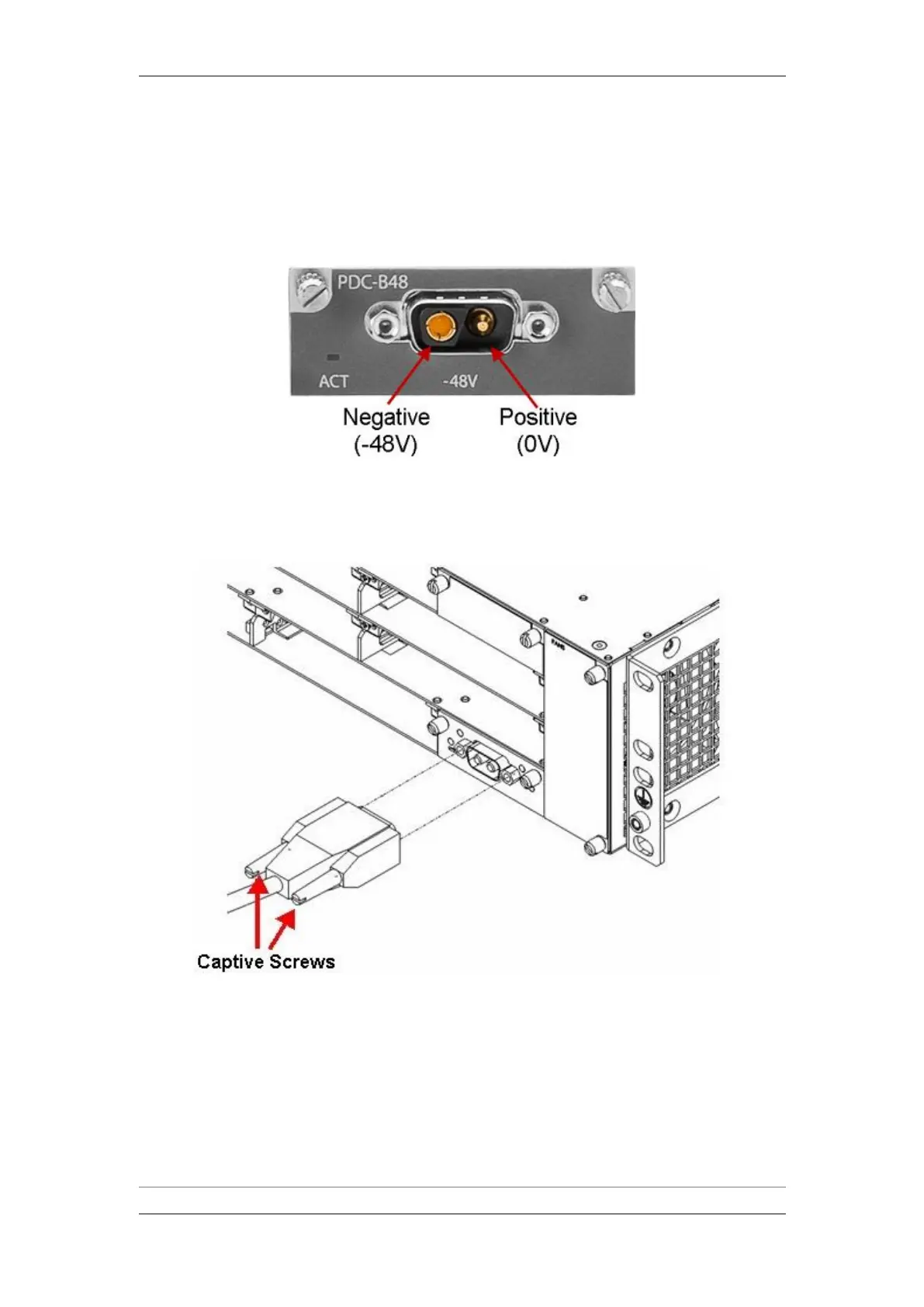

2RU Chassis – PDC Polarity
2 Plug the power connector into the PDC and tighten the two captive screws
on the sides of the connector to secure the connector.
Connecting the Power Cable in a 2RU Chassis
