Evolution® IP-20LH Installation Guide
Ceragon Proprietary and Confidential Page 70 of 101
2 Hoist the branching box to approximately the desired position.

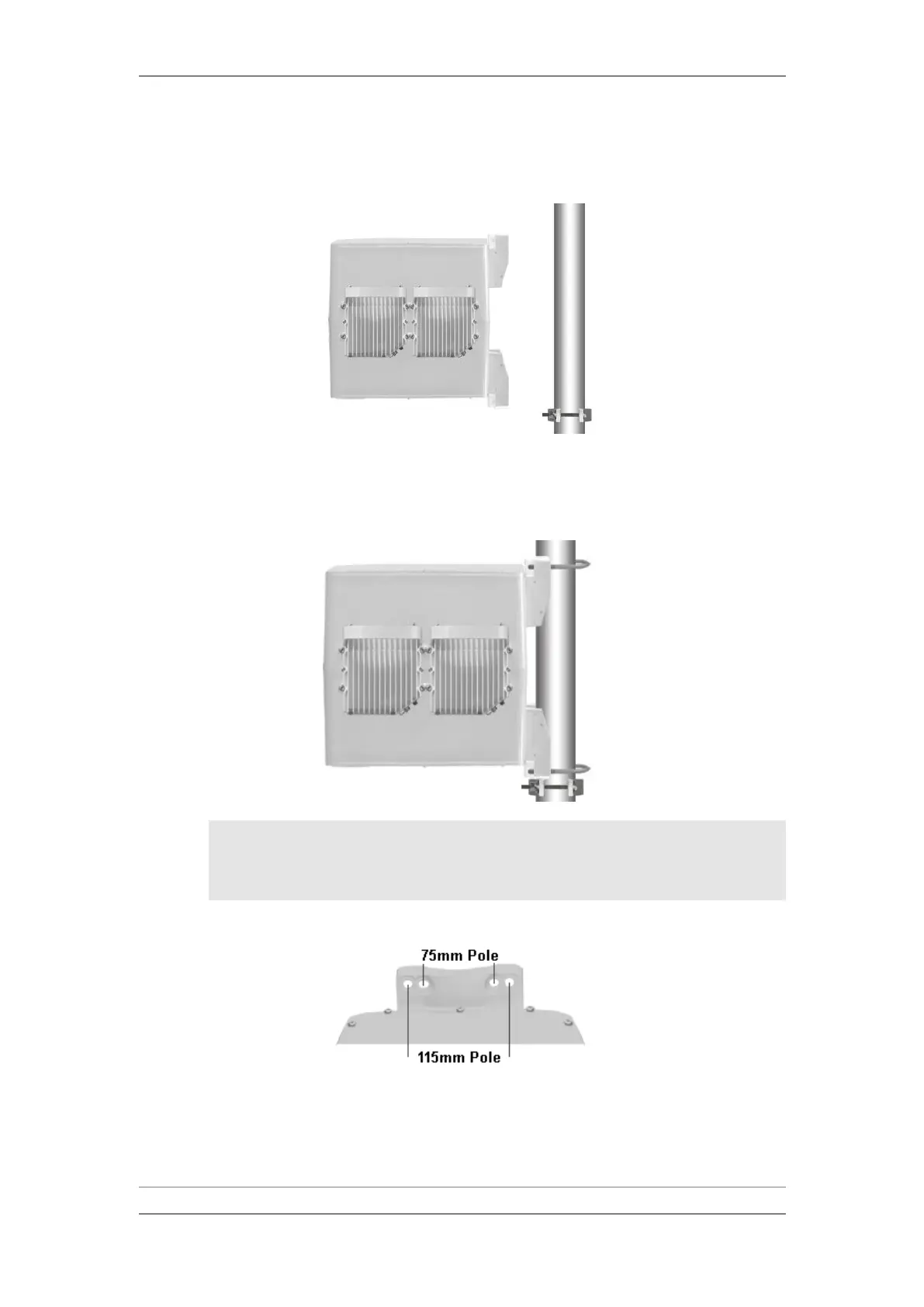

Branching Box at Approximately Desired Position
3 Push the branching box close to the pole and thread the U-shaped clamps
around the pole and through the mounting handles on the branching box.
Installing U-Shaped Clamps
Note: For a pole of 75 mm diameter, use the 75 mm U-shaped
clamps and for a 115 mm pole, use the 115 mm U-shaped
clamps. The mounting handles have two sets of holes for
this purpose.
75 mm and 115 mm Holes
