Evolution® IP-20LH Installation Guide
Ceragon Proprietary and Confidential Page 71 of 101
4 Secure the U-shaped clamps with flat washers and nuts.

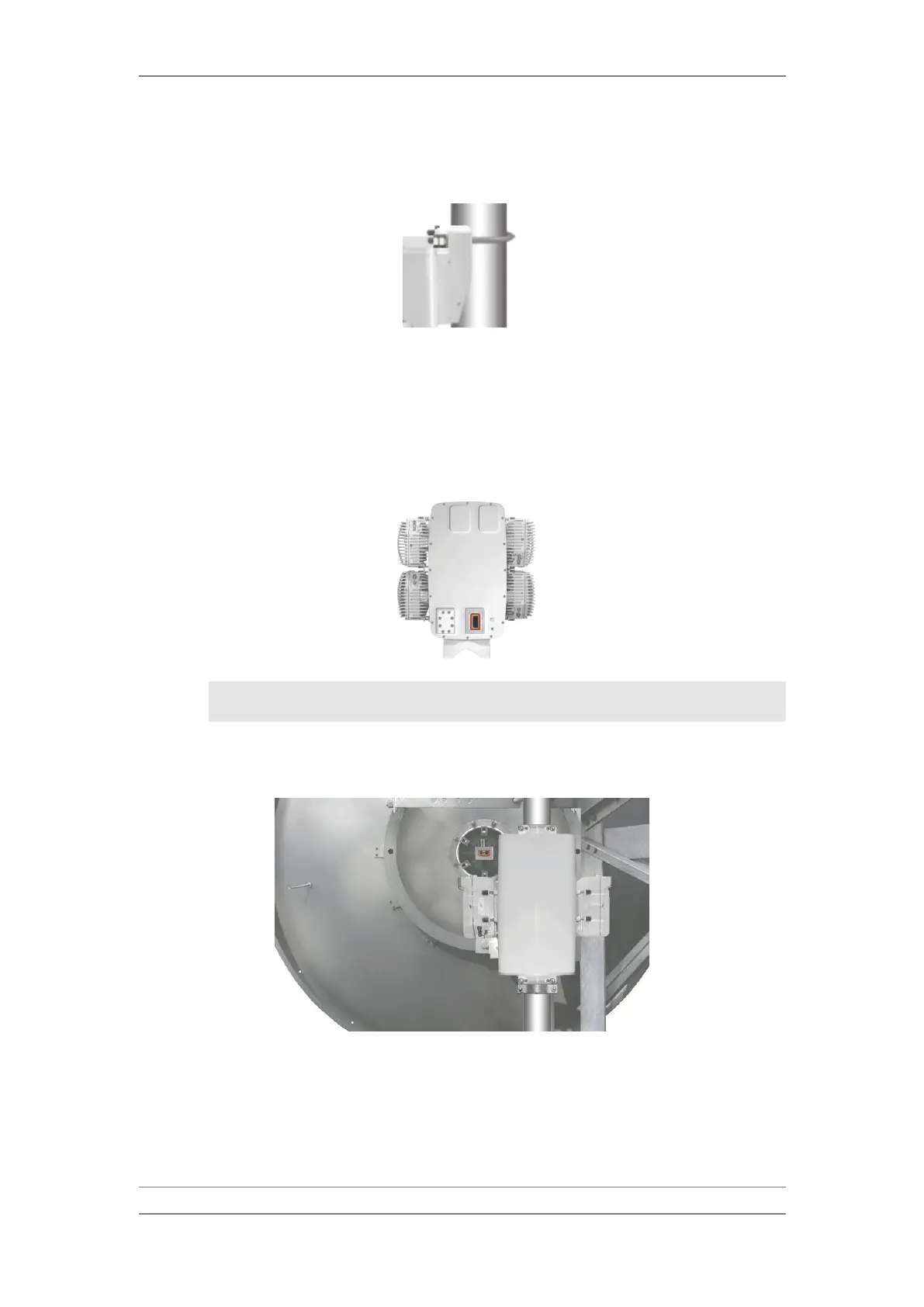

Securing U-Shaped Clamps
5 Secure the nuts with counter nuts.
6 Mount the flexible waveguide, as follows:
i Remove the waveguide flange cover plate on the bottom of the
branching box.
Removing Waveguide Flange Cover (one removed, one in place)
Note: The second waveguide is for use when installing dual
polarized antennas.
ii Remove the waveguide flange cover plate on the back of the antenna.
Removing Waveguide Flange Cover on Antenna
iii Apply gasket grease to the four gaskets.
