Evolution® IP-20LH Installation Guide
Ceragon Proprietary and Confidential Page 65 of 101
11 If there is a second IDU chassis in the equipment rack, connect fuse
number 2 to the power input socket of the PDC in the second chassis.

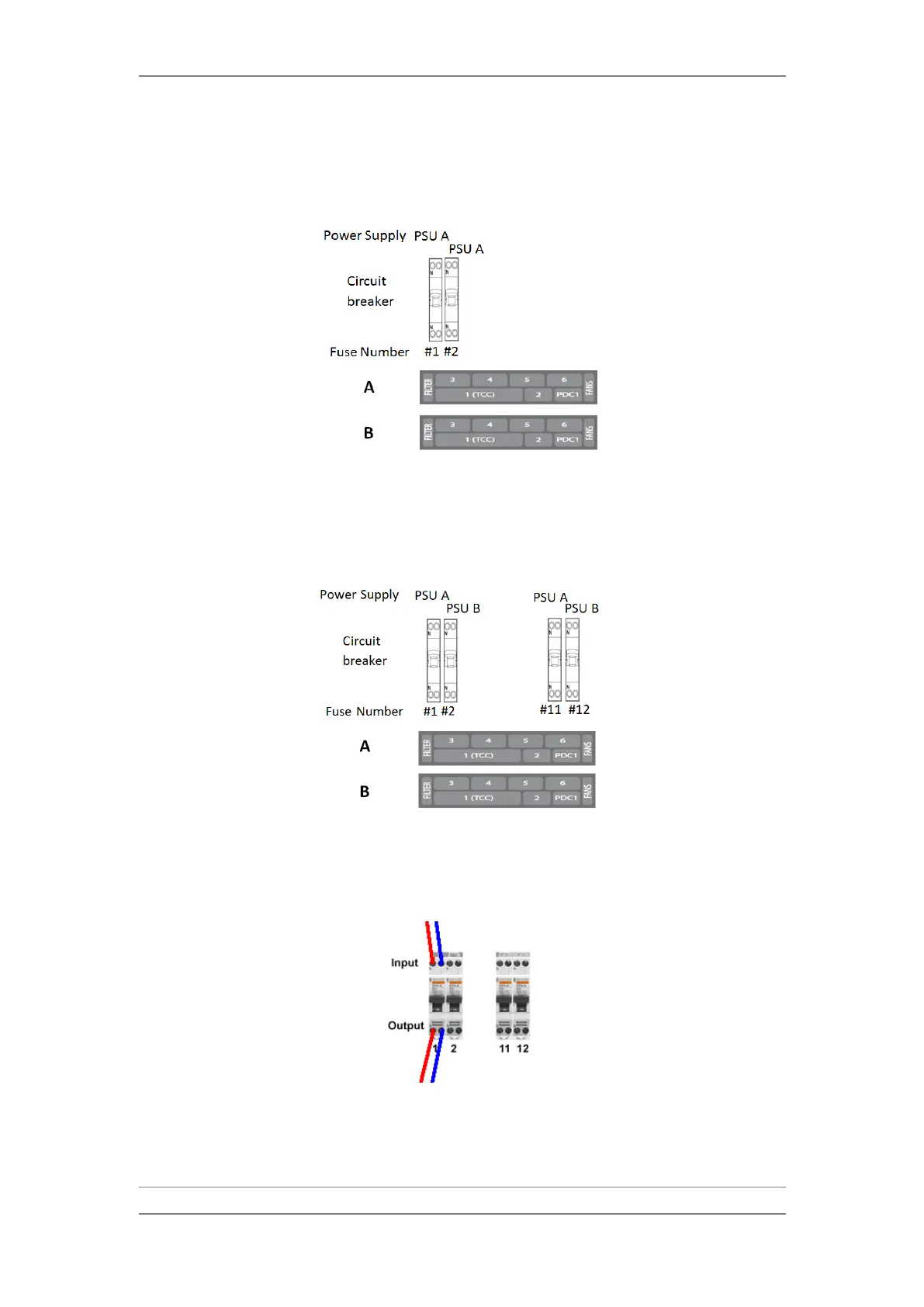

Two IDUs – Single Power Feed
12 If the PDCs have dual power feed, connect IDU power cables between fuse
number 11 and the power input socket of one PDC and between fuse
number 12 and the power input socket of the other PDC.
Two IDUs – Dual Power Feed
13 Using the optional power cable, part number AWZP36, connect the inputs
of fuse number 1 to a 48 VDC power source.
Single Power Source – Single IDU
