Evolution® IP-20LH Installation Guide
Ceragon Proprietary and Confidential Page 67 of 101

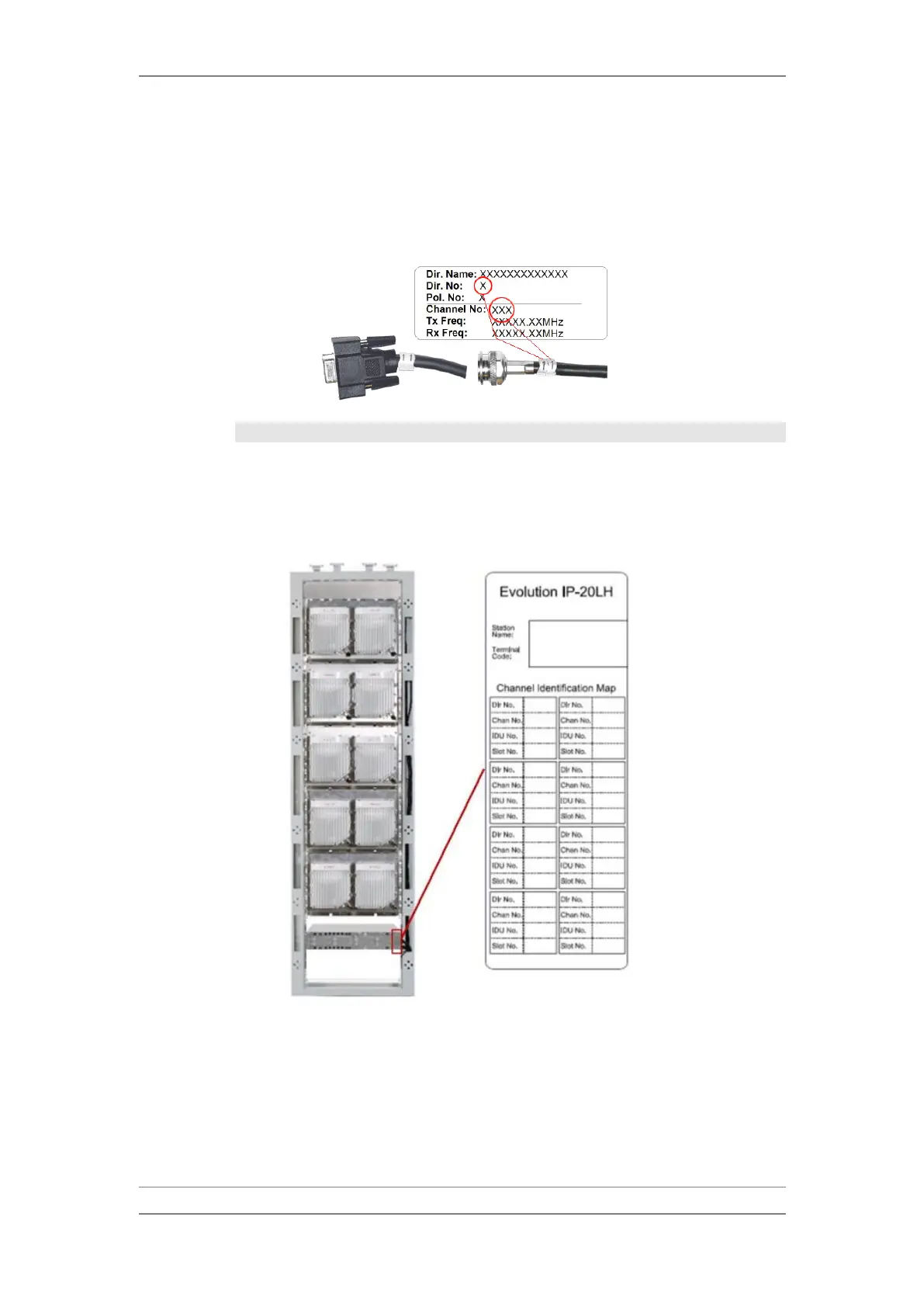

Cables - IDU power cables are marked on each end with the number of the
circuit breaker to which it is connected. XCVR-IDU cables are marked with
two digits on each end: The first is the system number (1 for the first
system in the rack, etc. The second digit is the channel number.
Cable Marking
Note: There are three different types of XCVR-IDU cable.
Channel Identification Map - This map is used for identification of the slot
number of the RMC-E in the IDU chassis versus Channel No. and Direction
No.
Channel Identification Map
