Evolution® IP-20LH Installation Guide
Ceragon Proprietary and Confidential Page 76 of 101

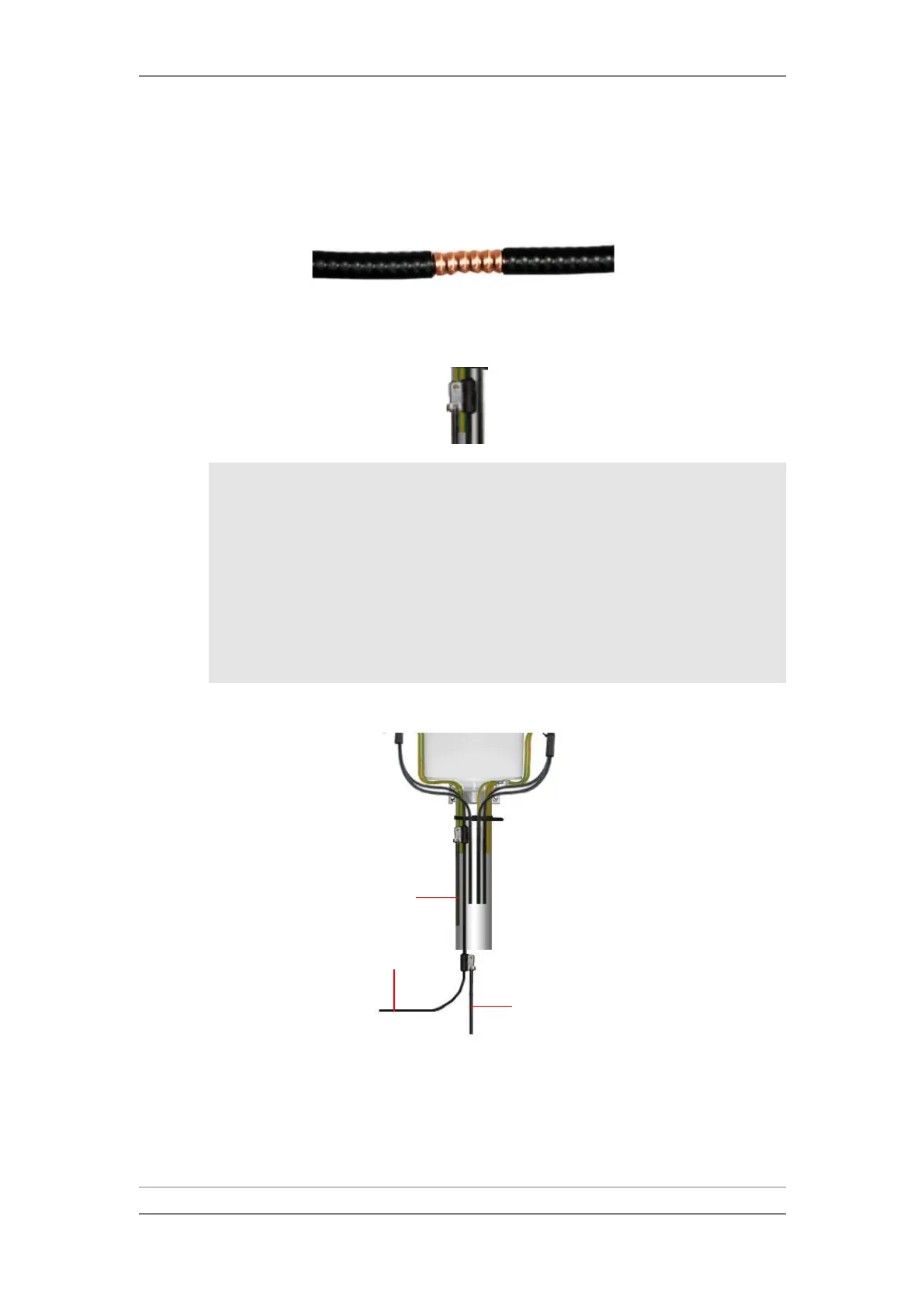

11 Perform earthing of the XCVR-IDU cables, as follows:
i Strip the IDU-XCVR cable insulation.
XCVR-IDU Cable - Bared
ii Mount the earthing kit on the bared cable.
Mounting Earthing Kit on XCVR-IDU Cable
Note: Mount the earthing kit on the cable near the cable inlet at
the station house/shelter.
It is recommended to mount an additional earthing kit
within 1m of the XCVR.
For long cable runs, mount additional cable earthing kits at
least every 50 meters.
The earthing cable pin is inserted vertically into the earth to
improve lightning protection.
Typical Earthing Kit Installation on XCVR-IDU Cable
(optional)
