Cessna 177 SERIES Service Manual

*
Castellated
nuts
and
pins
beginning
with aircraft serial 17701483
* Torque
to 70 -
100 Ib-in.;
*0 Torque to 160
- 190 lb-in.
/
f *Castellated
nuts and pins beginning
with aircraft
serial 17701964
and
all service parts 4
A
aA
D l
Detail
A
C
B
15
13
12
THRU
AIRCRAFT
SERIAL
17701164
<>^
M
n
'~
-
^
"12r- 8
15
14
13
DetaB
BEGINNING WITH
AIRCRAFT
SERIAL
1.
Stabilator
9.
Bearing
AIA17701165
2. Trim
Tab
10.
Retainer
(Bushing)
3. Spacer
11. Bolt
DetailC
4.
Push-Pull
Tube
12.
Bolt
5. Hinge 13. Control Arm Assembly
6. Hinge
Pin
14. Spacer
7. Cotter
Pin
15. Balance
Weight
8. Bulkhead
16. Balance
Weight
Arm

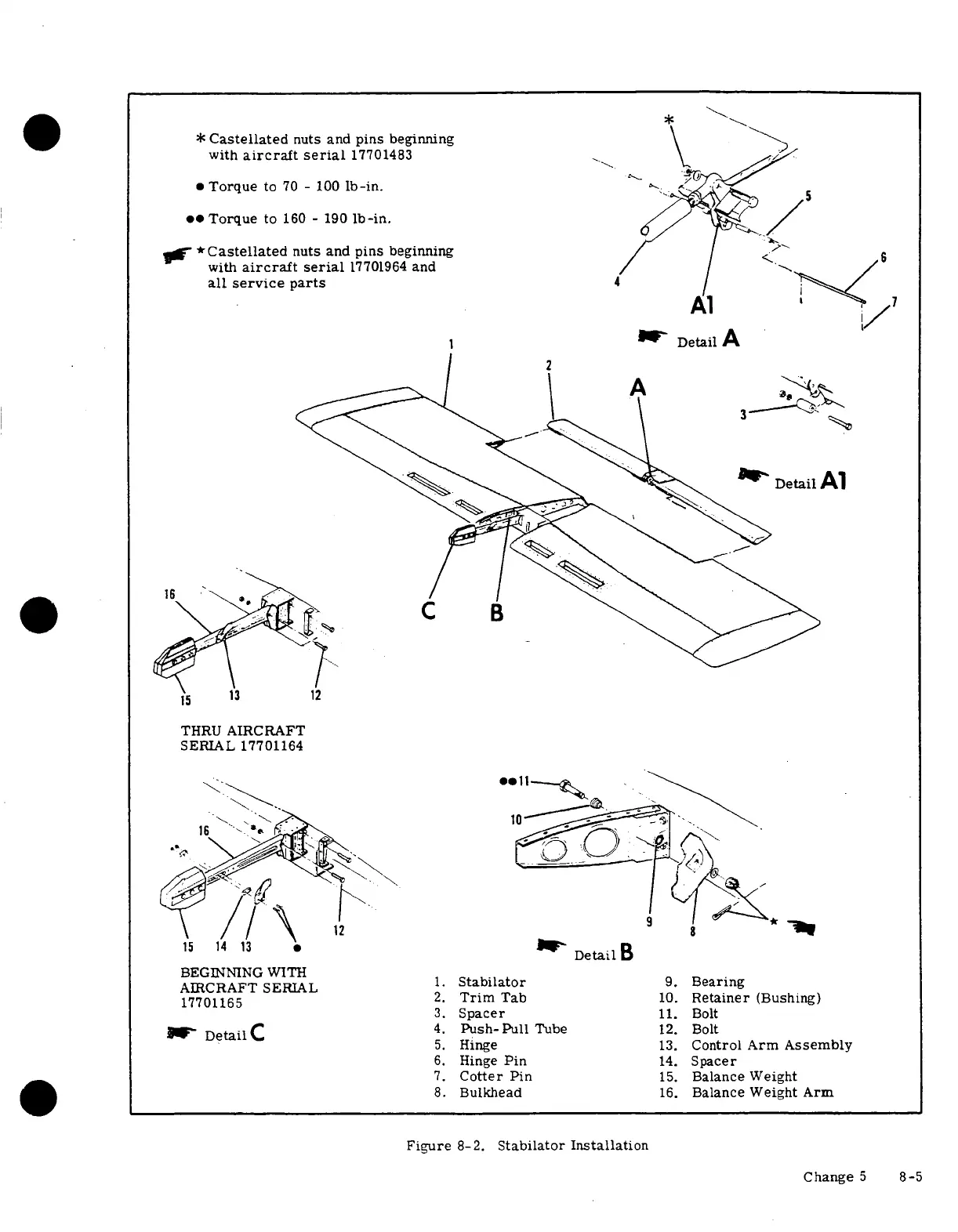

Figure
8-2. Stabilator
Installation
Change
5
8-5

Cessna 177 SERIES Specifications

General

Manufacturer	Cessna
Engine Type	Piston
Wingspan	35 ft 6 in (10.82 m)
Seating Capacity	4
Number Built	4, 295
Engine	Lycoming O-360
Horsepower	180 hp
Maximum Takeoff Weight	2, 500 lb (1, 134 kg)
