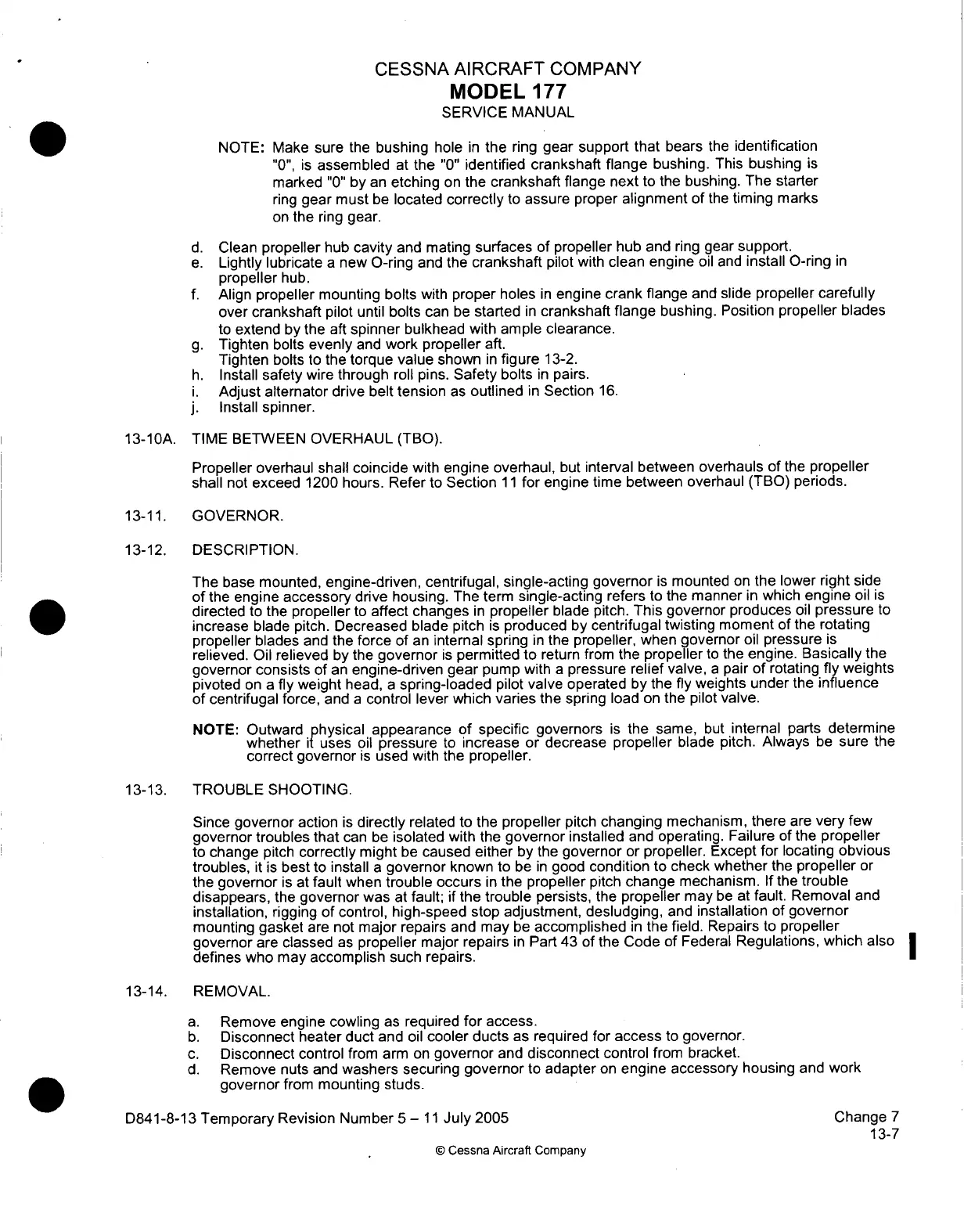

Page #206 background imageLoading...
Page #206 background image
CESSNA
AIRCRAFT
COMPANY
MODEL
177
SERVICE MANUAL
NOTE:
Make sure
the
bushing
hole
in
the
ring
gear
support
that
bears
the
identification
"0",
is
assembled
at
the
"0"
identified
crankshaft
flange
bushing.
This
bushing
is
marked
"0"
by
an
etching
on
the
crankshaft
flange
next
to
the
bushing.
The
starter
ring
gear
must
be
located
correctly
to
assure
proper
alignment
of
the
timing
marks
on
the ring
gear.
d.
Clean
propeller
hub
cavity
and mating
surfaces
of
propeller
hub and
ring
gear
support.
e.
Lightly lubricate
a
new
O-ring
and
the
crankshaft
pilot with
clean engine
oil
and
install
O-ring
in
propeller
hub.
f.
Align
propeller
mounting bolts
with
proper
holes
in
engine
crank
flange
and slide
propeller
carefully
over
crankshaft
pilot
until
bolts
can
be
started
in
crankshaft
flange
bushing.
Position
propeller blades
to
extend
by
the
aft
spinner
bulkhead
with
ample
clearance.
g.
Tighten
bolts
evenly
and
work
propeller
aft.
Tighten
bolts
to
the
torque
value
shown
in
figure
13-2.
h.
Install
safety
wire
through
roll
pins.
Safety
bolts
in
pairs.
i.
Adjust alternator
drive
belt
tension
as
outlined
in
Section
16.
j.
Install
spinner.
13-10A.
TIME BETWEEN
OVERHAUL
(TBO).
Propeller overhaul
shall
coincide
with
engine
overhaul,
but
interval between
overhauls
of
the
propeller
shall
not
exceed
1200
hours.
Refer
to
Section
1 1
for
engine
time between overhaul
(TBO)
periods.
13-11.
GOVERNOR.
13-12.
DESCRIPTION.
The
base
mounted,
engine-driven, centrifugal, single-acting
governor
is
mounted
on
the
lower
right
side
of
the
engine
accessory
drive
housing.
The
term
single-acting
refers
to
the
manner
in
which
engine
oil
is
directed
to
the
propeller
to
affect
changes
in
propeller
blade
pitch.
This
governor
produces
oil
pressure
to
increase
blade
pitch.
Decreased blade
pitch
is
produced
by
centrifugal twisting
moment
of
the
rotating
propeller
blades
and the
force
of
an
internal
spring
in
the
propeller,
when
governor
oil
pressure
is
relieved.
Oil
relieved
by
the
governor
is
permitted to
return
from
the
propeller
to
the
engine.
Basically
the
governor consists
of
an
engine-driven gear
pump
with
a
pressure
relief
valve,
a
pair
of
rotating fly
weights
pivoted
on
a
fly
weight
head,
a
spring-loaded
pilot
valve
operated
by
the
fly
weights
under
the
influence
of
centrifugal
force,
and
a
control
lever which
varies
the
spring
load
on
the
pilot
valve.
NOTE:
Outward
physical appearance
of specific
governors
is
the
same,
but
internal
parts
determine
whether
it
uses
oil
pressure
to
increase
or
decrease
propeller
blade pitch.
Always
be
sure
the
correct governor
is
used
with
the
propeller.
13-13.
TROUBLE
SHOOTING.
Since
governor
action
is
directly
related
to
the
propeller
pitch
changing
mechanism,
there
are
very
few
governor
troubles
that
can
be
isolated
with the
governor
installed
and
operating.
Failure
of
the
propeller
to
change
pitch
correctly
might
be
caused
either
by the
governor
or
propeller.
Except
for locating
obvious
troubles,
it is
best
to
install
a
governor
known
to
be
in
good
condition
to
check
whether
the
propeller
or
the
governor
is
at
fault
when
trouble
occurs
in
the
propeller
pitch
change
mechanism.
If
the
trouble
disappears,
the
governor
was
at
fault;
if
the
trouble
persists,
the
propeller
may
be
at
fault. Removal
and
installation,
rigging
of
control,
high-speed
stop
adjustment, desludging,
and
installation
of
governor
mounting
gasket
are
not
major repairs and may
be
accomplished
in
the
field.
Repairs
to
propeller
governor
are
classed
as
propeller
major
repairs
in
Part
43
of
the Code
of
Federal
Regulations,
which
also
defines
who may
accomplish
such
repairs.
13-14.
REMOVAL.
a.
Remove engine
cowling
as
required
for
access.
b.
Disconnect
heater
duct
and
oil
cooler ducts
as
required
for
access
to
governor.
c.
Disconnect
control
from
arm
on
governor
and
disconnect
control
from
bracket.
d.
Remove
nuts
and
washers securing
governor
to
adapter
on
engine
accessory
housing
and work
governor
from
mounting
studs.
D841-8-1
3
Temporary
Revision
Number
5
-11 July
2005
Change
7
13-7
©Cessna
Aircraft
Company
