DOUBLER
-
2024-T4
ALCLAD
1/4"
EDGE
MARGIN-
-
>
"h
-
RIVET
SPACING
TO
MATCH
PATTERN
IN
SKIN
6
RIVETS
EACH
SIDE yo'
-:
STRINGER
OF
DAMAGED
AREA
CLEAN
OUT
DAMAGED AREA/
FILLER
2024-T4
ALCLAD
A-A
MS20470AD4
RIVETS
SKIN
ORIGINAL
PARTS
REPAIR
PARTS
REPAIR
PARTS
IN
CROSS
SECTION

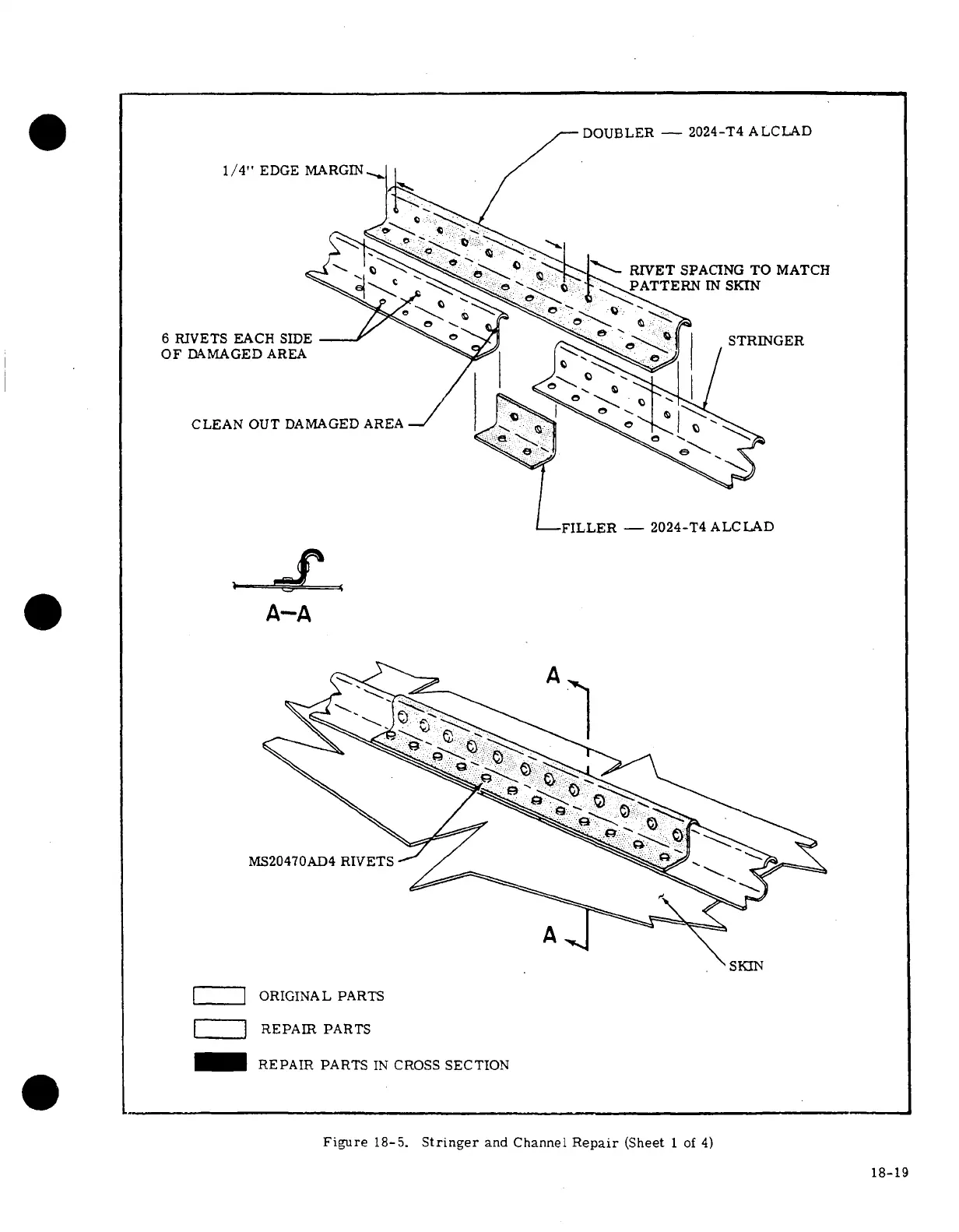

Figure
18-5.
Stringer
and
Channel
Repair
(Sheet
1
of
4)
18-19
