Cessna 177 SERIES Service Manual

1/4"
EDGE
MARGIN
CLEAN
OUT DAMAGED
AREA
A-A
ANGLE-
2024-T4
ALCLAD
10 RIVETS
EACH
SIDE
OF
DAMAGED
AREA
|
FIREWALL
ANGLE
FILLER-
2024-T4
ALCLAD
.
:":.
::-
,
AN470AD4
RIVETS
--- FIREWALL
A J|
-----
FUSELAGE
SKIN
ORIGINAL PARTS
REPAIR
PARTS
REPAIR
PARTS IN CROSS
SECTION

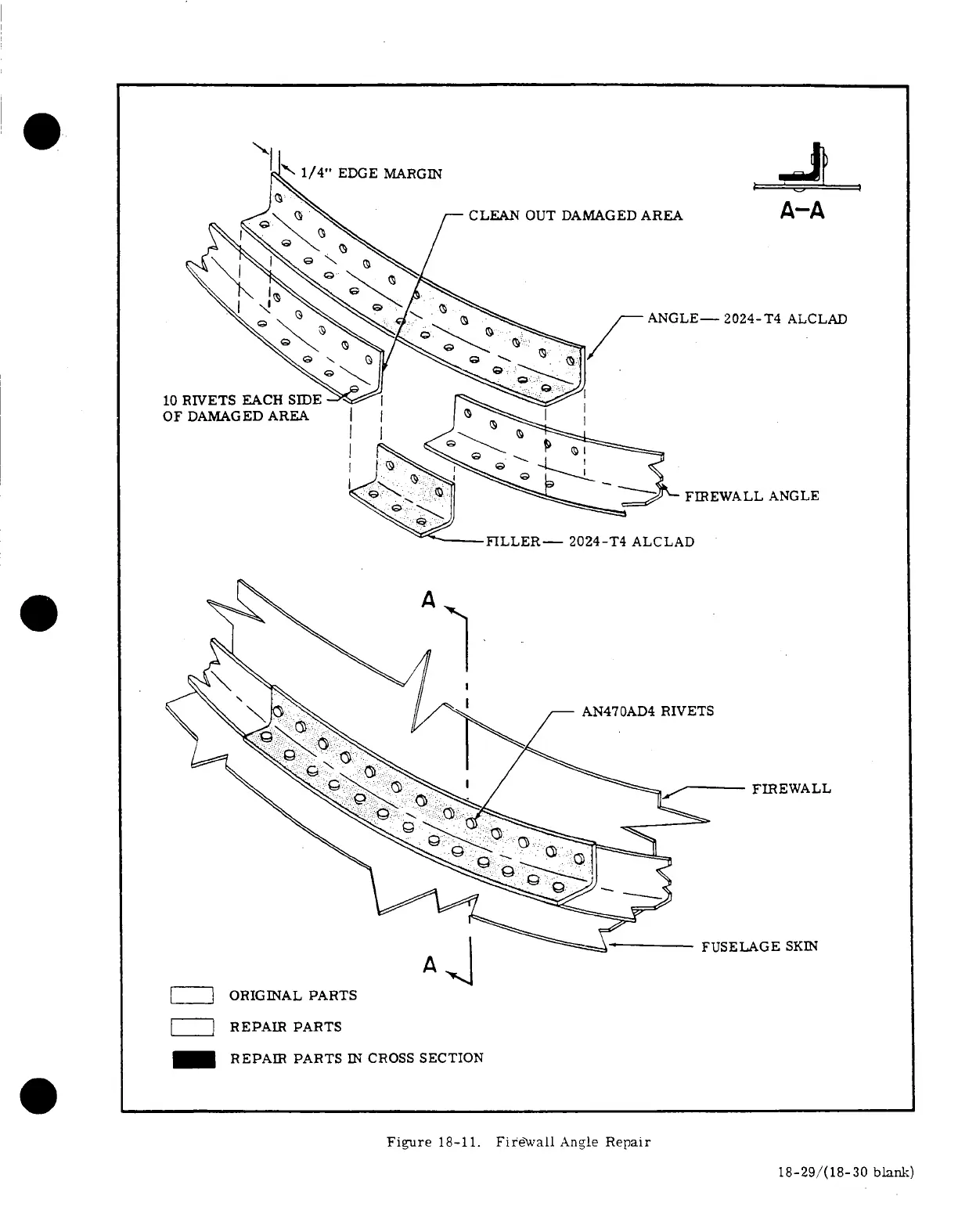

Figure
18-11.
FirewAall
Angle
Repair
18-29/(18-30
blank)
