Cessna 177 SERIES Service Manual

1" MAXIMUM
RIVET SPACING
o 0
,^ , ,.,,.^ ^ ^^0
1/4"
MINIMUM
EDGE
MARGIN
?+
:
A"
A/°S
€
~ 0 TRIM OUT DAMAGED AREA
:S~~
-FLAP LEADING EDGE SKIN
REPAIR DOUBLER
TO BUTT
. AT TOP AND BOTTOM OF FLAP
1/4" MINIMUM EDGE MARGIN S
DOUBLER - 2024-T3 ---
A LCLAD. 020
.. FLUSH PATCH SIMILAR
TO THIS MAY BE USED
:O
IF
NEEDED.
1/8"
DIA. RIVETS
ORIGINAL
PARTS
REPAIR
PARTS

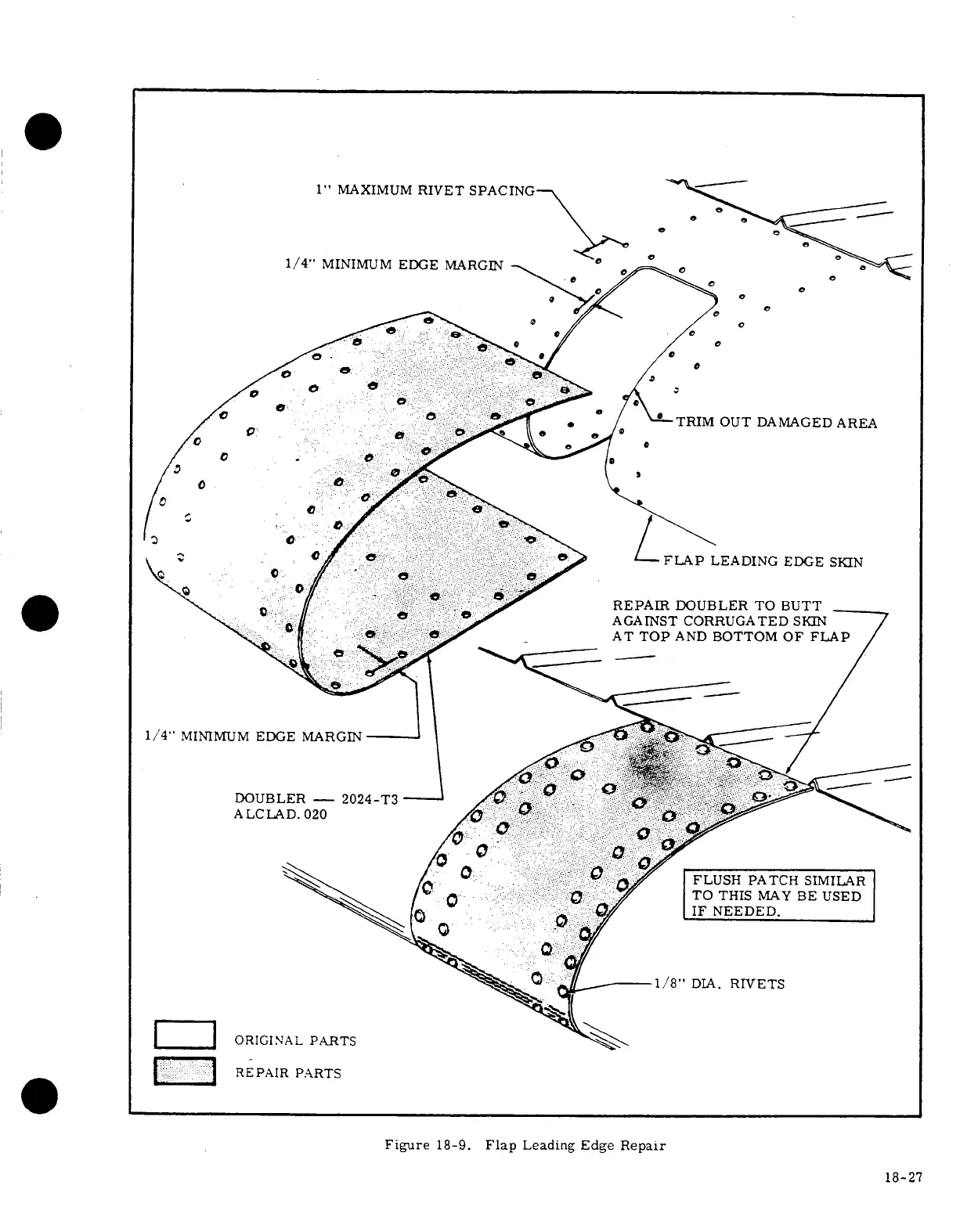

Figure 18-9. Flap Leading Edge Repair
18-27

Cessna 177 SERIES Specifications

General

Manufacturer	Cessna
Engine Type	Piston
Wingspan	35 ft 6 in (10.82 m)
Seating Capacity	4
Number Built	4, 295
Engine	Lycoming O-360
Horsepower	180 hp
Maximum Takeoff Weight	2, 500 lb (1, 134 kg)
