Cessna 177 SERIES Service Manual

CAUTION
REFER
TO
PARAGRAPH
18-42
BEFORE
INSTALLING
ON
THE
WING.
0
--
S-1443-1
DOUBLER
VIEWED
FROM
INSIDE
WING
LOOKING
DOWN
IAT TOP
OF LOWER
,
'
WWING
SKIN.
#40
(.098)
HOLE
(10
REOD)
Q
O W
----
LOWER WING SKIN
(REF)
5.062
DIA-
S-225-4F
COVER
\4e I
hi[d O-y- MS20426AD3
RIVETS
NOTE
PARTS
ARE
AVAILABLE
FROM
THE
CESSNA
SERVICE
PARTS CENTER.
Al-
---------
-
-----
S-1022Z-8-6
SCREWS
a.
Establish
exact
location
for
inspection
cover
and
inscribe
centerlines.
b. Determine
position
of
doubler
on
wing
skin
and
center
over
centerlines.
Mark
the
ten
rivet
hole
locations
and
drill
to
size
shown.
c.
Cutout
access
hole,
using
dimension
shown.
d.
Flex
doubler
and
insert
through
access
hole
and
rivet
in
place.
e. Position
cover
and
secure,
using
screws
as shown.

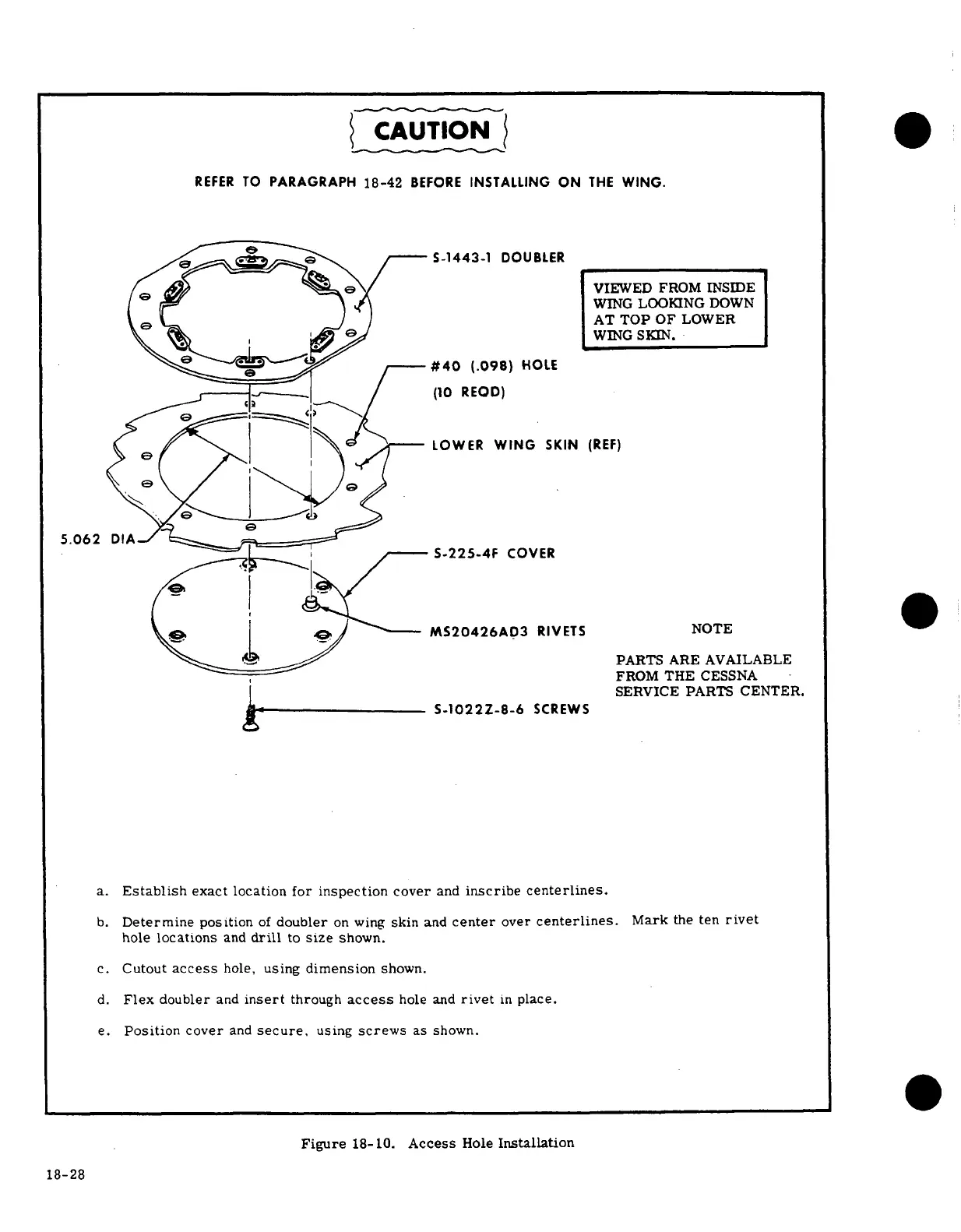

Figure
18-10.
Access
Hole
Installation
18-28
