Cessna 177 SERIES Service Manual

NOTE
Torque
studs
(5) evenly
to
55-65 Ib-ft.
Bulkhead
(2) is riveted
to spinner dome (1).
Be
sure that grommet
is installed in
bulk-
head (2).
9
10
Install shim (7) with bevel next to aft spinner
bulkhead
(8)
to
allow
positive
fit.
'o -
^'^7
l
\
7
6
1
\4.
/1 - ^^/
n
NOTE
AIRCRAFT
SERIALS 17701371
THRU
17701701 AND
17701704
Index propeller
blades
in the first
hole clockwise
(CW)
from the
top center
(TC) mark
located on
the aft side
of
the ring
gear (as
viewed from
front
of engine).
)t AIRCRAFT
SERIALS
17701702
AND 17701703;
17701705
AND
ON
1. Spinner
Index
propeller blades
in line with
top center
(TC) mark located
2.
Spinner Bulkhead
on the
aft side of the
ring gear (as
viewed from front
of engine).
3. Propeller Cylinder
4. Propeller
5. Stud
6. O-Ring
7. Shim
8. Aft Spinner Bulkhead
9.
Starter Ring
Gear Support
10. Engine Crankshaft
11. Grommet
BEGINNING WITH
AIRCRAFT SERIAL
17701371

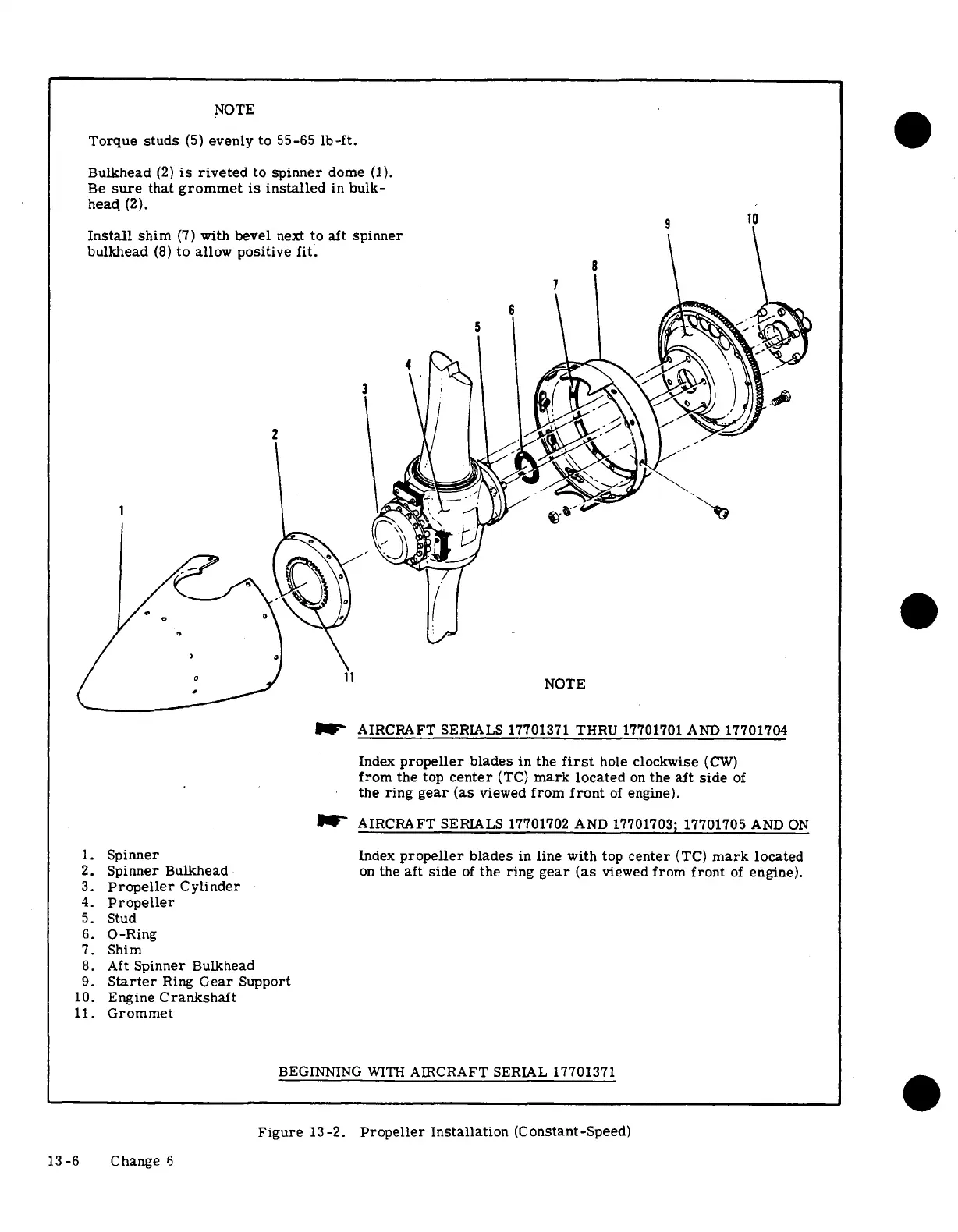

Figure
13-2. Propeller
Installation (Constant-Speed)
13-6
Change
6
