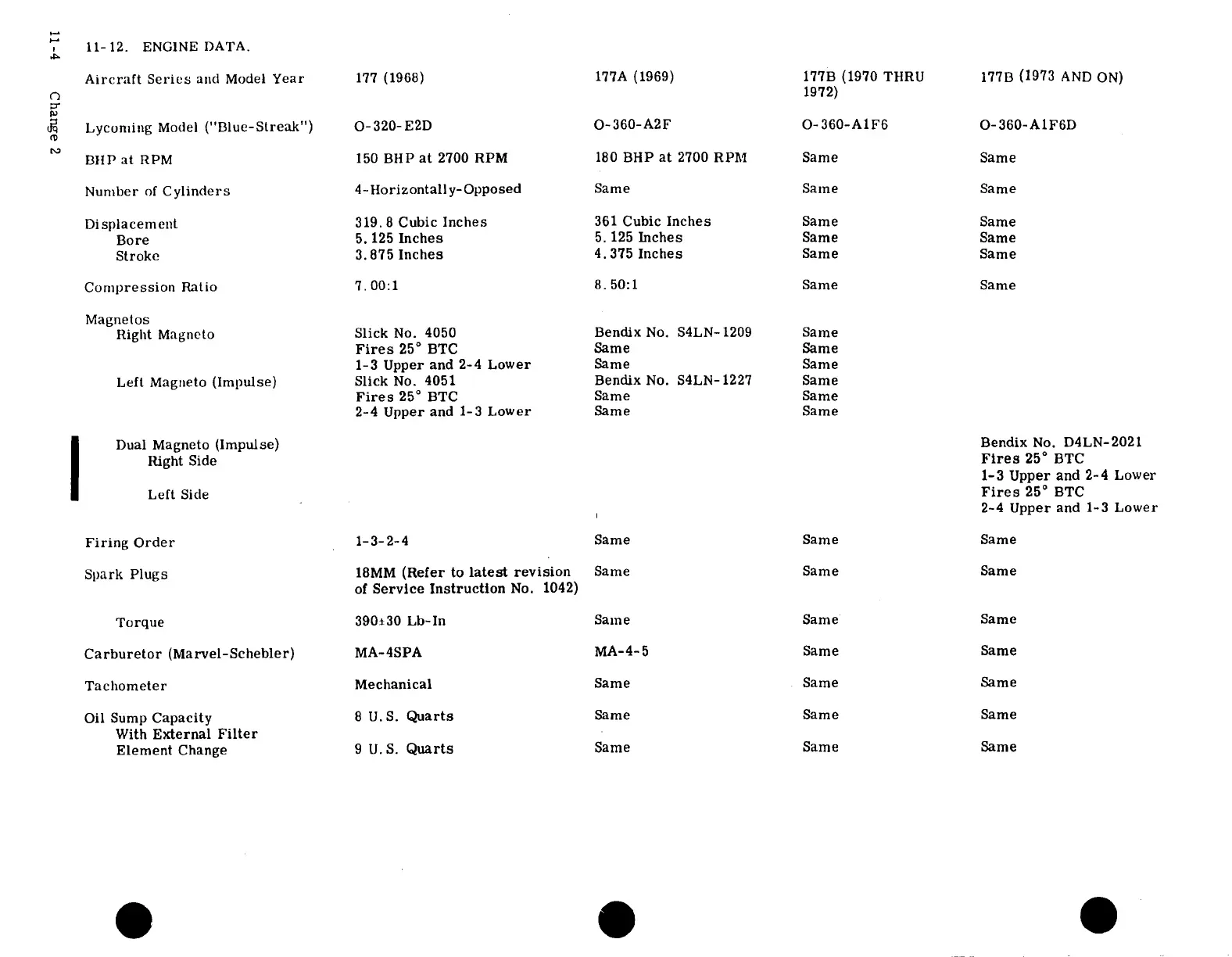

Cessna 177 SERIES Service Manual

11-12.
ENGINE
DATA.
Aircraft
Series
and
Model Year
177 (1968)
177A (1969)
177B
(1970 THRU
177B
(1973 AND
ON)
-n
1972)
Lyconing
Model
("Blue-Streak")
O-320-E2D
O-360-A2F
O-360-A1F6
O-360-A1F6D
BlIP
at RPM
150
BHP at
2700 RPM
180 BHP
at 2700
RPM
Same
Same
Number
of Cylinders
4-Horizontally-Opposed
Same
Same
Same
Displacement
319.8
Cubic Inches
361
Cubic
Inches
Same
Same
Bore
5.
125 Inches
5. 125
Inches
Same
Same
Stroke
3.875
Inches
4.375 Inches
Same
Same
Compression
Ratio
7.00:1
8.50:1
Same
Same
Magnetos
Right
Magneto
Slick
No.
4050
Bendix
No. S4LN-1209
Same
Fires
25
°
BTC
Same
Same
1-3 Upper
and
2-4 Lower
Same
Same
Left Magneto
(Impulse)
Slick
No.
4051
Bendix
No.
S4LN-1227
Same
Fires
25
°
BTC
Same
Same
2-4 Upper
and
1-3 Lower
Same
Same
Dual
Magneto
(Impulse)
Bendix
No.
D4LN-2021
Right
Side
Fires
25
°
BTC
1-3 Upper
and 2-4
Lower
Left Side
Fires 25
°
BTC
2-4
Upper and
1-3 Lower
Firing
Order
1-3-2-4
Same
Same
Same
Spark
Plugs
18MM
(Refer
to latest
revision
Same
Same
Same
of Service Instruction
No.
1042)
Torque
390±30
Lb-In
Same
Same
Same
Carburetor
(Marvel-Schebler)
MA-4SPA
MA-4-5
Same
Same
Tachometer
Mechanical
Same
Same
Same
Oil
Sump
Capacity
8
U.S. Quarts
Same
Same
Same
With External Filter
Element
Change
9 U.S.
Quarts
Same
Same
Same
*
S
0

Cessna 177 SERIES Specifications

General

Manufacturer	Cessna
Engine Type	Piston
Wingspan	35 ft 6 in (10.82 m)
Seating Capacity	4
Number Built	4, 295
Engine	Lycoming O-360
Horsepower	180 hp
Maximum Takeoff Weight	2, 500 lb (1, 134 kg)
