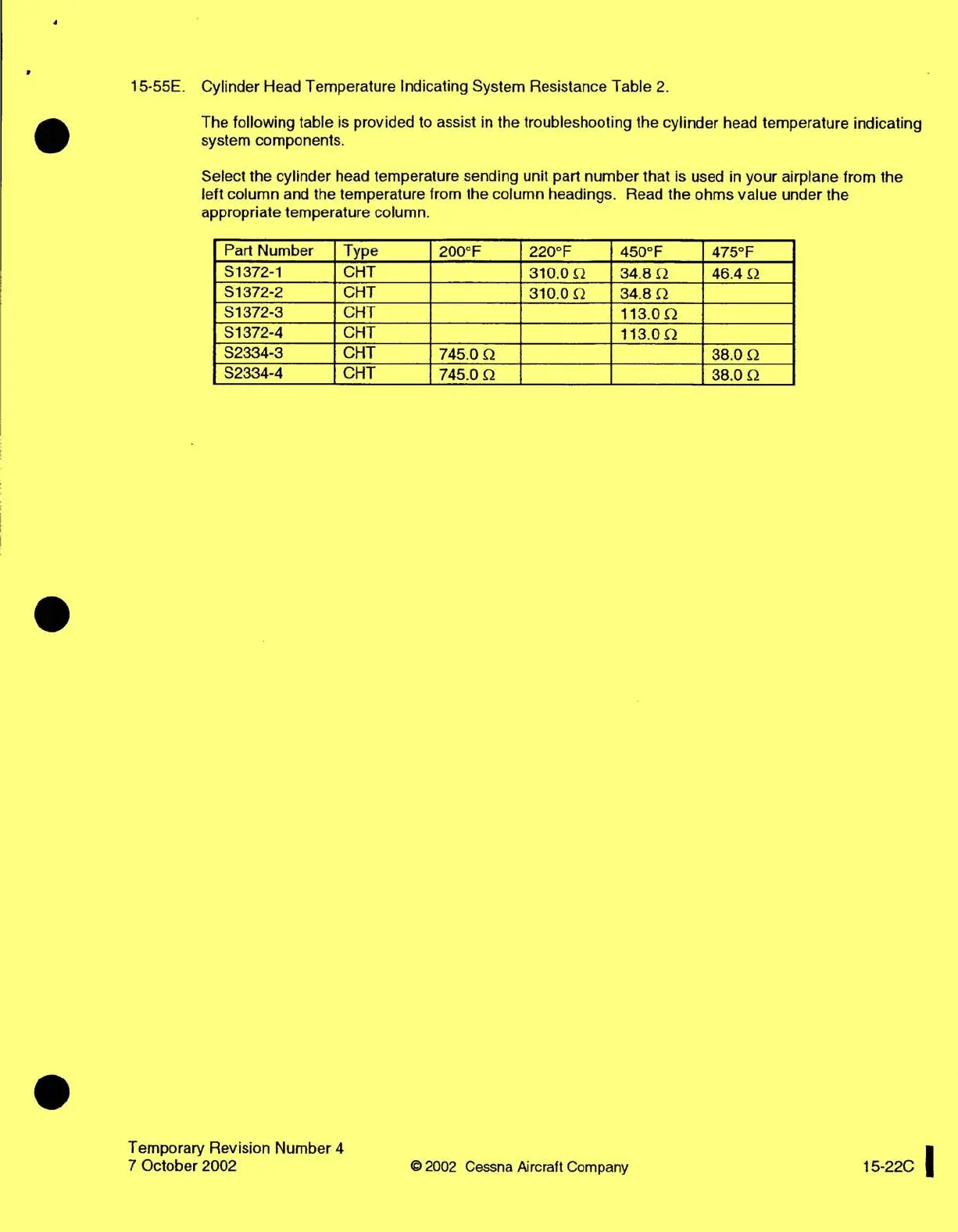

Cessna 177 SERIES Service Manual

15-55E. Cylinder
Head Temperature
Indicating
System Resistance
Table 2.
The
following table
is provided
to assist in the
troubleshooting
the cylinder
head temperature
indicating
system components.
Select the
cylinder head temperature
sending unit part
number that is used
in your airplane from
the
left column
and the temperature
from the column
headings. Read
the ohms value
under the
appropriate
temperature
column.
Part
Number Type
200°F
220°F
450°F
475°F
S1372-1
CHT
310.0
34.8 46.4
S1372-2
CHT
310.0
34.8
S1372-3
CHT
113.0
S1372-4
CHT
113.0
S2334-3
CHT
745.0
38.0
S2334-4
CHT
745.0
38.0
Temporary
Revision Number
4
7 October
2002
© 2002 Cessna
Aircraft Company
15-22C

Cessna 177 SERIES Specifications

General

Manufacturer	Cessna
Engine Type	Piston
Wingspan	35 ft 6 in (10.82 m)
Seating Capacity	4
Number Built	4, 295
Engine	Lycoming O-360
Horsepower	180 hp
Maximum Takeoff Weight	2, 500 lb (1, 134 kg)
