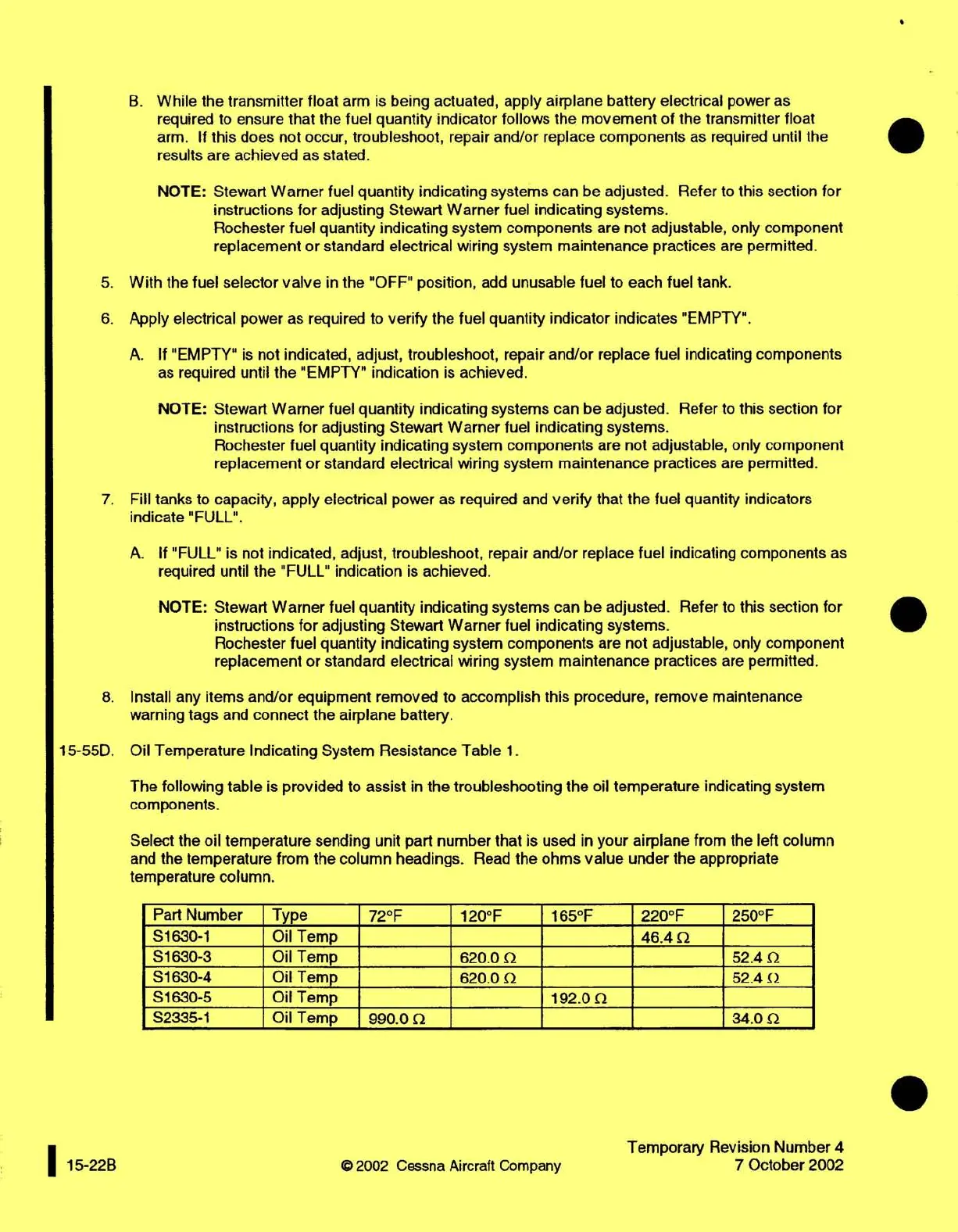

B.
While
the
transmitter
float
arm
is
being
actuated,
apply
airplane
battery
electrical
power
as
required
to
ensure
that the
fuel quantity indicator
follows
the
movement of
the
transmitter
float
arm.
If
this
does
not
occur,
troubleshoot,
repair
and/or replace
components
as
required
until
the
results
are
achieved
as
stated.
NOTE:
Stewart
Warner
fuel
quantity
indicating
systems
can
be
adjusted.
Refer
to
this section
for
instructions
for
adjusting
Stewart
Warner
fuel
indicating
systems.
Rochester
fuel
quantity
indicating
system
components
are
not
adjustable,
only component
replacement
or
standard
electrical
wiring
system
maintenance
practices
are
permitted.
5.
With
the
fuel selector
valve
in
the "OFF"
position,
add
unusable
fuel
to
each fuel
tank.
6.
Apply
electrical
power
as
required
to
verify
the
fuel quantity indicator indicates
"EMPTY".
A.
If
"EMPTY"
is
not
indicated,
adjust,
troubleshoot, repair
and/or
replace
fuel
indicating components
as
required
until
the
"EMPTY"
indication
is
achieved.
NOTE:
Stewart
Warner
fuel
quantity indicating
systems
can
be
adjusted.
Refer
to
this section
for
instructions
for
adjusting
Stewart
Warner
fuel
indicating
systems.
Rochester fuel
quantity
indicating
system
components
are
not
adjustable,
only
component
replacement
or
standard
electrical
wiring
system
maintenance
practices
are
permitted.
7.
Fill
tanks
to
capacity,
apply
electrical
power
as
required
and
verify
that
the
fuel
quantity
indicators
indicate
"FULL".
A.
If
"FULL"
is
not
indicated,
adjust,
troubleshoot,
repair
and/or
replace
fuel
indicating components
as
required
until
the
"FULL"
indication
is
achieved.
NOTE:
Stewart
Warner
fuel
quantity indicating
systems
can
be
adjusted.
Refer
to
this
section
for
instructions
for
adjusting
Stewart
Warner
fuel
indicating systems.
Rochester
fuel quantity
indicating
system
components
are
not
adjustable,
only
component
replacement
or
standard
electrical
wiring system
maintenance
practices
are
permitted.
8.
Install
any
items
and/or equipment
removed
to
accomplish
this
procedure,
remove
maintenance
warning
tags
and
connect
the
airplane
battery.
15-55D.
Oil
Temperature
Indicating
System
Resistance Table
1.
The following table
is
provided
to
assist
in
the
troubleshooting
the
oil
temperature
indicating
system
components.
Select
the
oil
temperature
sending unit
part
number
that
is
used
in
your airplane
from the
left column
and
the
temperature
from
the
column
headings.
Read
the
ohms
value
under the
appropriate
temperature
column.
Part
Number
Type
72°F
120°F
165°F
220°F
250°F
S1630-1
Oil
Temp
46.4
S1630-3
Oil
Temp 620.0
52.4
S1630-4
Oil
Temp
620.0
52.4
S1630-5
Oil
Temp
192.0
S2335-1
Oil
Temp
990.0
34.0
.
Temporary
Revision
Number
4
15-22B
©
2002
Cessna Aircraft Company
7
October
2002

Table of Contents
