Cessna 177 SERIES Service Manual

20
H4
5
6
THRU
1977
MODELS
/
15
il
* BEGINNING
WITH
17701634
O
1.
Filter - Radio Noise
/
I
2.
Wire
to Master
Switch
G
3. Shields-
Ground
5
1
X
4. Firewall
Shield
\
/
\
6. Voltage
Regulator
\
\\
\\
7. Wire
to Ground
n n \
/
\\
8.
Housing Plug
/ \\
9. Wire
to Alternator
Ground
\
10. Wire
to Alternator
"F"
11.
Wire
to Alternator
"A+"
8
12. Wire
to Filter
N 13.
Wire to
Over-Voltage
Light
\
14
14. Housing Cap
15.
Wire
to
LDG/TAXI
Light
Switch
BEGINNING
WITH
1978 MODELS

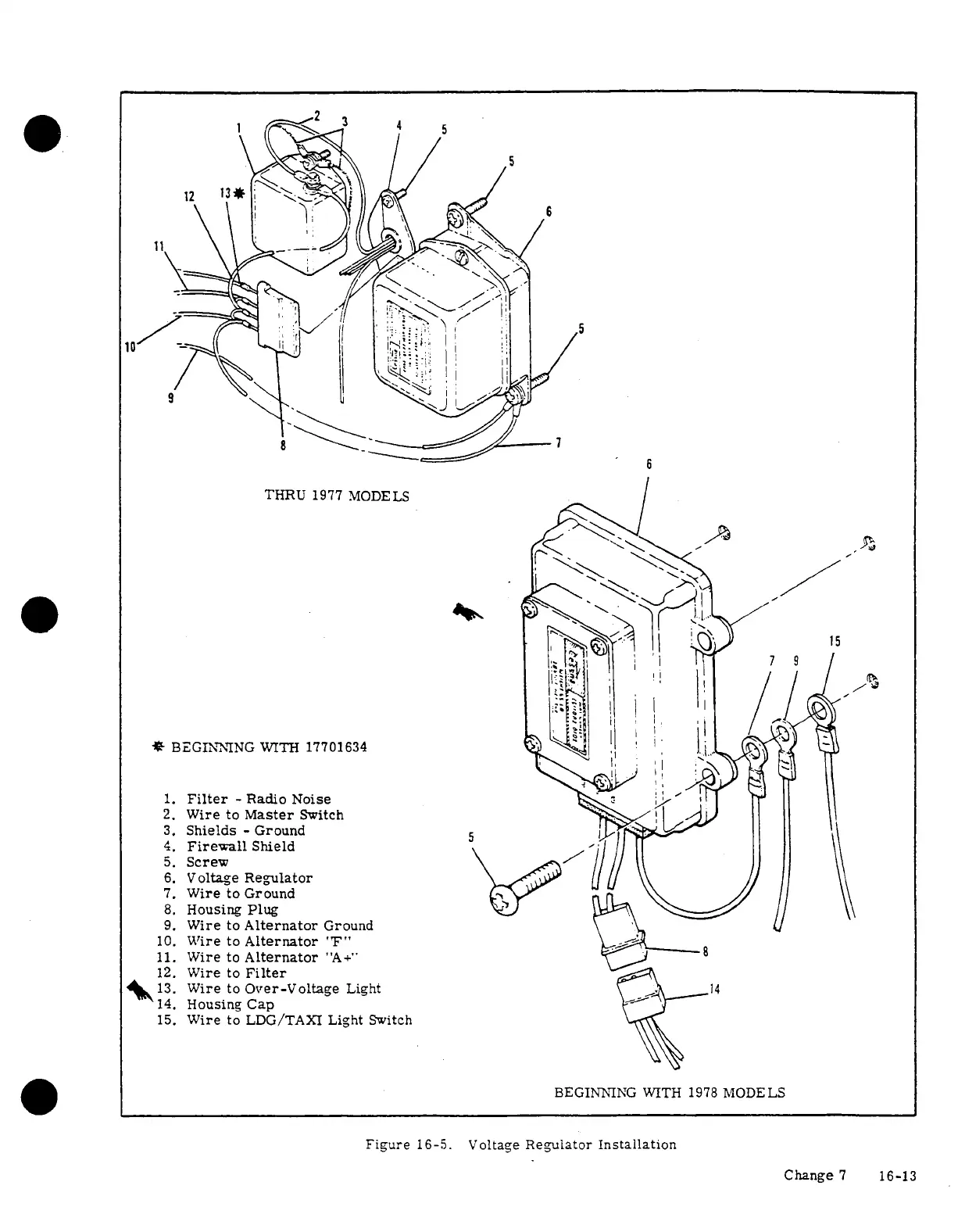

Figure 16-5.
Voltage Regulator
Installation
Change 7 16-13
